ASKEY COMPUTER CORPORATION

Chapter 3. The Askey 5G NR Small Cell Admin Website

NR xCell 46116A User Guide 54

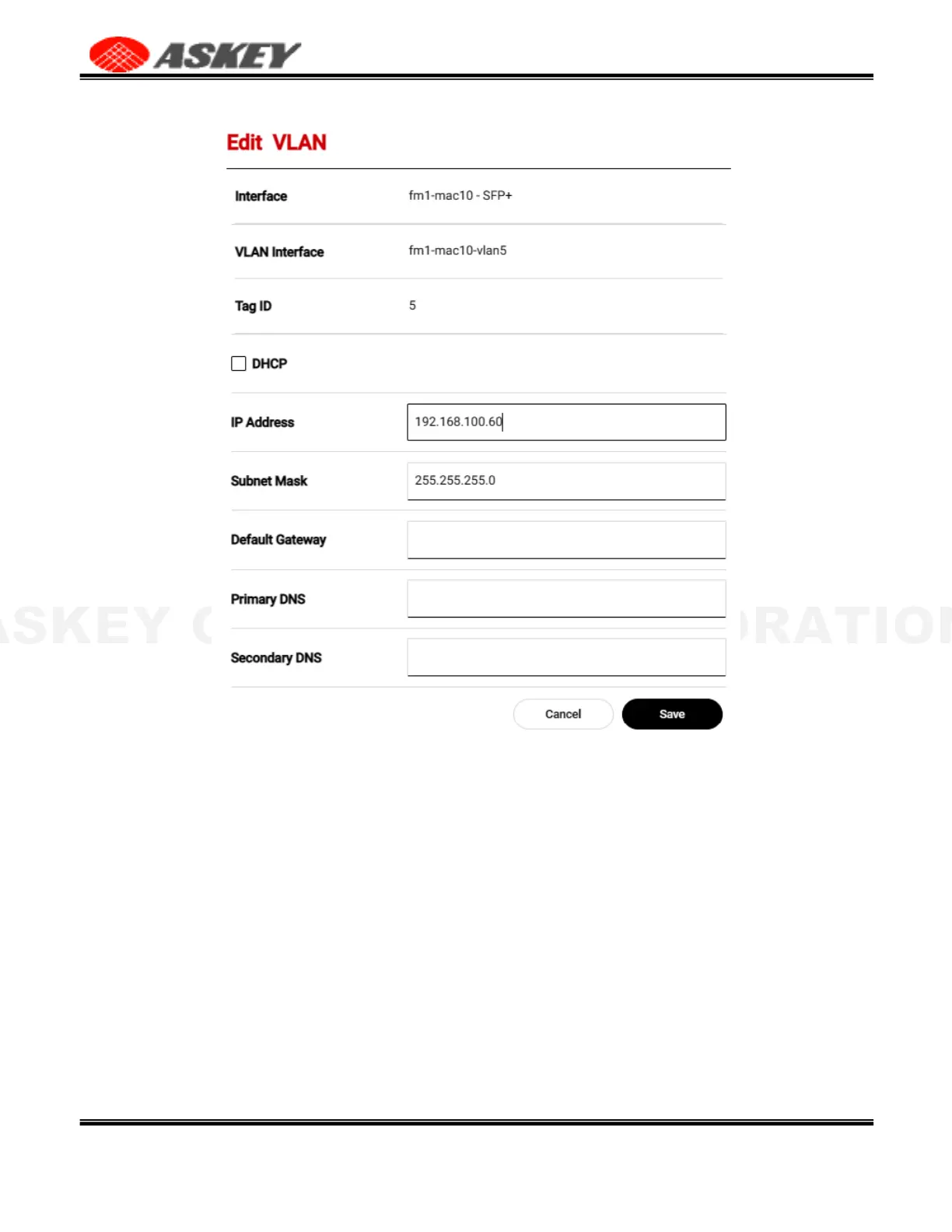

In addition, if the VLAN tag ID has existed in the create operation, it will become an update operation that

will update the previous VLAN configuration with the tag ID.

Click the Delete button in the VLAN list will delete the specified VLAN configuration. It doesn't need to

restart the device for the delete operation.

Figure 49. The Askey 5G NR Small Cell VLAN Page – Delete Operation
