ASKEY COMPUTER CORPORATION

Chapter 3. The Askey 5G NR Small Cell Admin Website

NR xCell 46116A User Guide 43

For the NR ARFCN, the Admin Website provide some profile options, and the recommended values will

be filled in the related items. For the more configurations, you can read the Chapter “The Recommend NR

ARFCN Configuration” in the bottom of this document.

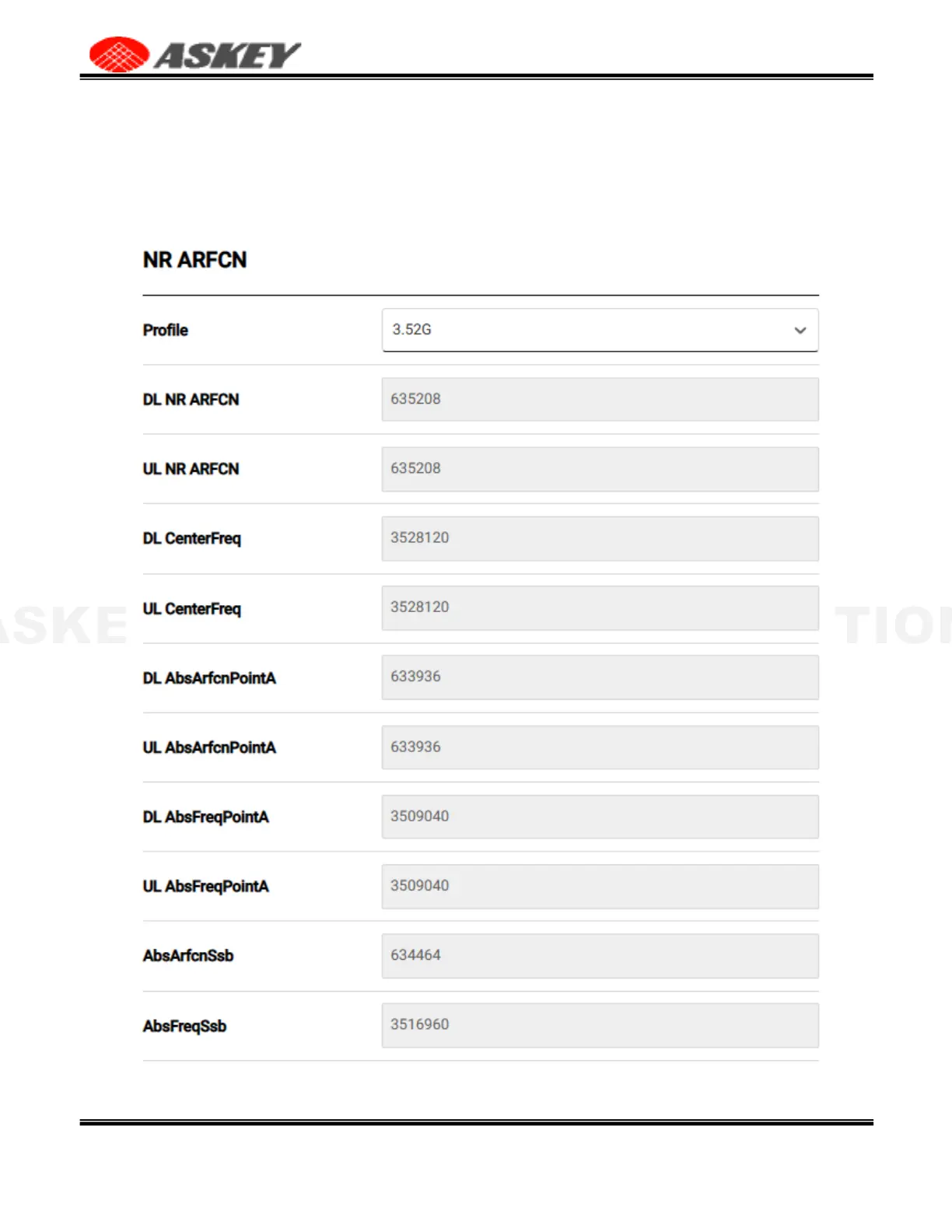

Figure 40. The Askey 5G NR Small Cell DU Configuration – NR ARFCN
