ASKEY COMPUTER CORPORATION

Chapter 3. The Askey 5G NR Small Cell Admin Website

NR xCell 46116A User Guide 23

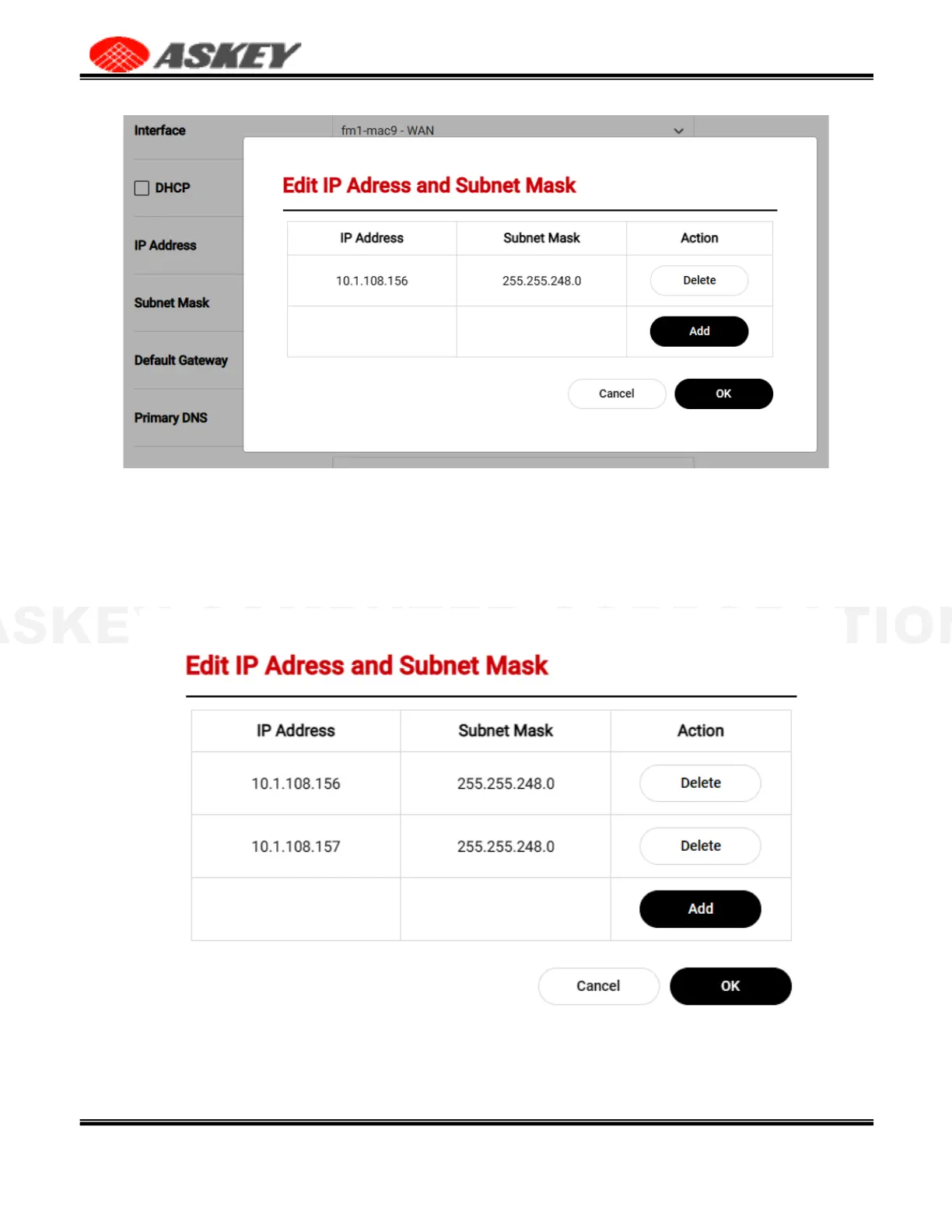

The IP address and subnet mask value can be modified directly on the dialog window, and remove the

item by clicking the Delete button. If you want to add a new item, click the Add button and edit the

configuration.

Figure 24. Add a new Item in Static IP Addresses Dialog Window
