ASKEY COMPUTER CORPORATION

Chapter 3. The Askey 5G NR Small Cell Admin Website

NR xCell 46116A User Guide 21

3.4 Settings

3.4.1 Network

From the Askey 5G NR Small Cell Network page, you can check and modify the detailed network settings.

The settings will be effective immediately without rebooting.

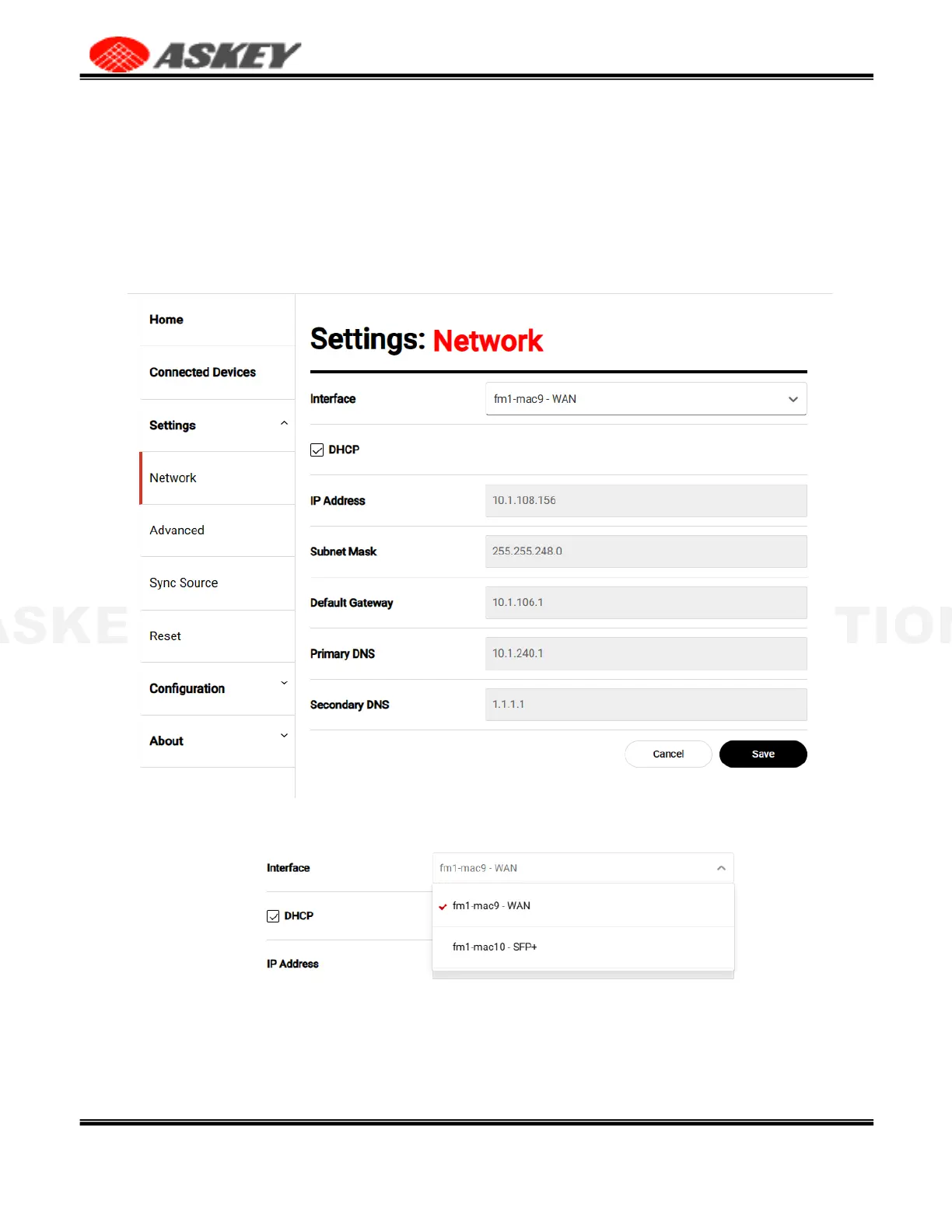

Figure 21. The Askey 5G NR Small Cell Network Page

If the device has the multiple network interfaces, you can choose the interface by clicking the select bar

as the following illustration:

Figure 22. The Askey 5G NR Small Cell Network Page for the 2

Interface
