ASKEY COMPUTER CORPORATION

Chapter 3. The Askey 5G NR Small Cell Admin Website

NR xCell 46116A User Guide 52

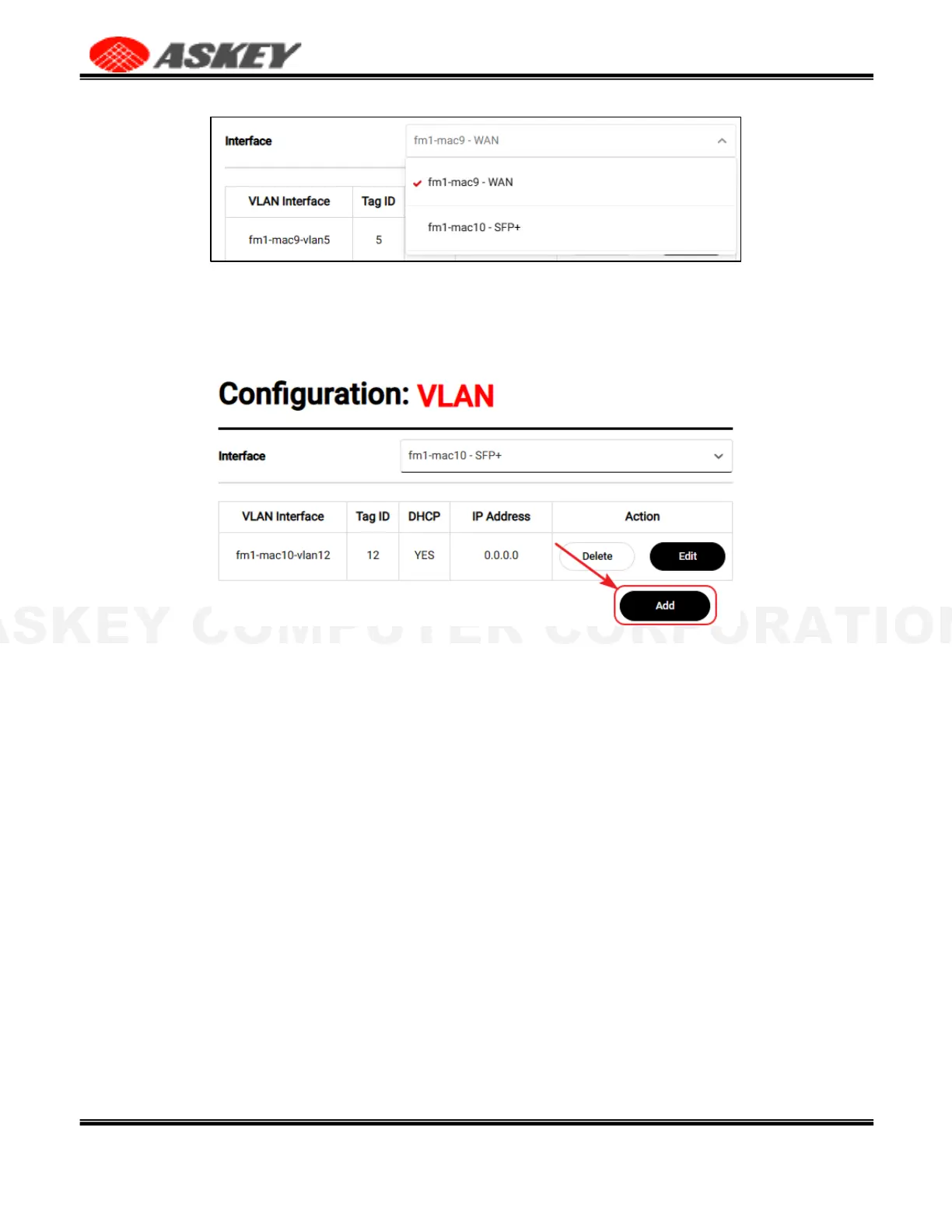

Figure 46. The Askey 5G NR Small Cell VLAN Page – Read Operation

Click the Add button will prompt a window to create a new VLAN attached to the physical network

interface. The DNS configurations are optional for the VLAN with static IP. If the DHCP is enabled, add the

ignore default route option Ignore Routes.

Figure 47. The Askey 5G NR Small Cell VLAN Page – Create Operation
