ASKEY COMPUTER CORPORATION

Chapter 3. The Askey 5G NR Small Cell Admin Website

NR xCell 46116A User Guide 24

All IP addresses and Subnet Mask will display by the comma-separated format on the Admin Website.

Click the Save button to activate the multiple IP addresses without rebooting.

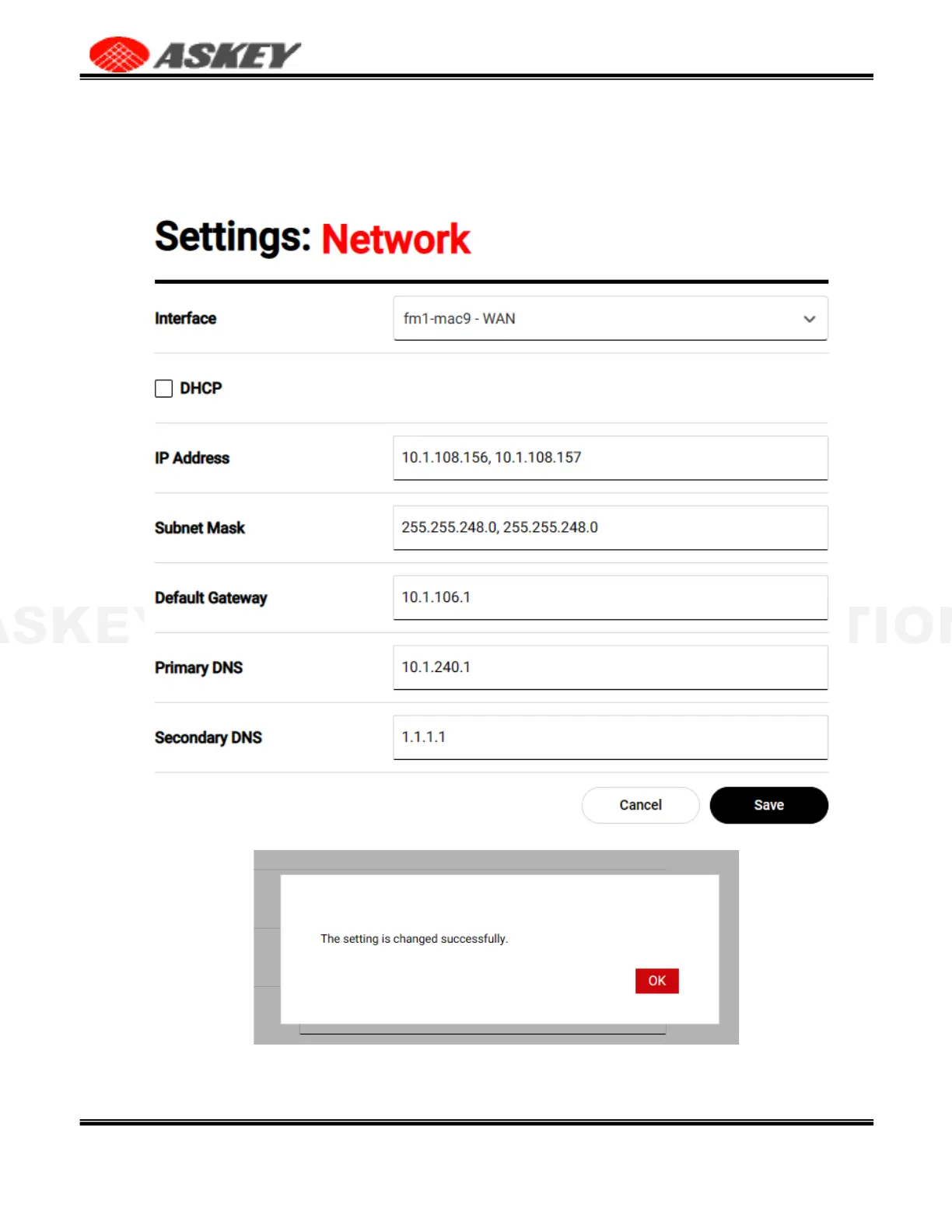

Figure 25. The Askey 5G NR Small Cell Network Page with the multiple IP addresses

After the setting is changed successfully, you can use the browser to access the Admin Website by the

new alternate static IP address.
