Table 16. The Askey 5G NR Small Cell DU Configuration – Bandwidth and NR ARFCN
Items
Descriptions
Bandwidth Profile
N48 : 20/30/40 MHz
N77 : 40/50/60/70/80/90/100MHz
ARFCN Profile
It provides the recommended ARFCN configuration
DL NR ARFCN
The downlink NR ARFCN of the whole bandwidth
UL NR ARFCN
The uplink NR ARFCN of the whole bandwidth
DL CenterFreq
The downlink center frequency value in KHz
UL CenterFreq
The uplink center frequency value in KHz
DL AbsFreqPointA
The downlink absolute frequency point A configuration in KHz
UL AbsFreqPointA
The uplink absolute frequency point A configuration in KHz
DL AbsArfcnPointA
The downlink absolute ARFCN point A configuration
UL AbsArfcnPointA
The uplink absolute ARFCN point A configuration
AbsFreqSsb
The absolute frequency SSB configuration in KHz
AbsArfcnSsb
The absolute ARFCN SSB configuration
For the Time Slot Format, the Admin Website provides some typical profiles and the recommended value
of the related items. You can click the profile option, and the related values will be filled in these detailed
items.

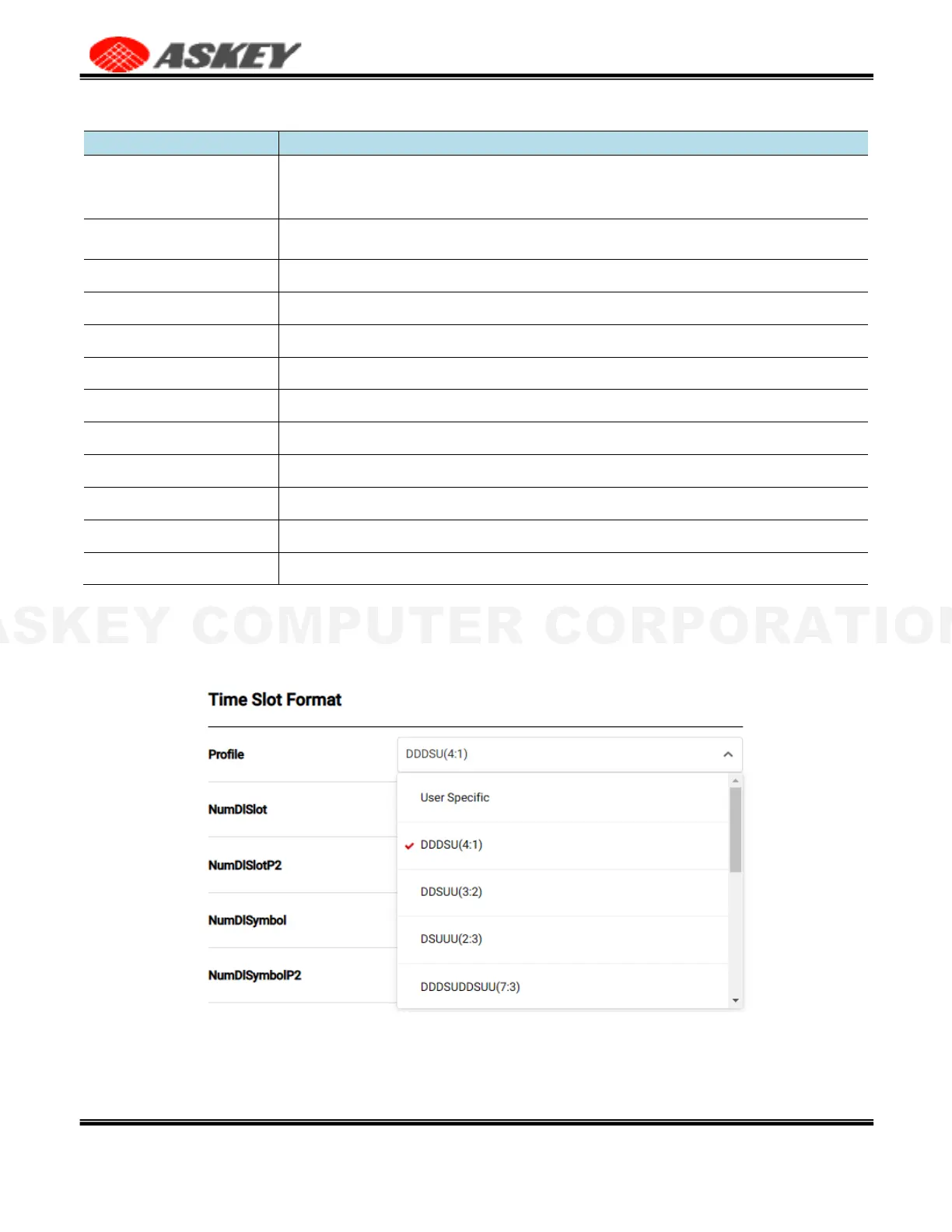

Figure 41. The Askey 5G NR Small Cell DU Configuration – Time Slot Profile
Figure 42. The Askey 5G NR Small Cell DU Configuration – Time Slot Parameters
