ASKEY COMPUTER CORPORATION

Chapter 3. The Askey 5G NR Small Cell Admin Website

NR xCell 46116A User Guide 51

3.5.5 VLAN

This Askey 5G NR Small Cell VLAN page allows users to create, read, update and delete the VLAN (Virtual

Local Area Network) configurations.

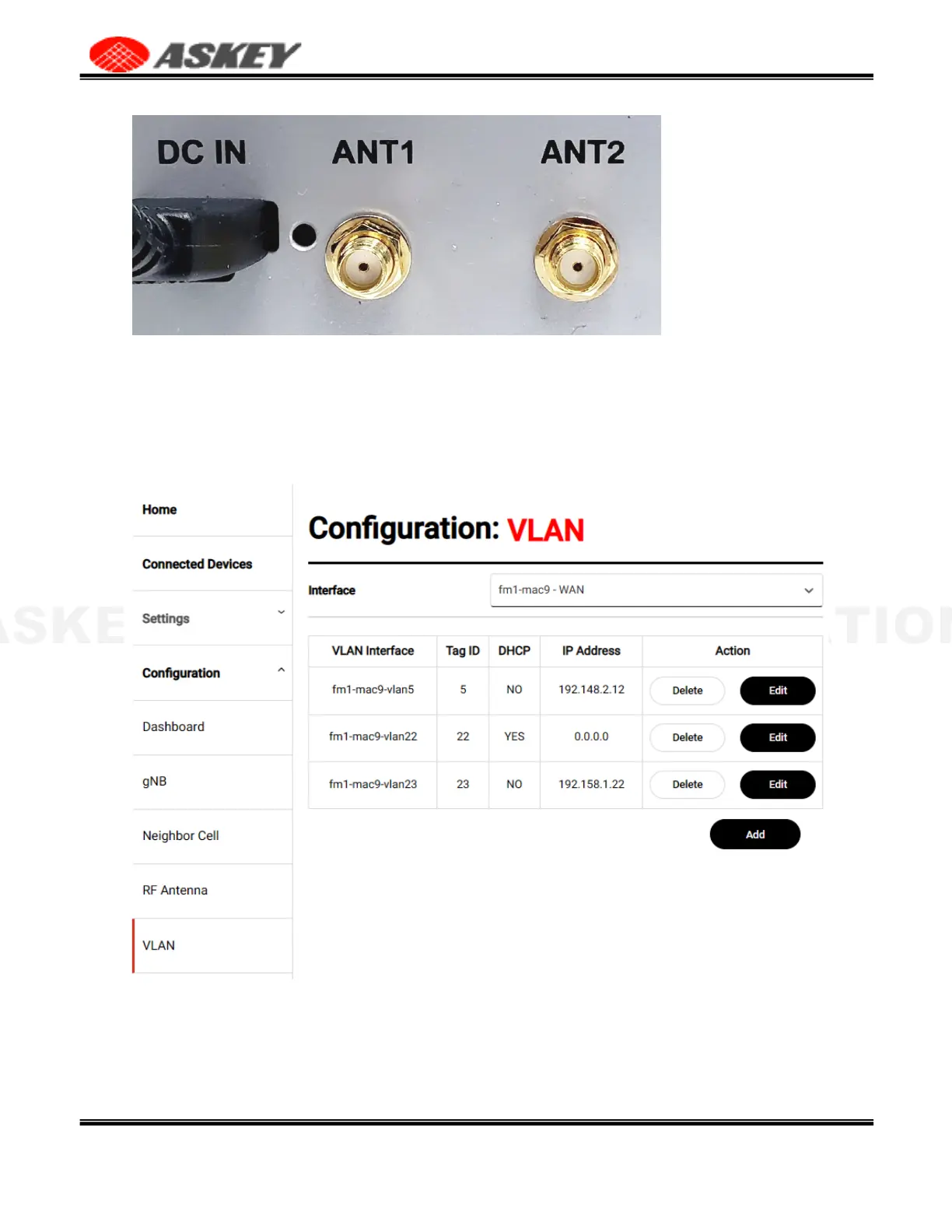

Figure 45. The Askey 5G NR Small Cell VLAN Page

At first, you should choose which physical network interface the VLAN attaches. When the interface is

changed, the related VLAN configurations attached on the physical network interface will be displayed on the

page.
