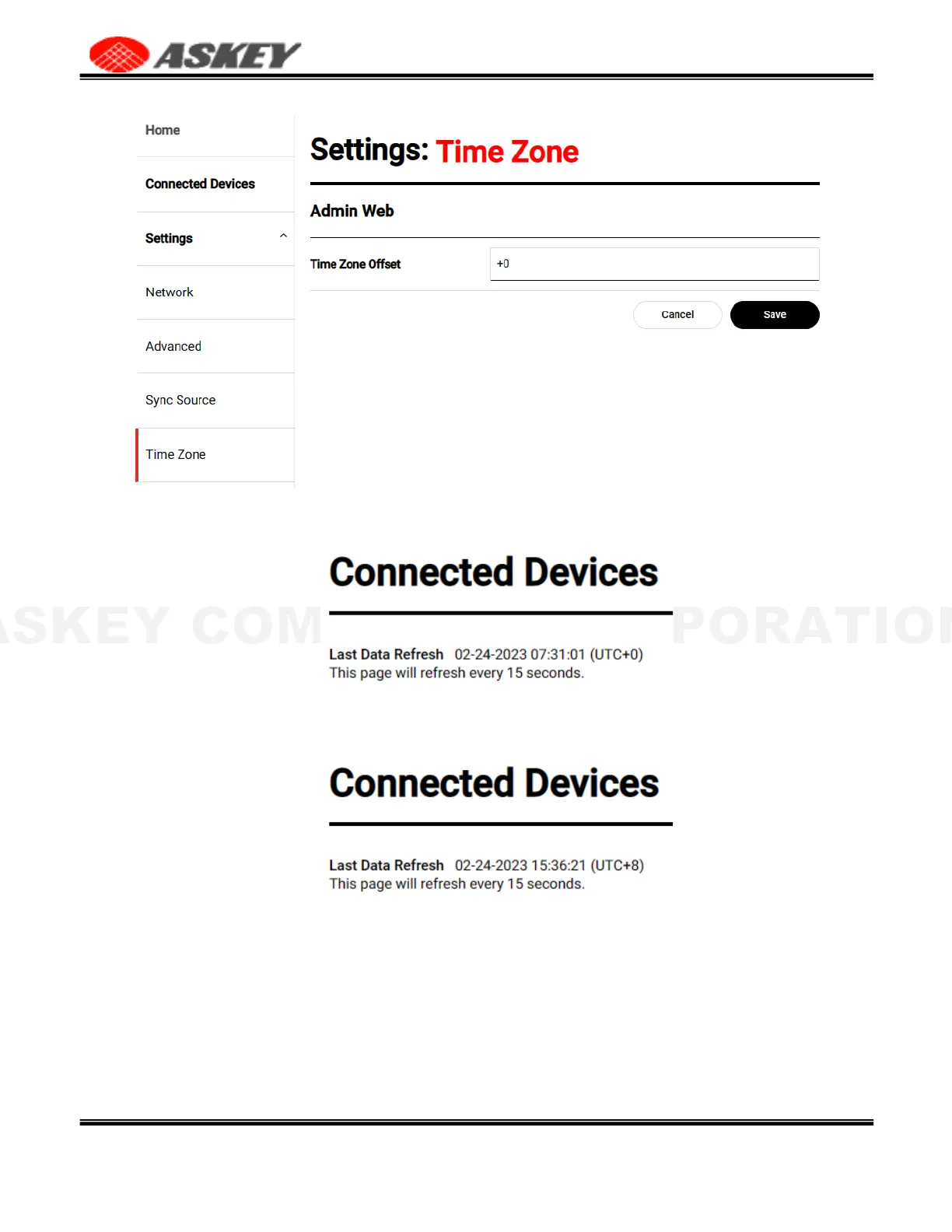

The default time zone offset is +0 (UTC). If the page will refresh automatically, the last data refresh will be

displayed on the page as the following illustration:

The Time Zone Offset can adjust as an integer number that ranges from -12 to 14 and activates without

rebooting.
