ASKEY COMPUTER CORPORATION

Chapter 3. The Askey 5G NR Small Cell Admin Website

NR xCell 46116A User Guide 41

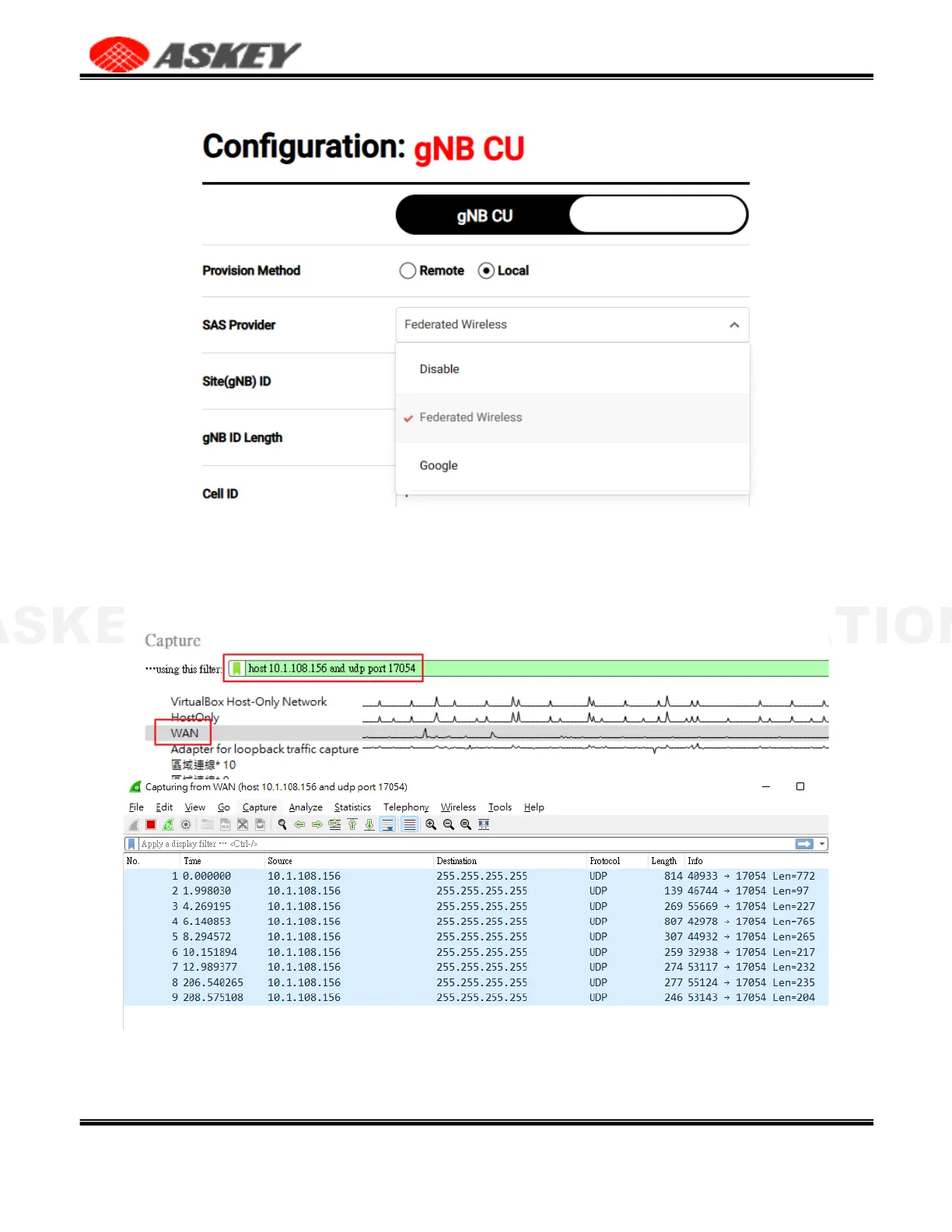

After rebooting the 5G NR Small Cell, the device will perform the normal SAS-CBSD procedures. The

related messages can be captured by Wireshark with the following capture filter:

host 10.1.108.156 and udp port 17054

For check the content of the SAS-CBSD procedures, you can click the right mouse on the raw data and

choose the item “Show Packet Bytes”.
