ASKEY COMPUTER CORPORATION

Chapter 3. The Askey 5G NR Small Cell Admin Website

NR xCell 46116A User Guide 48

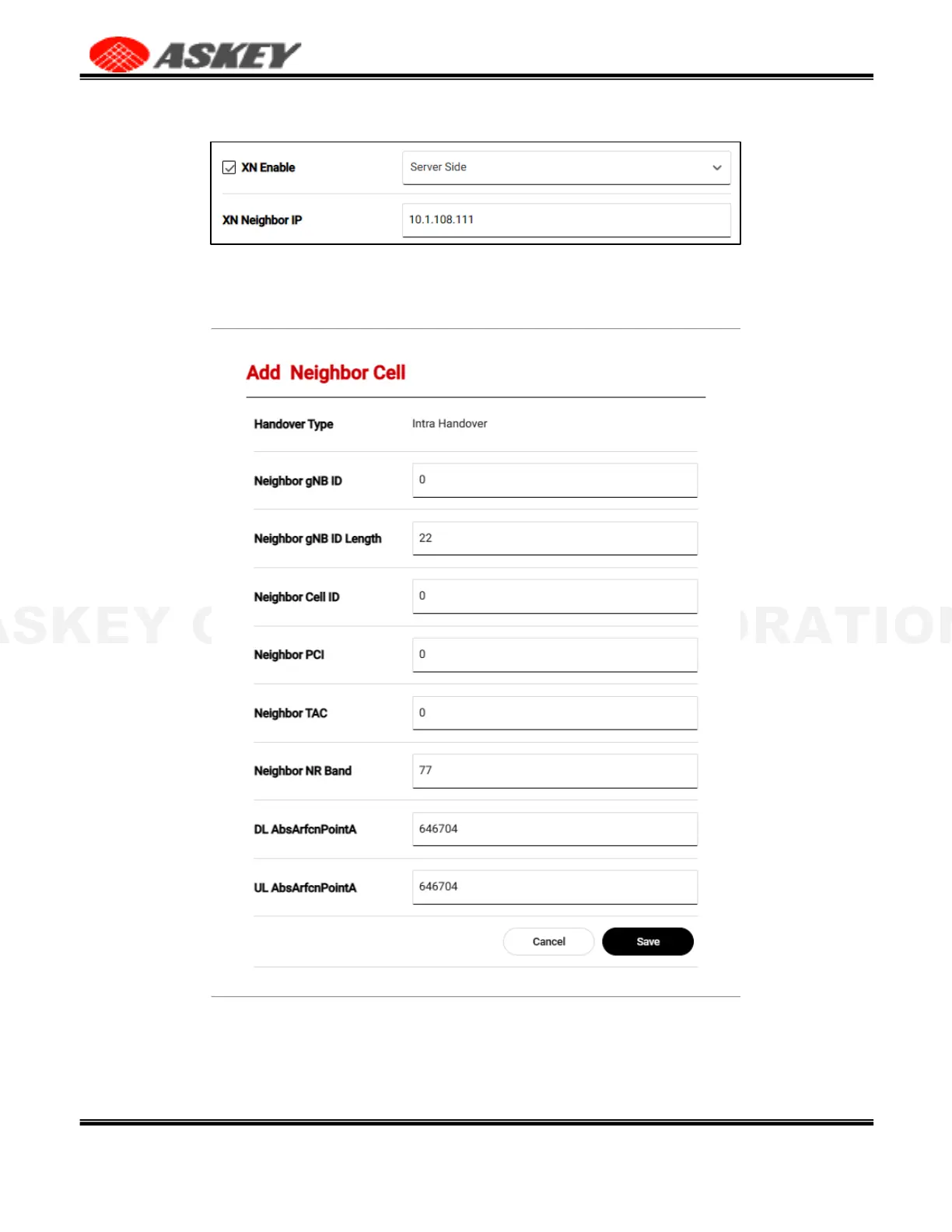

You can add the neighbor cell by clicking the Add button in the Action column and fill the neighbor data

on the popup window.

The gNB ID, gNB ID Length, and Cell ID cannot all be the same value as another neighbor cell. It should be

noted that the Askey 5G NR Small Cell currently doesn't support the inter handover if the Neighbor NR Band

or the AbsArfcnPointA is not the same as the gNB.
