6.2 ASSA ABLOY SW100-SPEC, cover with optional length (wall mounted)

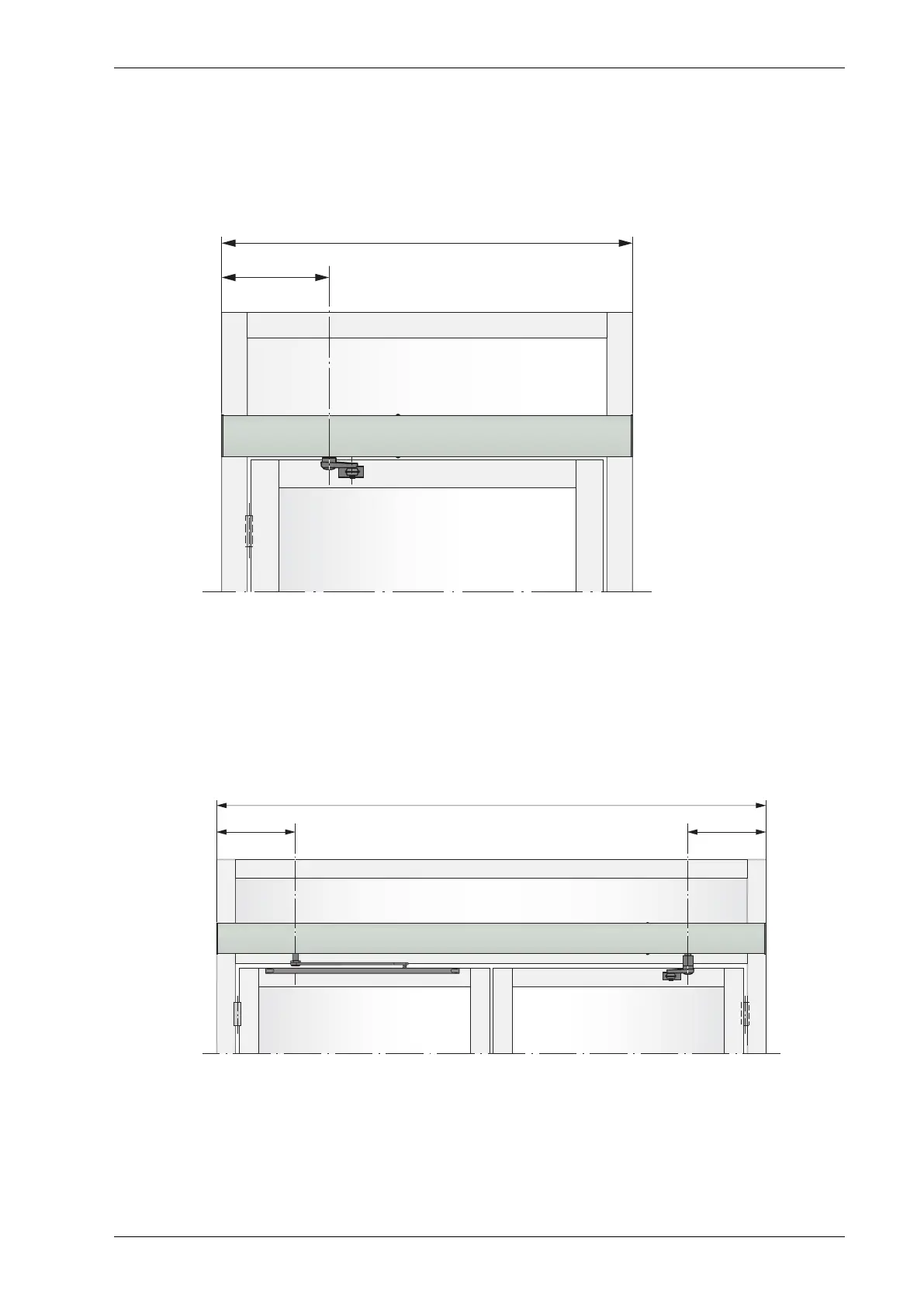

The ASSA ABLOY SW100-SPEC carries a cover with optional length e.g. with the same width as the
frame. The cover length L and the measurement R must be specified in the order.
Pushing arm system shown.
L
R
(≥ 250)
ILL-01614
6.3 ASSA ABLOY SW100-2, double door operators (wall mounted)
The ASSA ABLOY SW100-2 consists of two operators that are mounted under the same cover to
open one door each. The cover length L and the measurements R and S must be specified in the
order.
Pushing and pulling arm system shown. It is also possible to use two pushing or two pulling arm
systems.
L
R
(≥ 250)
S
(≥ 250)
ILL-01615
