Assa Abloy SW100 User Manual

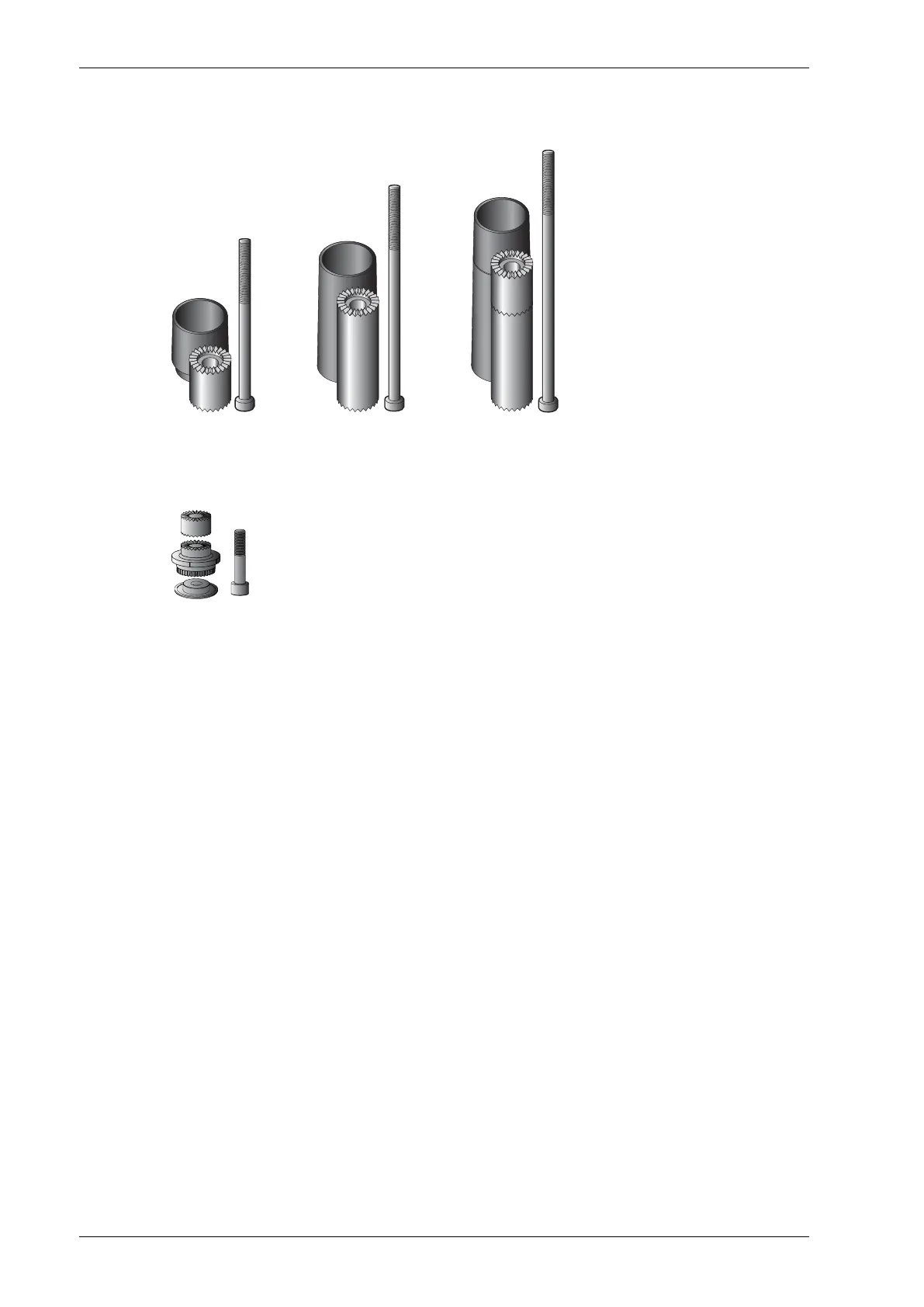

7.7 Drive shaft extension kits
20 mm
(3/4")
50 mm
(2")
70 mm
(2-3/4")
Art. No.
173109BK/173109SI
Art. No.
173108BK/173108SI
Art. No.
173107BK/173107SI
Lower adapter M8, used for 20 mm lower installation height.
Art. No.
1007618
1005088-en-22.0Issue 2021-02-2422
7 Part identification & Accessories
