16.3 Diagrams for Door weight
a Measure the door width (DW) and the door height (DH) in metres for one door leaf only.
b Calculate the area DW x DH.
c Select diagram for your type of door and the actual glass thickness. Find the weight.
Example: Aluminium door with measurement DW = 1.5 m, DH = 2 m and glass thickness 12 mm.
Calculate 1.5 x 2 = 3 m
2
. Look into the first diagram for “Aluminium Frame with glass”. Start with
the area and follow the line up to the 12 mm glass, go left to receive the door weight 95 kg.
Note! The weights can vary depending on the door design (the table shows only typical values).

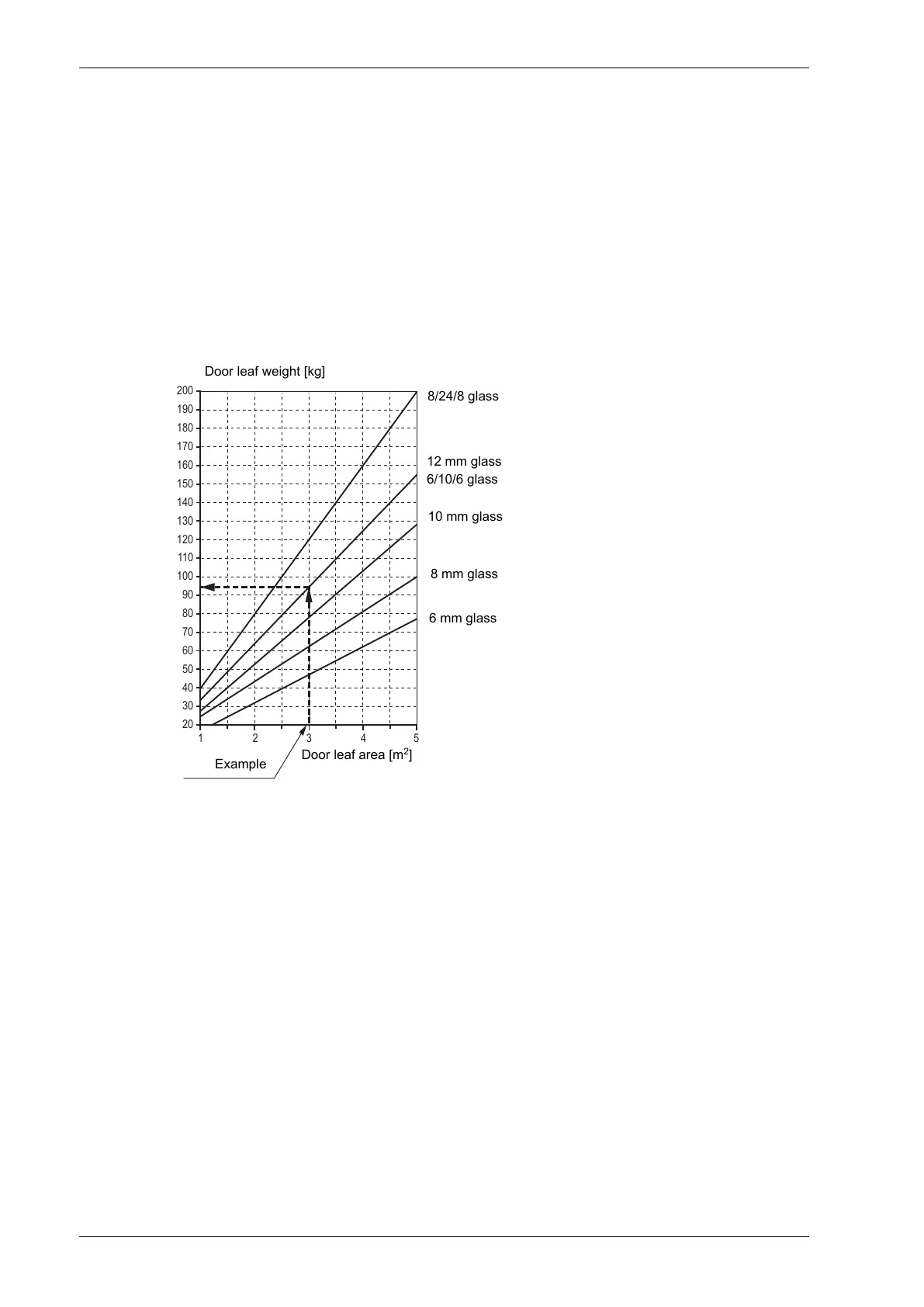

16.3.1 Aluminium frame with glass
200
190
180
170
160
150
140
130
120
110
100
90
80
70
60
50
40
30
20
1 2 3 4 5
Door leaf weight [kg]
Door leaf area [m
2
]
Example
8/24/8 glass
12 mm glass
6/10/6 glass
10 mm glass
8 mm glass
6 mm glass
1005088-en-22.0Issue 2021-02-2464
16 Installation and adjustments
