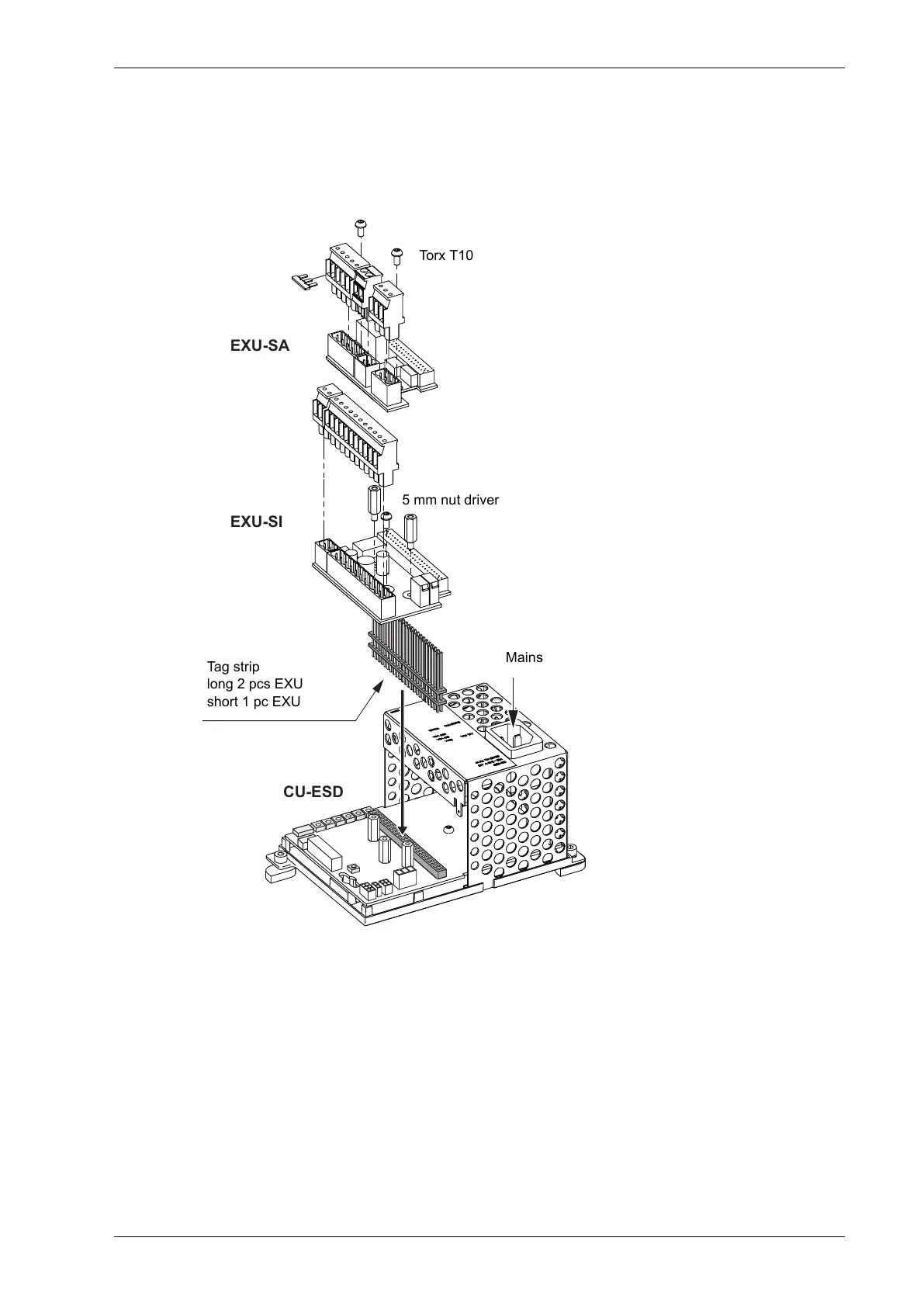

10.2.3 Extension units EXU-SI / EXU-SA
Installation
To extend the functions, the extension units can be mounted on top of the control unit CU-ESD,
separately or combined.
CU-ESD
EXU-SA
EXU-SI
5 mm nut driver
Torx T10
Mains
Tag strip
long 2 pcs EXU
short 1 pc EXU
45Issue 2021-02-241005088-en-22.0
10 Electrical connection
