14.6 Lock kick (Level 5)
a Disconnect batteries if any.
b Disconnect the mains.
c Press the LEARN BUTTON (LRN) and keep it depressed.
d Connect the mains.

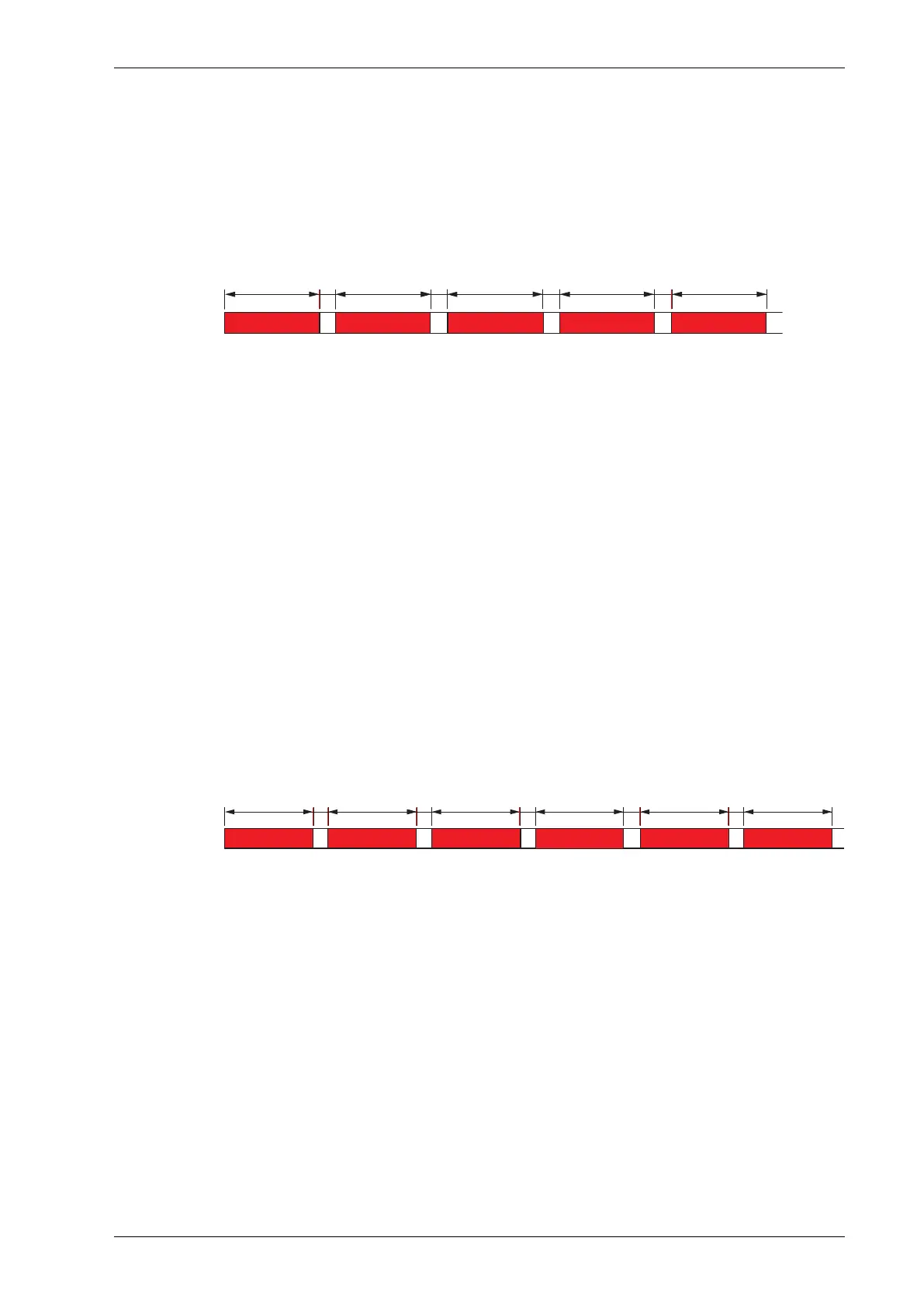

e Watch the ERROR LED.
3 s 3 s3 s 3 s1 s
1 s
3 s
1 s 1 s
f Release the LEARN BUTTON after 5 flashes (LED is out).
g Identify the current lock kick status
The ERROR LED flashes an amount of short flashes that correspond to the status number.
After a short pause the LED will repeat the status number and so on.
h Changing the status
If you push the LEARN BUTTON once, the status number will increase. When you have reached
the highest status number it will start at number one again.
Push the button until you get the requested lock kick status, 1 = Basic (default), 2 = Enhanced
Disconnect the mains
Next time the mains is connected, the operator will use the new status setting.
14.7 Lock unlocked status (Level 6)
Note! Only valid for locked without power = Fail secure.
a Disconnect batteries if any.
b Disconnect the mains.
c Press the LEARN BUTTON (LRN) and keep it depressed.
d Connect the mains.
e Watch the ERROR LED.
3 s 3 s3 s 3 s1 s
1 s
3 s
1 s 1 s
3 s
1 s
f Release the LEARN BUTTON after 6 flashes (LED is out).
g Identify the current lock unlocked status
The ERROR LED flashes an amount of short flashes that correspond to the status number.
After a short pause the LED will repeat the status number and so on.
h Changing the status
If you push the LEARN BUTTON once, the status number will increase. When you have reached
the highest status number it will start at number one again.
Push the button until you get the requested status, Lock is unlocked at
1= Lock is unlocked when door is not closed
2= Lock is unlocked when door is 0-10 degrees from closed position, during opening
Disconnect the mains
Next time the mains is connected, the operator will use the new status setting.
61Issue 2021-02-241005088-en-22.0
