10.2.5 Extension unit EXU-SA
This extension unit has inputs for door mounted sensors, which can give presence impulse on approach side
and/or presence detection on swing path side. Relay output for error indication or door indication is also integ-
rated. When the jumper for the relay is set to ‘Open door indication’, its activation will follow the Blanking LED.

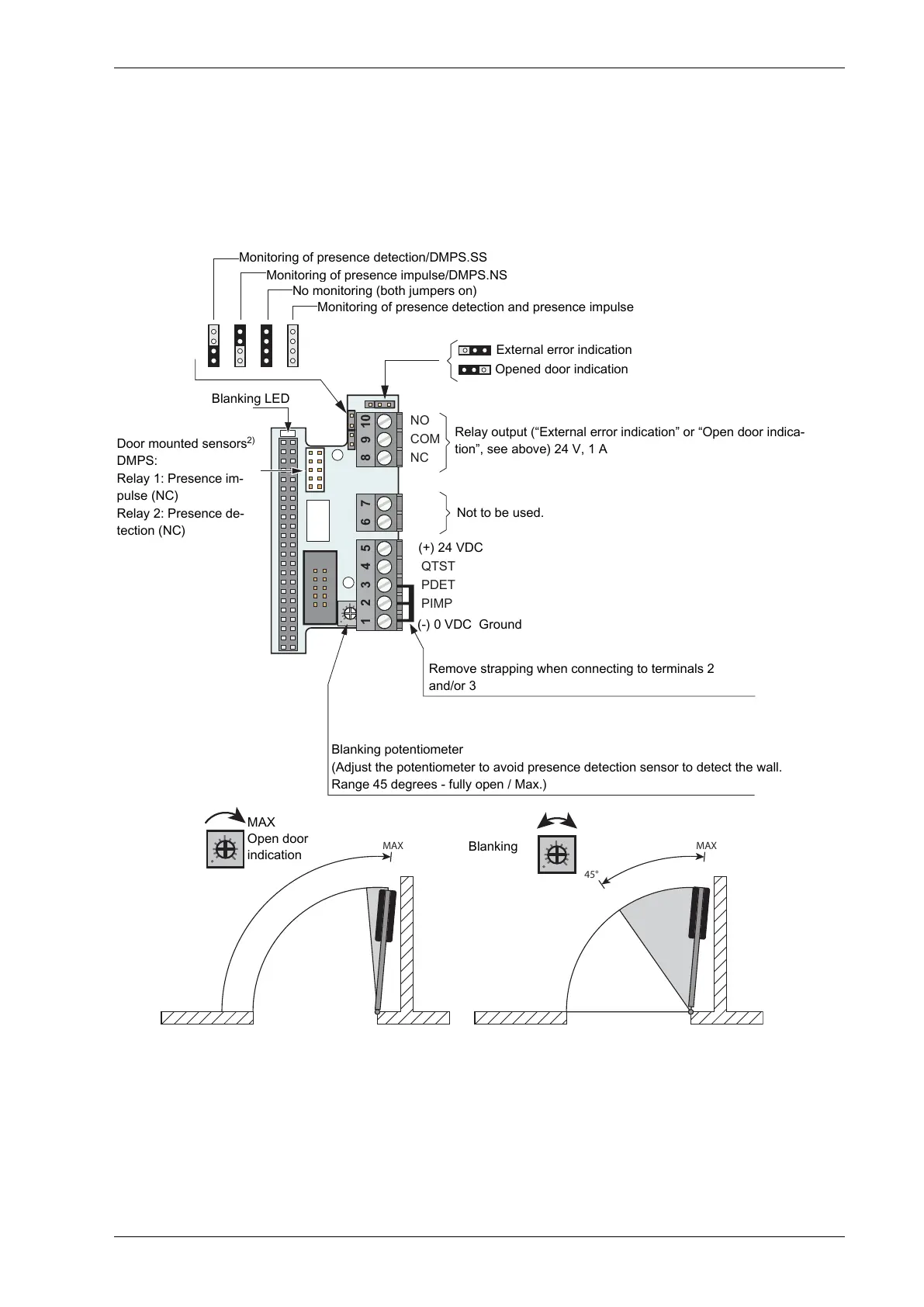

Functions
8 9 101 2 3 4 5
NO
COM
NC
24 V DC
QTST
PDET
PIMP
GND
6 7
Monitoring of presence detection/DMPS.SS
Monitoring of presence impulse/DMPS.NS
No monitoring (both jumpers on)
Monitoring of presence detection and presence impulse
External error indication
Opened door indication
Relay output (“External error indication” or “Open door indica-
tion”, see above) 24 V, 1 A
Ground
Remove strapping when connecting to terminals 2
and/or 3
Blanking potentiometer
(Adjust the potentiometer to avoid presence detection sensor to detect the wall.
Range 45 degrees - fully open / Max.)
Blanking LED
Door mounted sensors
2)
DMPS:
Relay 1: Presence im-
pulse (NC)
Relay 2: Presence de-
tection (NC)
(-) 0 VDC Ground
(+) 24 VDC
Not to be used.
Blanking
MAX
Open door
indication
QTST = Sensor monitoring
PDET = Presence detection (NC)
1)
PIMP = Presence impulse (NC)
1)
1)
If not used strap to “Ground”.
2)
Remove strapping from terminals 2 and/or 3.
