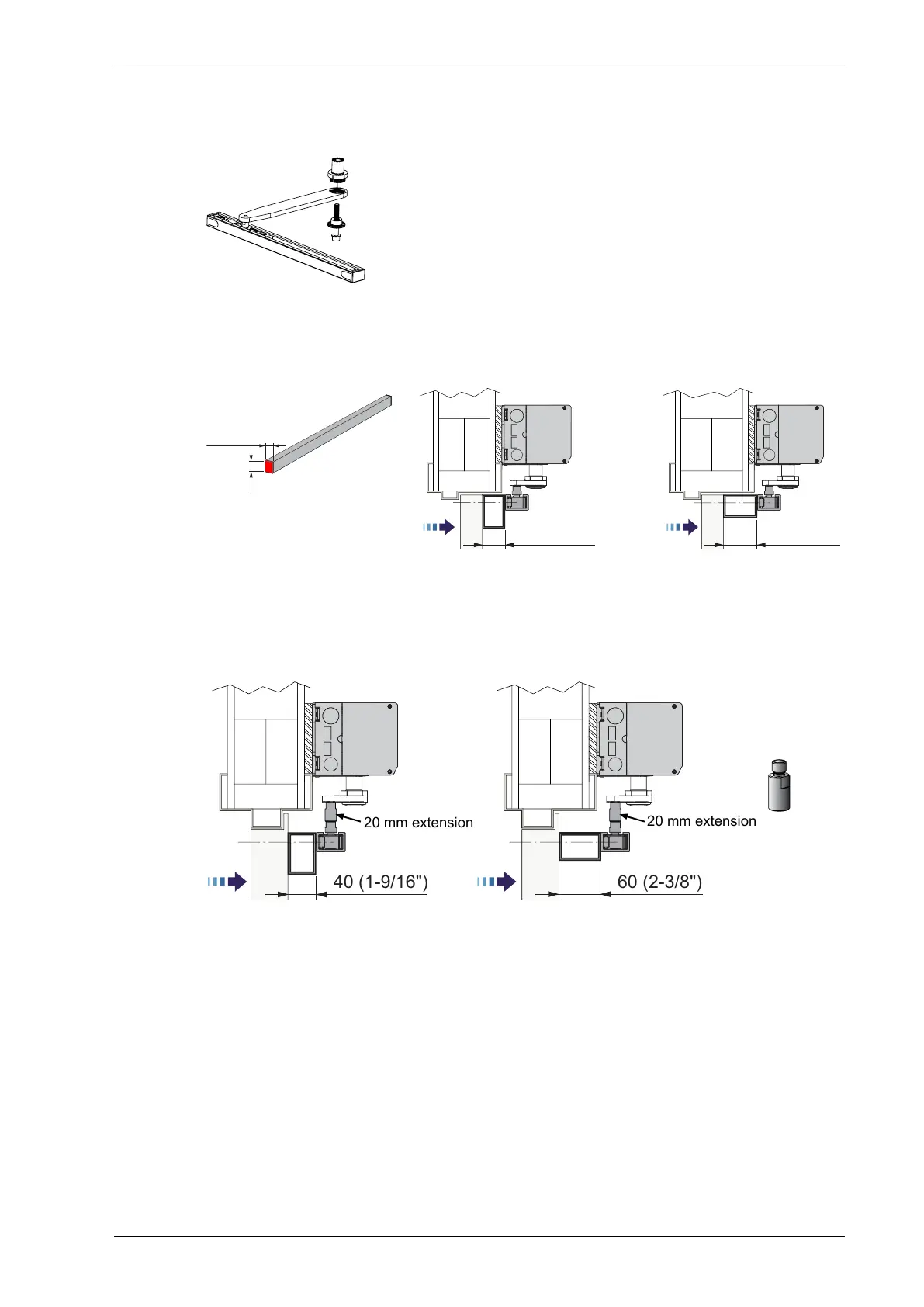

7.4 Arm system, PULL-220
Art. No. 1011998BK/SI
PULL-220
It is used if the operator is installed on the wall on the same side as the
door swing and when the door is 450-700 mm wide.
7.5 Reveal spacer: PULL / PULL-220
Art. No. PULL 1014317BK/SI
40 (1-9/16") 60 (2-3/8")
40 mm (1-9/16")
60 mm
(2-3/8")
7.6 20 mm extension
Extension 20 mm for PULL/PAS and lower mounting of slide track profile.
Art. No.: 1011205
40 (1-9/16")
60 (2-3/8")
20 mm extension
20 mm extension
21Issue 2021-02-241005088-en-22.0
