12 Cover
The cover and back plate are manufactured in clear anodized aluminium. The end plates are made
of black painted steel sheet.
12.1 Fitting and removing the cover
The cover is slid over flanges in the back plate so that the ridges fit in the grooves.
Break off and snap on the fill cover into the back plate for output shaft. Snap on the other fill cover
for the second slot. Secure cover with the screw.

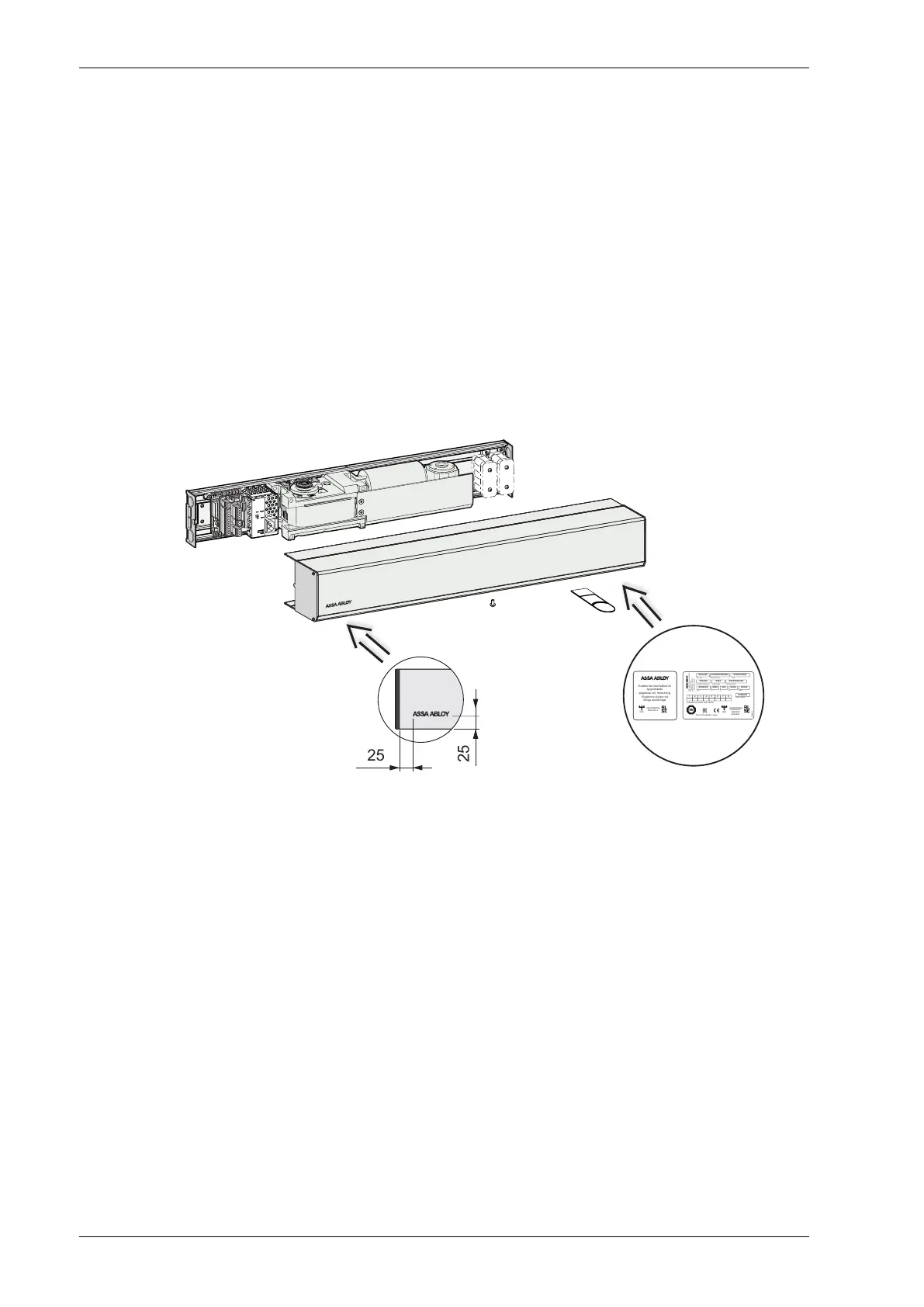

When properly installed and adjusted, attach the product label, which includes the CE mark on the
right side of the lower part of the operator cover (see illustration).
Apply the ASSA ABLOY logotype to the cover – see illustration.
Only for SE: Apply the SITAC label next to the product label - see illustration.
25
25
DESIGNATIONART. NO.
YEAR+WEEK
1004083
XXXXXXX XXXXXXXXXXXXX
TYPE
XXXXXXXXXX
TEMPERATURE
XXXXXXXXXXXXXXX
LOAD
XXXXX
PROD. ORDER
XXXXXXX
XXXXXX
XX/XX
Hz
PROJECT/SERIAL NO.
XXXXXXXXXX
W
XXXX
AVAC
ASSA ABLOY Entrance Systems AB LODJURSGATAN 10 LANDSKRONA SWEDEN FACTORY NO. X
1 2 3 4 5 6 7 8
CLASSIFICATION DIN 18650
SÜD
Part of the Besam range
1002
CERTIFIERING
KONTROLL
xxxxxxx
xxxxxxx
1002
CERTIFIERING
KONTROLL
Ersätter lås med fallkolv till
typgodkända
slagdörrar enl. förteckning
Skydd mot olyckor vid
rörliga anordningar
1005088-en-22.0Issue 2021-02-2454
12 Cover
