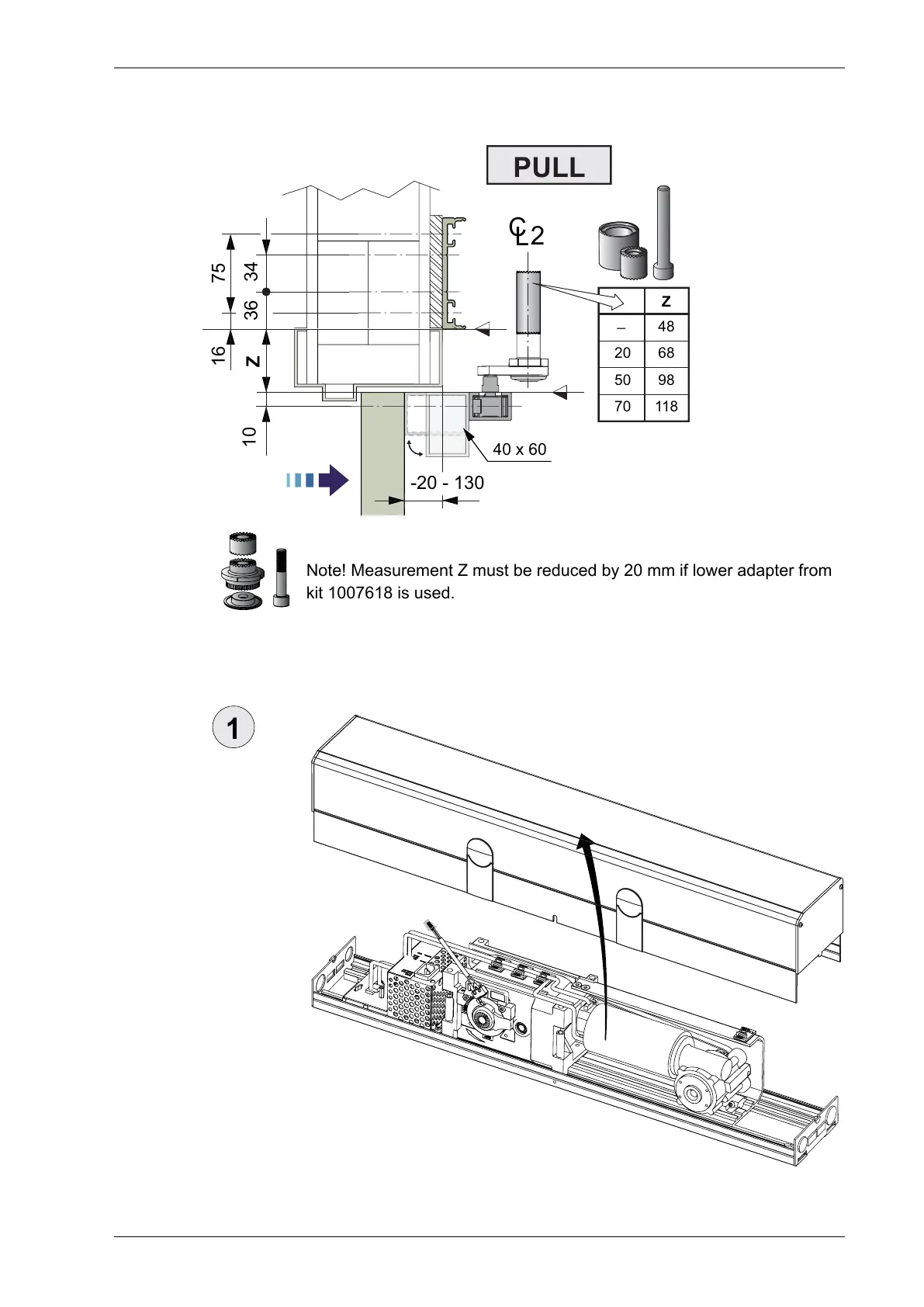

9.2 Operator with PULL arm system
1
40 x 60
48
68
98
118
Z
_
-20 - 130
10
20
50
70
PULL
16 75
Z
3436
C
L
2
Note! Measurement Z must be reduced by 20 mm if lower adapter from
kit 1007618 is used.
