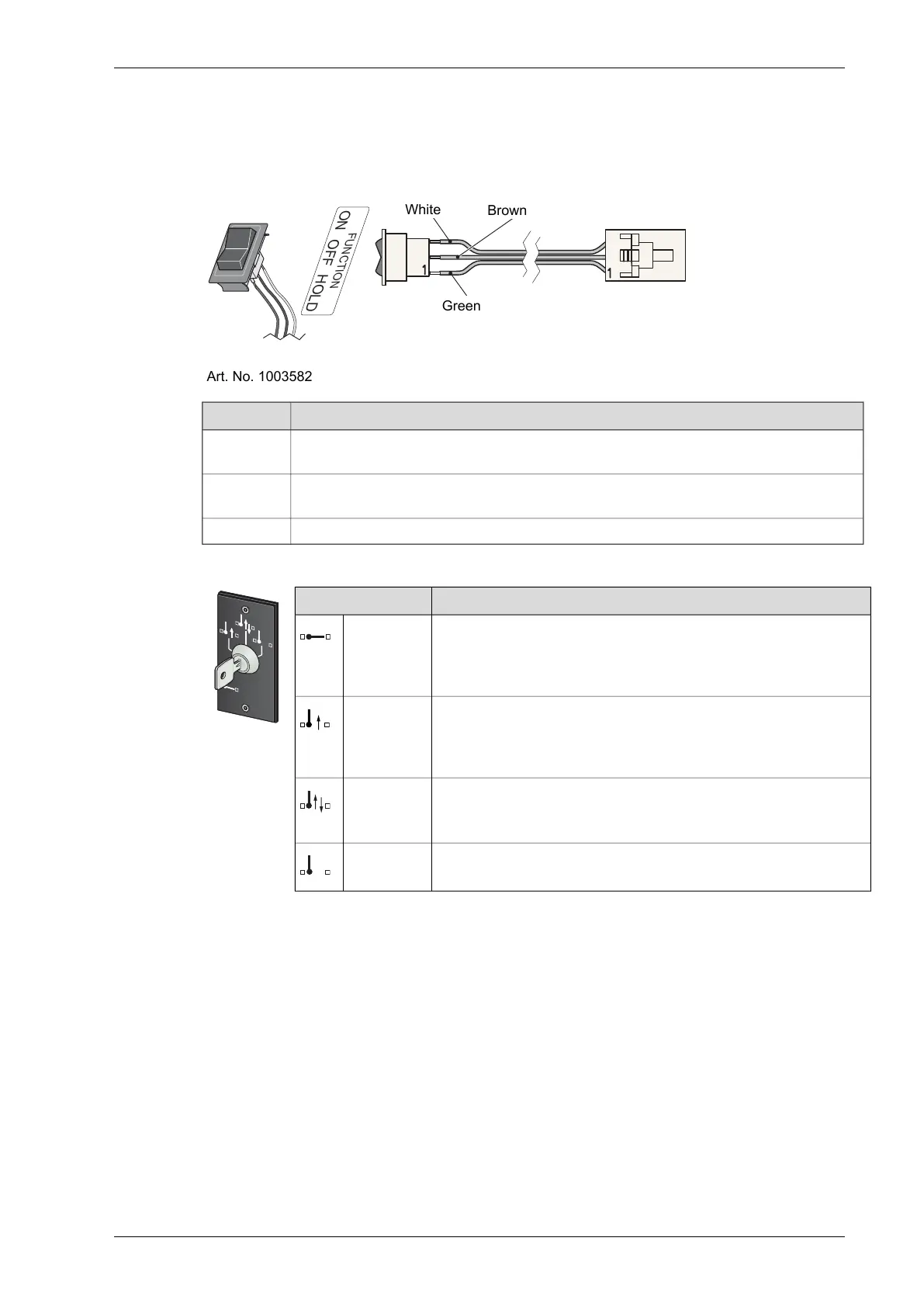

7.8 Control switches
7.8.1 ON/OFF/HOLD open switch (will not operate electric lock)
P/N: 1003582
FUNCTION
ON
OFF
HOLD
White
Brown
Green
Art. No. 1003582
ProgramFunction
Impulses from activation units connected to XIMP are forwarded into inner impulse
(see page 44).
ON
Impulses from activation units connected to XIMP are not forwarded into inner impulse.
These units cannot open the door.
OFF
The door is held permanently open.HOLD
7.8.2 4-position switch PS-4C (operates the electric lock)
FunctionPosition
Art. No
655845
The door is closed. The door cannot be opened with inner and
outer activation units. The door is locked if an electromechanical
locking device has been fitted. The door can be opened with a key
switch (if fitted).
OFF
Passage from inside only. The door is normally locked if an elec-
tromechanical locking device has been fitted. The door can only
be opened with the inner activation unit and with a key switch (if
fitted).
EXIT
The door can be opened with the inner and outer manual and/or
automatic activators. The electric strike, if fitted, is open.
AUTO
Normal pos-
ition
The door is held permanently open by the motor.OPEN
23Issue 2021-02-241005088-en-22.0
