Asus AAEON UP Xtreme UP-WHL01 User Manual

Chapter 2 – Hardware Information 15
Maker Board UP Xtreme UP-WHL01

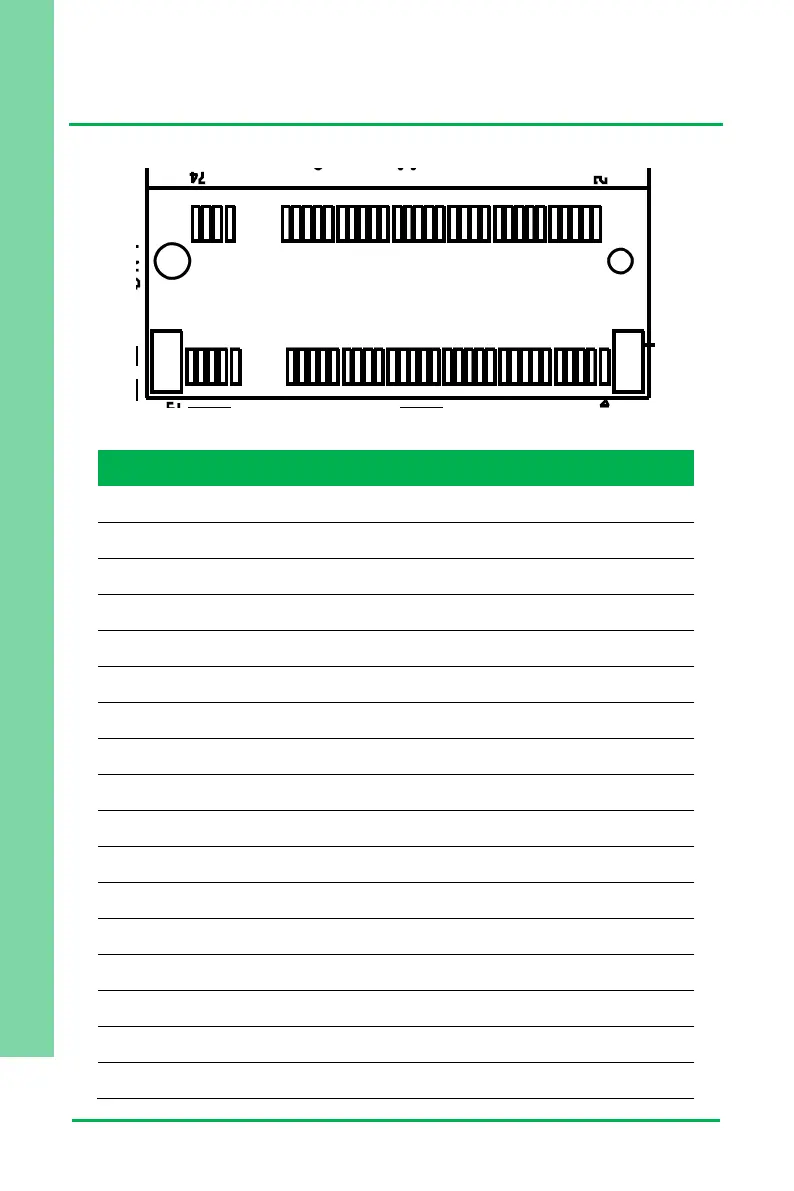

2.3.5 M.2 Slot M-Key (CN4)
Pin
Signal
Pin
Signal
1
GND
39
GND
2
+3.3V
40
SOC_I2C1_SCL
3
GND
41
PCIE_TXN0
4
+3.3V
42
SOC_I2C1_SDA
5
NC
43
PCIE_TXP0
6
FULL_CARD_PWR_OFF#
44
NC
7
NC
45
GND
8
NC
46
NC
9
NC
47
PCIE_RXN0
10
NC
48
NC
11
NC
49
PCIE_RXP0
20
NC
50
PLT_RST#
21
GND
51
GND
22
NC
52
PCIE_CLKREQ#
23
NC
53
PCIE_CLK_N
24
NC
54
WAKE_M2
25
NC
55
PCIE_CLK_P
