Download the .dfu file from the deliverables folder. Extract the files, then connect the
board to the PC with a USB-C cable.
Flashing the firmware file on board requires it to be transferred using a DFU
Bootloader program. The steps show below use DfuSe USB Device Firmware Upgrade
to perform these actions.

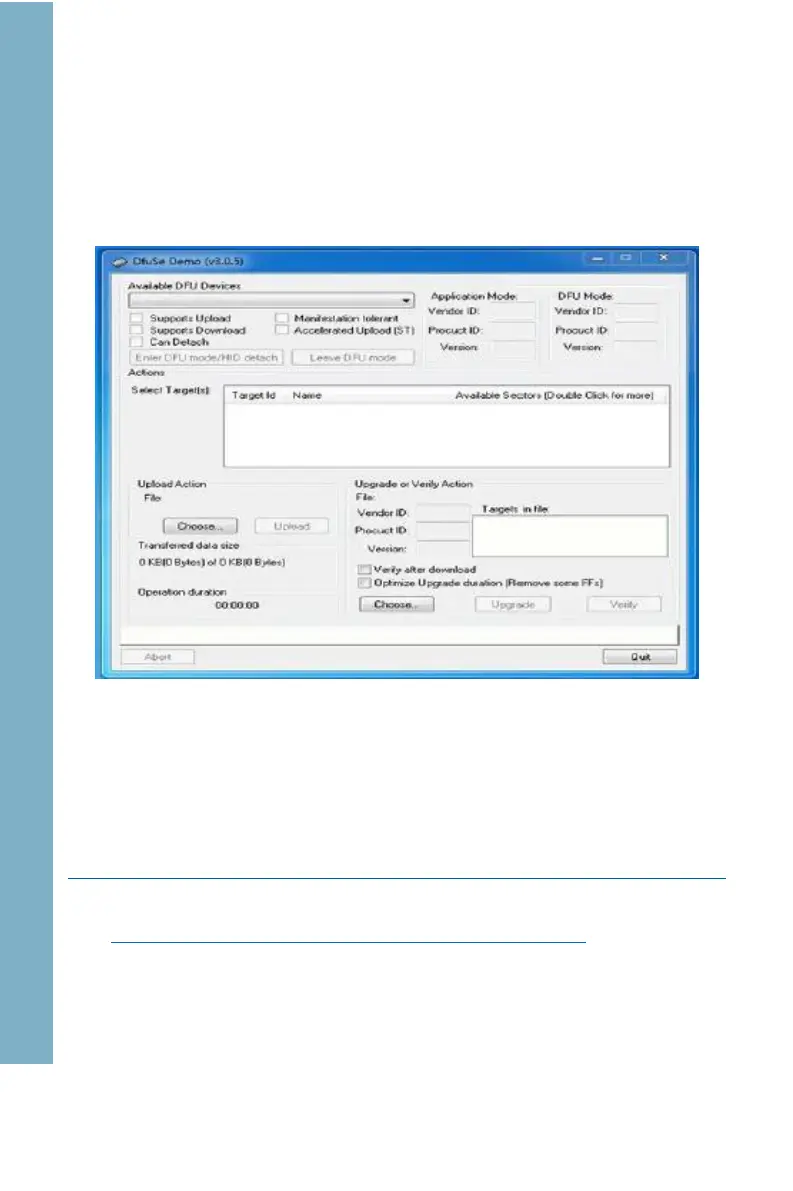

Image 8: DfuSe Utility Program
Note: Firmware can only be placed via the built-in bootloader on the STM32f042k6
board.
2.5 Installation Procedure for DfuSe Demo
This section details how to install DfuSe Demo. First, download and run the installer
from https://www.st.com/en/development-tools/stsw-stm32080.html
InstallShield Wizard should start automatically and guide you through the installation
procedure. When the software is successfully installed, click “Finish”.
