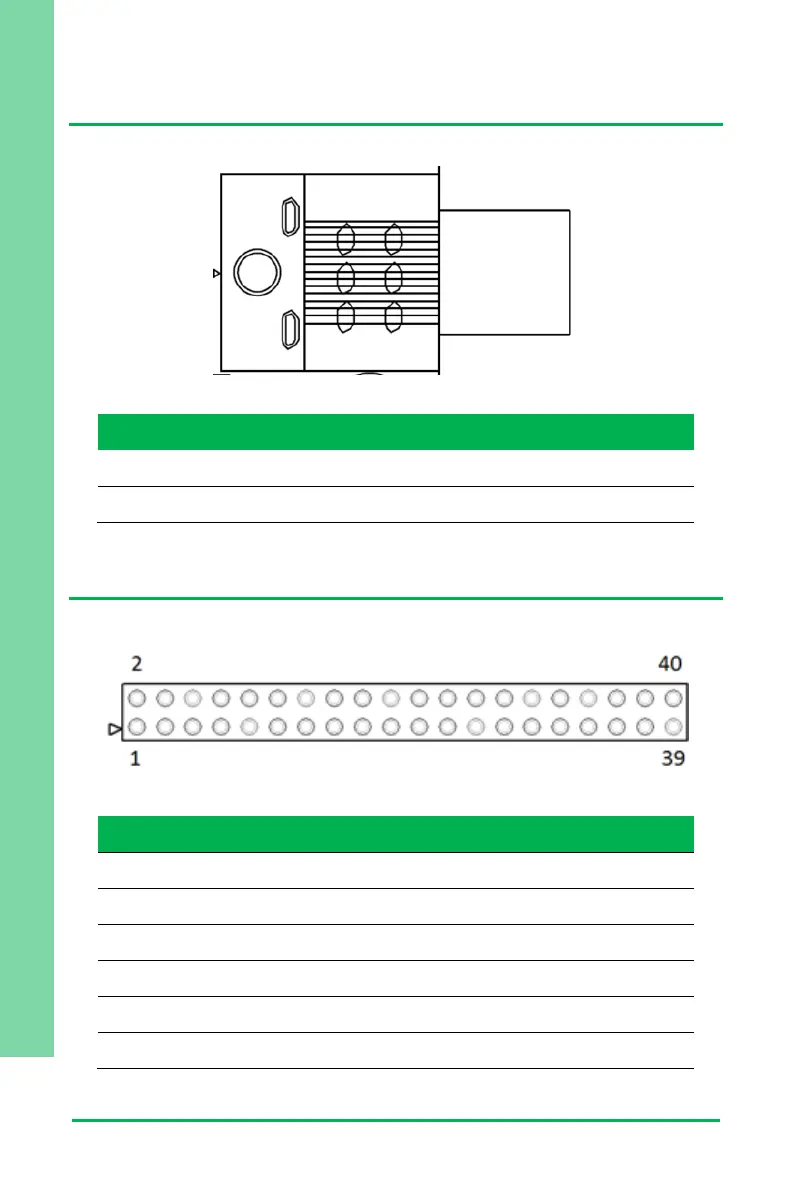

Chapter 2 – Hardware Information 26
Maker Board UP Xtreme UP-WHL01
2.3.15 DC Jack (DC: 24~50V) (CN20)
Pin
Signal
Pin
Signal
1
DC_IN
2
GND
3
GND
2.3.16 HAT 40 (CN22)
Pin
Signal
Pin
Signal
1
3.3V
2
5V
3
I2C1_DAT
4
5V
5
I2C1_CLK
6
GND
7
ANALOG_DATA1
8
UART_TX
9
GND
10
UART_RX
11
ANALOG_DATA2
12
I2S_BCLK
