Chapter 2 – Hardware Information 23
Maker Board UP Xtreme UP-WHL01

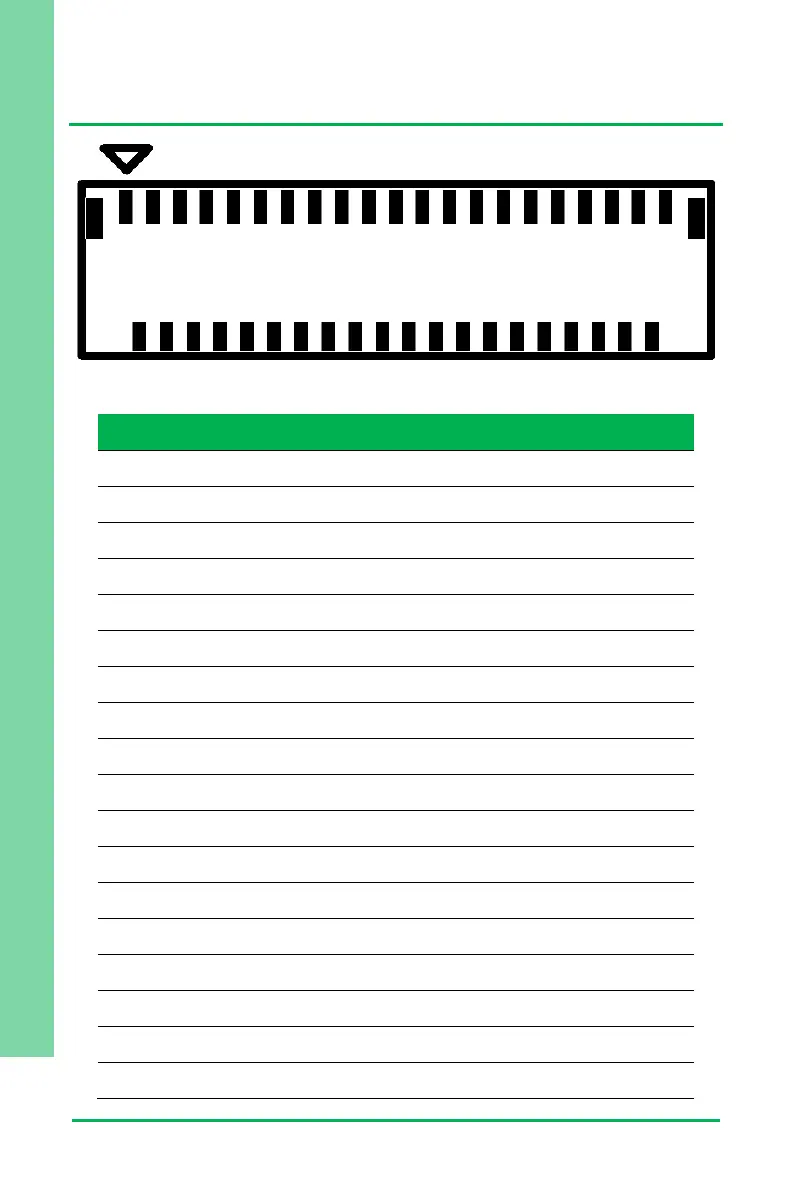

2.3.11 EDP (CN13)
Pin
Signal
Pin
Signal
1
NC
2
NC
3
GND
4
NC
5
NC
6
GND
7
NC
8
NC
9
GND
10
NC
11
NC
12
GND
13
NC
14
NC
15
GND
16
data positive 0
17
data negative 0
18
GND
19
data positive 1
20
data negative 1
21
GND
22
data positive 2
23
data negative 2
24
GND
25
data positive 3
26
data negative 3
27
GND
28
AUX positive
29
AUX negative
30
GND
31
Hot Plug Detect
32
Back Light Control
33
VDD Enable
34
Back Light Enable
35
I2C_CLK
36
I2C_DAT
