Asus AAEON UP Xtreme UP-WHL01 - Fan (Cn19); USB 2.0 1 X10 P Wafer (CN16)

Chapter 2 – Hardware Information 25
Maker Board UP Xtreme UP-WHL01

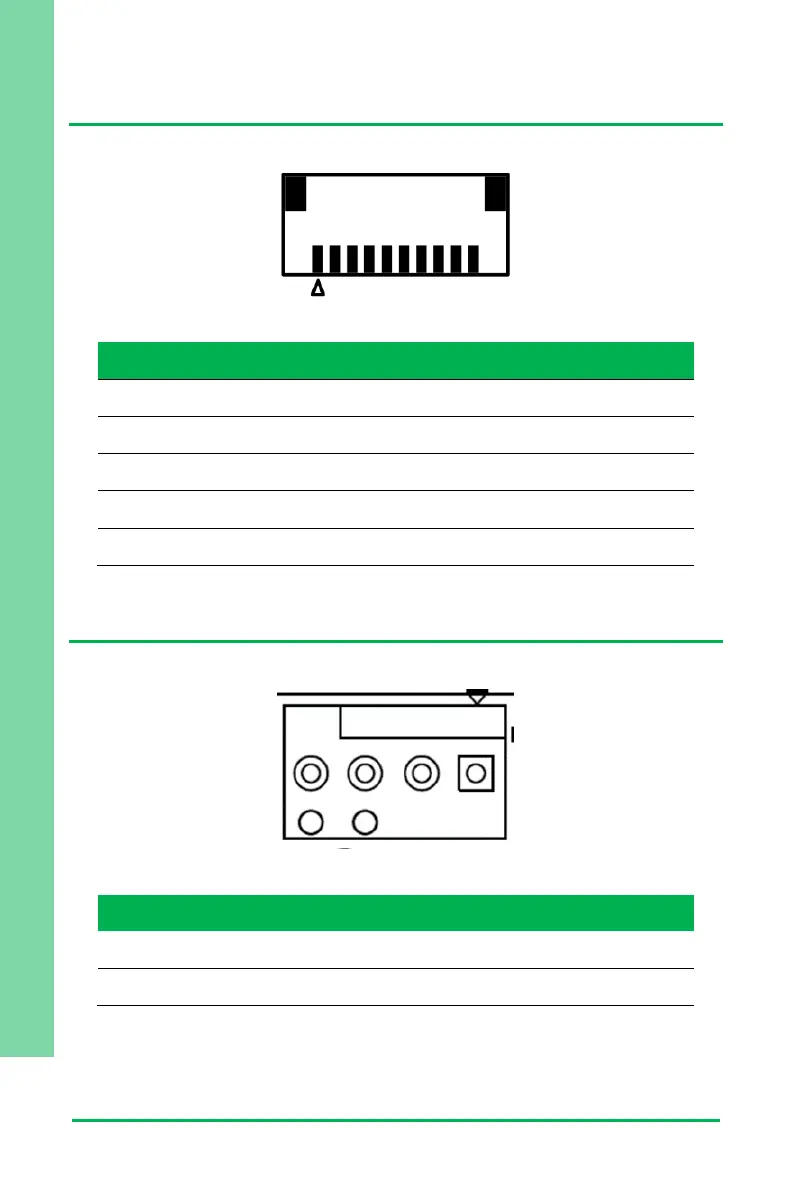

2.3.13 USB 2.0 1x10P Wafer (CN16)
Pin
Signal
Pin
Signal
1
5V
2
USB2_D1-
3
USB2_D1+
4
GND
5
NC
6
NC
7
NC
8
NC
9
UART_RX
10
UART_TX
2.3.14 FAN (CN19)
Pin
Signal
Pin
Signal
1
GND
2
VCC_FAN_CPU_CON
3
FAN_TAC_CPU_CON
4
FAN_CTL_CPU_CON
