CEC Client Installation 22
CEC Client Installation Supplemental Appendix for UP Xtreme
Chapter 3 API

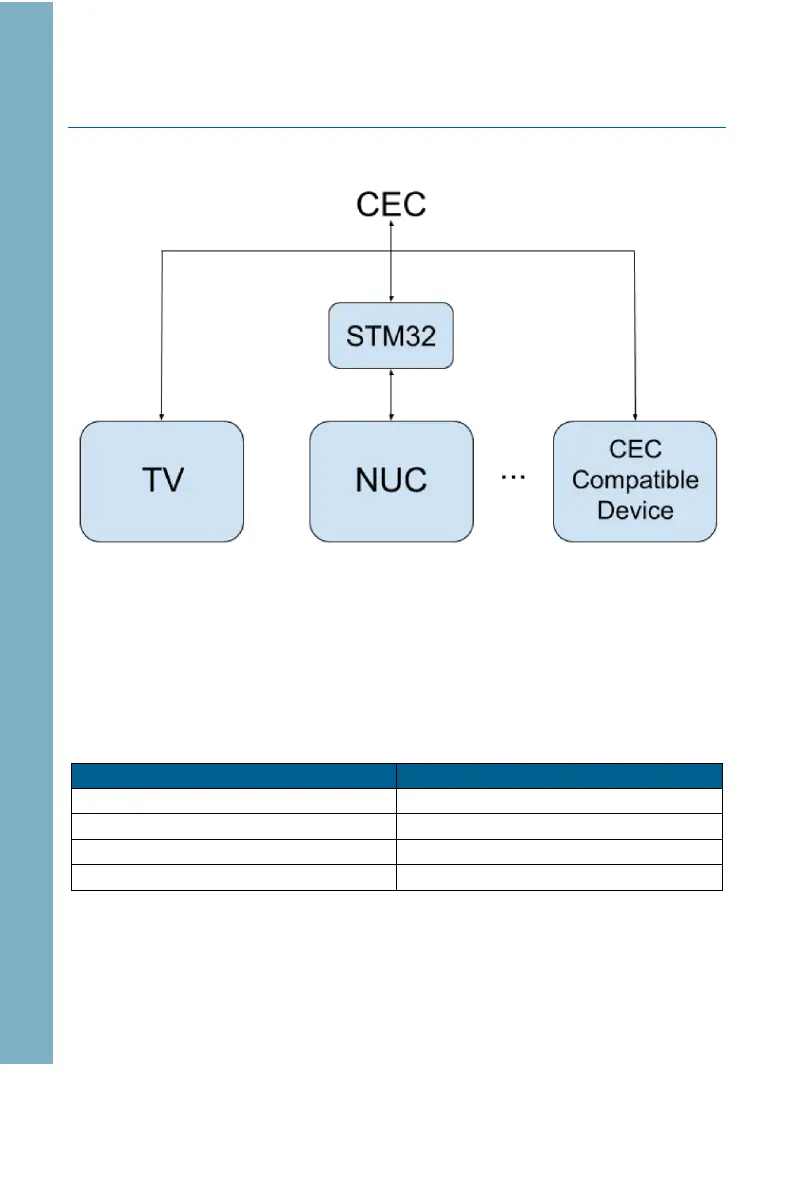

Image 17: CEC Network
STM32F10xxx device should be connected to Host CPU through USB (Communication
Device Class) and HDMI CEC pin of baseboard. Firmware application should re-use
already available CEC library from ST and provide adaptation layer which should
enable access to CEC bus operation from USB host. The following functions should be
exposed through USB API:
API Name
Description
HAL_CEC_Transmit_IT
Sends a CEC data in interrupt mode
HAL_CEC_TxCpltCallback
Tx Transfer completed callback
HAL_CEC_RxCpltCallback
Rx Transfer completed callback
HAL_CEC_ErrorCallback
CEC error callback
