Chapter 2 – Hardware Information 17
Maker Board UP Xtreme UP-WHL01

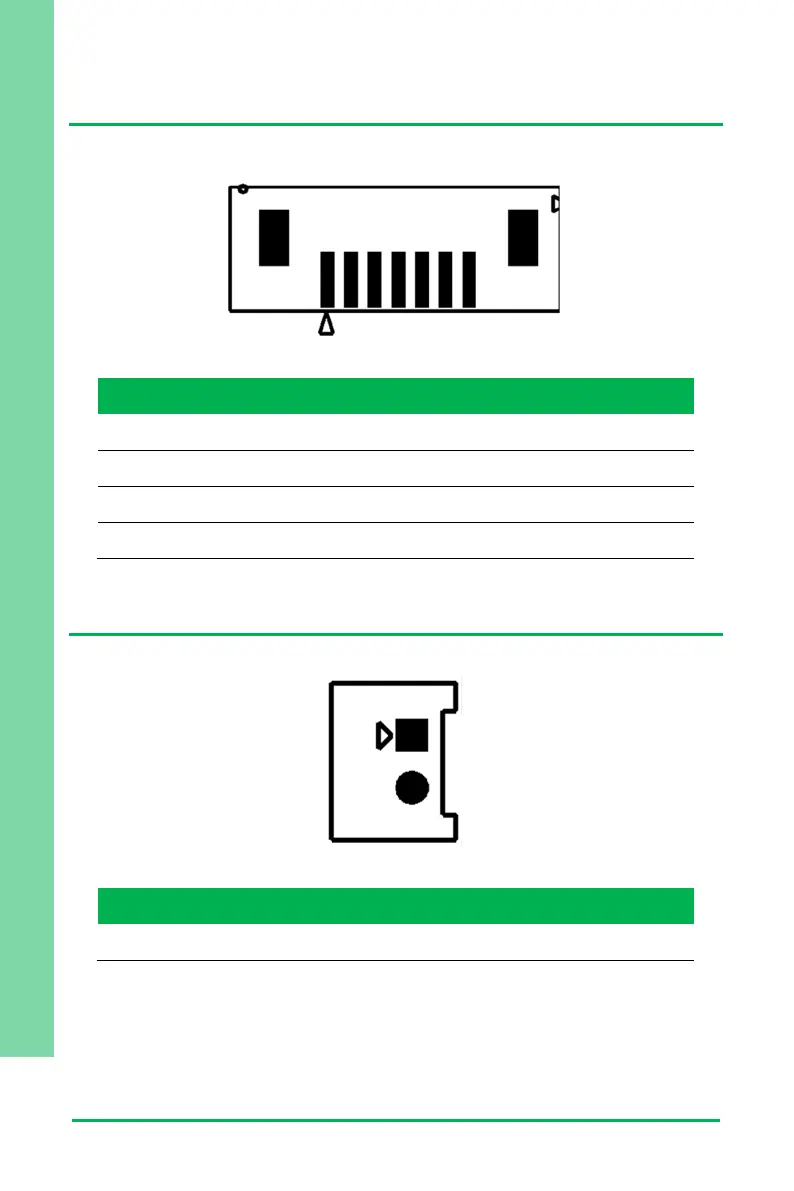

2.3.6 SATA Connector (CN5)
Pin
Signal
Pin
Signal
1
GND
2
SATA_TXP0_C
3
SATA_TXN0_C
4
GND
5
SATA_RXN0_C
6
SATA_RXP0_C
7
GND
2.3.7 SATA Power (CN6)
Pin
Signal
Pin
Signal
1
+V5S
2
GND
