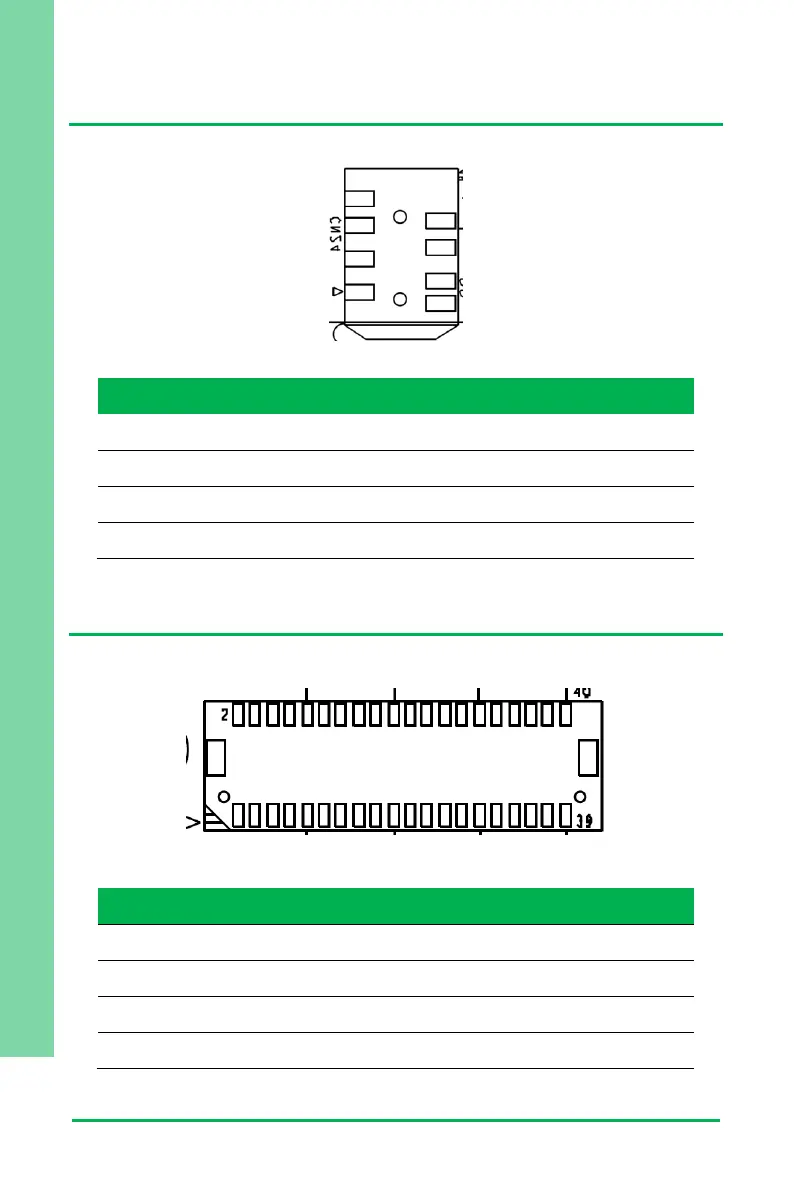

Chapter 2 – Hardware Information 28
Maker Board UP Xtreme UP-WHL01
2.3.17 Audio Jack (CN24)
Pin
Signal
Pin
Signal
1
MIC_LR_CN
2
AGND
3
LOUT_R
4
NC
5
NC
6
NC
7
NC
8
LOUT_L
2.3.18 ADUINO (CN25)
Pin
Signal
Pin
Signal
1
+3V_MCU
2
+3V_MCU
3
GND
4
GND
5
STM32_PB1
6
STM32_VBAT
7
STM32_PB7
8
STM32_PC8
