Asus AAEON UP Xtreme UP-WHL01 User Manual

Chapter 2 – Hardware Information 20
Maker Board UP Xtreme UP-WHL01
Pin
Signal
Pin
Signal
P35
DDC_CLK
P36
DDC_DATA
P37
GND
P38
5V
DDI1_TYPE_C_HPD

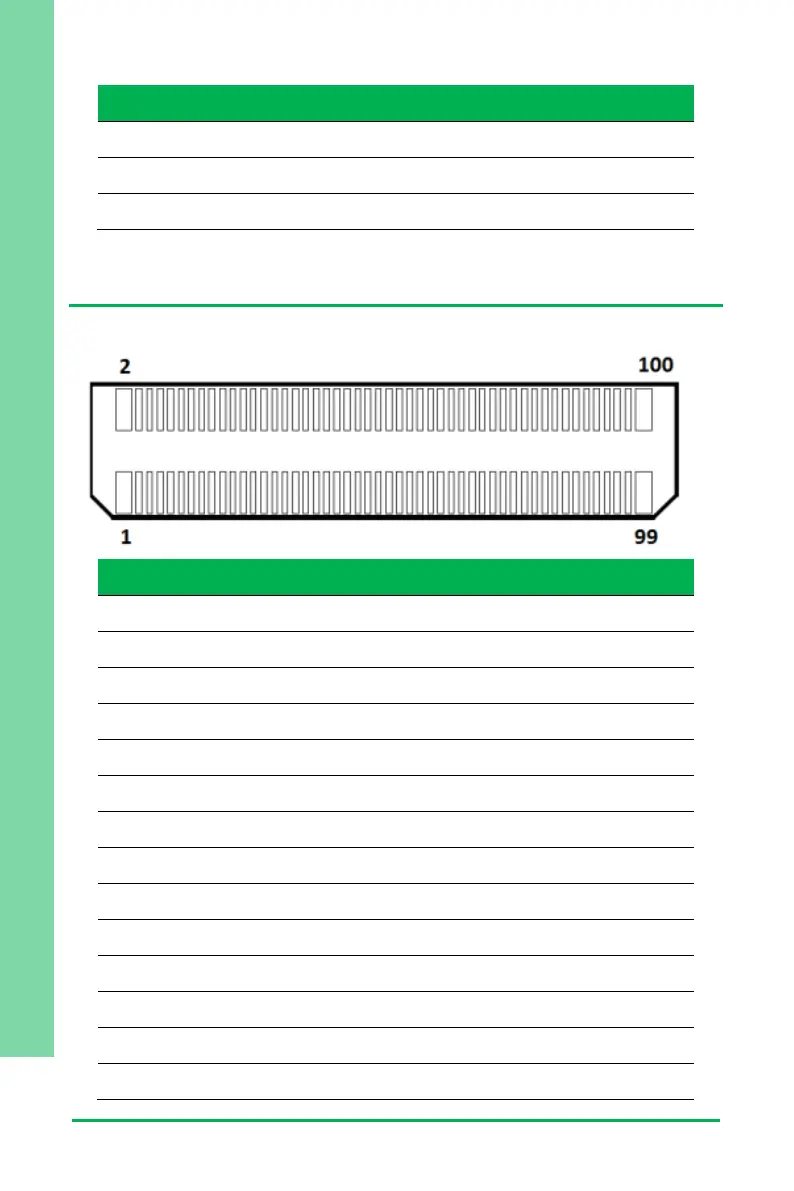

2.3.10 DOCKING I (CN11)
Pin
Signal
Pin
Signal
1
+12V
51
PCIE_REFCLK2_N
2
+12V
52
PCIE_P3_TXN
3
+12V
53
GND
4
+12V
54
GND
5
+12V
55
PCIE_TXP2
6
+12V
56
PCIE_P3_RXP_SWITCH
7
+12V
57
PCIE_TXN2
8
+12V
58
PCIE_P3_RXN_SWITCH
9
NC
59
GND
10
NC
60
GND
11
GND
61
PCIE_RXP2
12
GND
62
SATA_P1_USB3_P5_RXN
13
NC
63
PCIE_RXN2
14
NC
64
SATA_P1_USB3_P5_RXP
