Manual, F/T Sensor, Data Acquisition (DAQ) Systems
Document #9620-05-DAQ.indd-20
Pinnacle Park • 1031 Goodworth Drive • Apex, NC 27539 • Tel: 919.772.0115 • Fax: 919.772.8259 • www.ati-ia.com • Email: info@ati-ia.com
53
10. Carefully attach the back panel to the IFPSMC box. Note: be sure not to pinch any
wire between the back panel and the box. Secure the back panel with the (4) M4
pan head screws. Refer to Figure 4.21.
11. Connect the IFPS card to the backplane by pushing the board in until it seats into
the backplane connector. Connect all the IFPS cards disconnected in step 6.
12. Remove the new IFPS card from the anti-static bag. Note: the serial number on the
IFPS card, which slot number it will be installed in, and the serial number of the
transducer the card will be connected to. Record this information in Table 4.13 for
your records. The serial number on the card should match the serial number on the
transducer.
Table 4.13—IFPSMC IFPS Cards and Transducers
Slot IFPS Card SN Transducer FT SN Notes
Transducer 6
Transducer 5
Transducer 4
Transducer 3
Transducer 2
Transducer 1
13. Connect the transducer connector harness from the connector on the front panel to
the IFPS card, as shown in Figure 4.23.

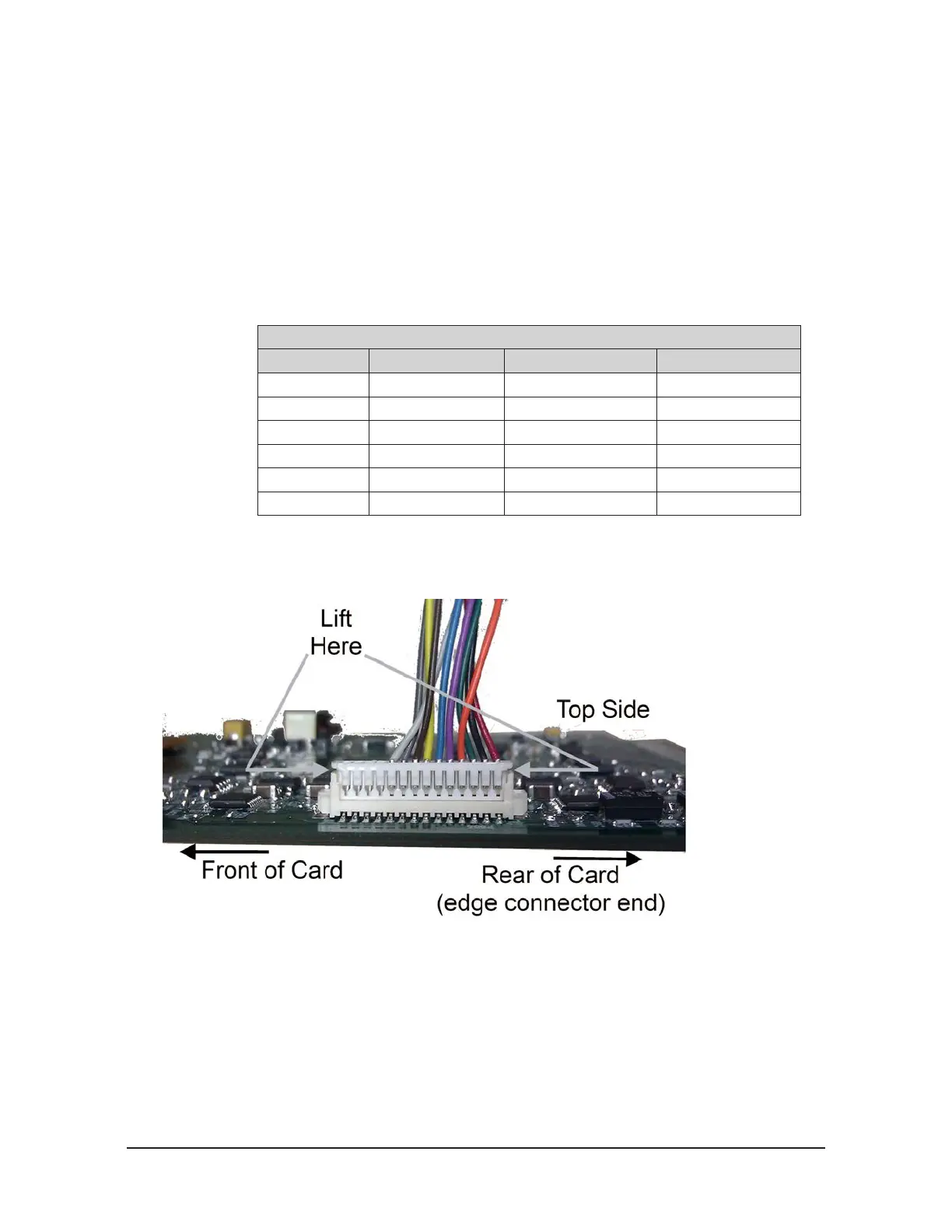

Figure 4.23—Transducer Connector Harness Connection
14. Install the IFPS card into the next available slot of the IFPSMC box. Seat the
new IFPS card into the backplane by pushing the board in until it seats into the
backplane connector.
15. Carefully rotate the front panel back into place on the IFPSMC box. Note: Do not
pinch any wire between the front panel and the box. Secure the front panel using
the (4) M4 pan head screws.
