Duct-Mount Sensor Wiring
The figure below shows the wiring of the sensor duct-mount option, which allows the sensor to be
installed inside of a duct or pipe. The cable plugs into the rear of the sensor holder, and connects to a
terminal block in the transmitter. Do not allow exposed wires contact each other, the printed circuit
boards, or any components.

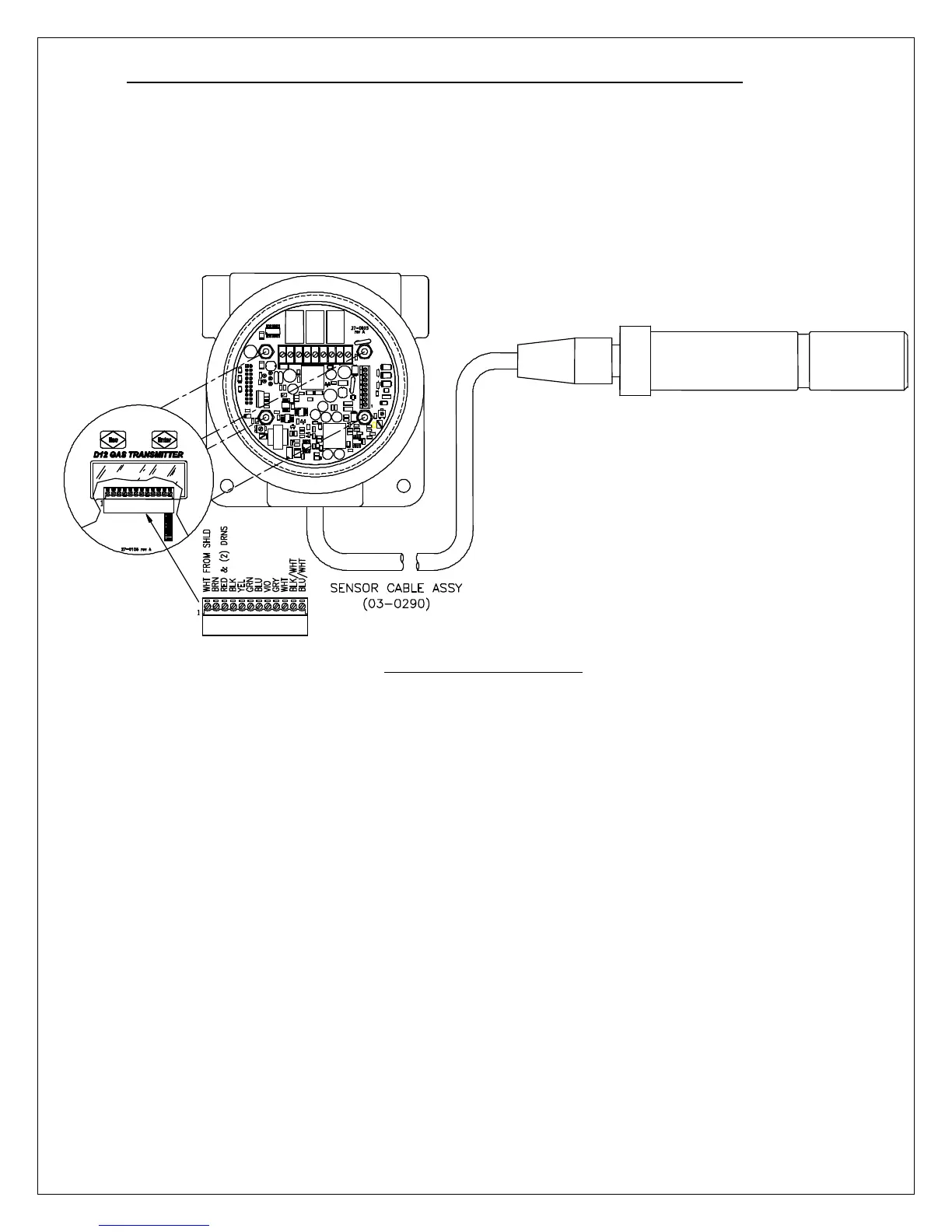

Figure 21 - Duct Mount Wiring
H10 Duct Mount
Sensor Holder
