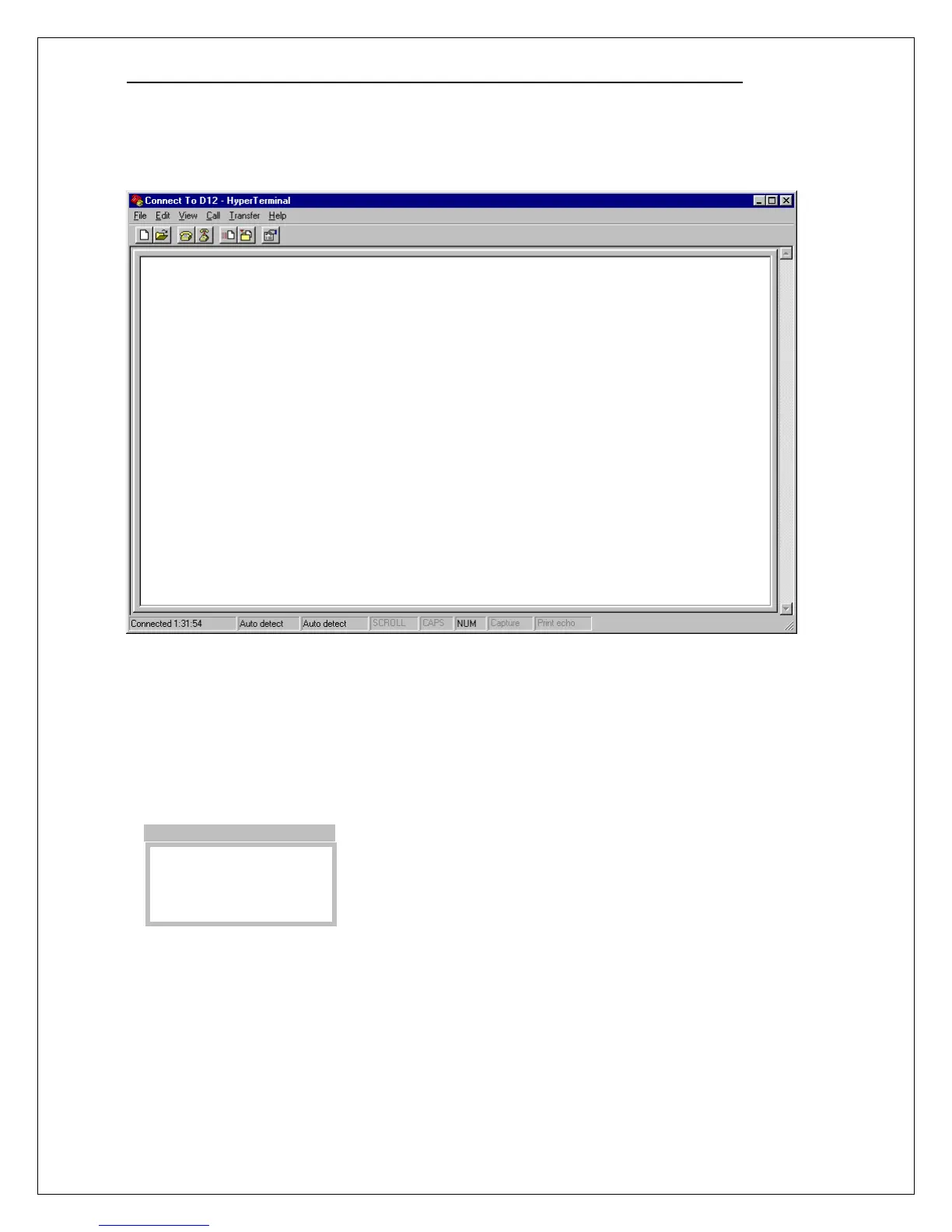

HyperTerminal is now ready to accept a report from the D12 transmitter and save it in a file. Note that
data may appear in the terminal window (shown below) if the Connect To D12 session has been run
previously, but this data will not appear in the file just opened.
Starting the Report
Prior to sending a report to the computer, the system clock should be set and the data logger turned on
to record at least one sample. In addition, the Log_Data variable (in the Menu/Setup/Auto-T/Setup
menu) should be set to NO if you prefer to see the symbol TEST and not gas concentration values
during auto-test.
Configure the communication variables as shown below. Note that 9600 is the highest baud rate
common to the D12 transmitter and the Hyperterminal program.
Protocol=ASCII
Interface=RS232
Baud_Rate=9600
Parametrs=N,8,1
Menu>Setup>System>Commun
To Next Page
