D30 18
Pressure control valve for screed charging/relieving

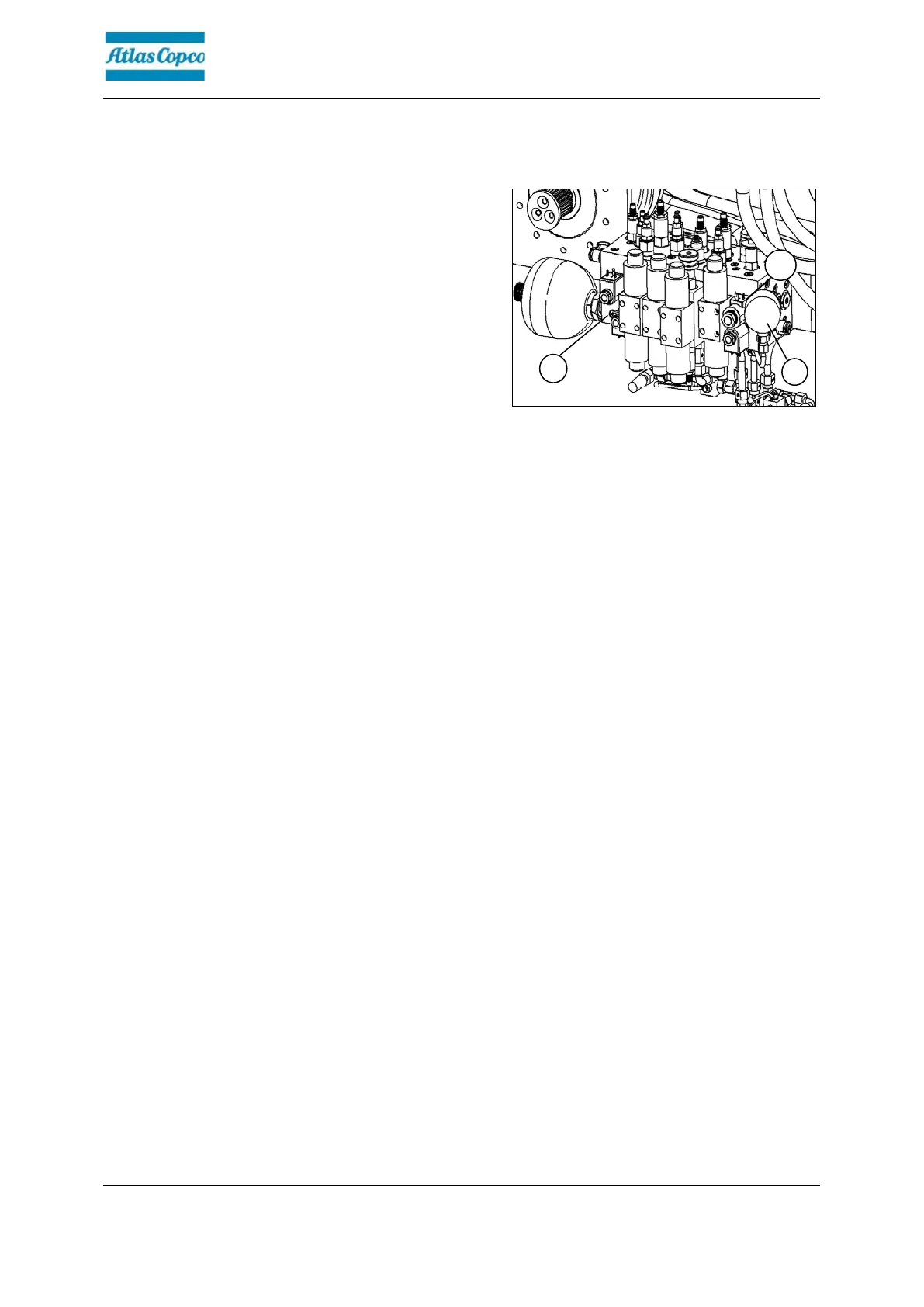

A valve (1) is used to set the pressure for
additional screed charging/relieving.
Switch on and observe the screed
charging / relieving
(See sections ‘Operating panel’,
‘Operation’).
For pressure indication, see manometer.
Adjust the pressure of charging/relieving.
- Adjust the valve (3) clockwise, pressure improves.
- Adjust the valve (3) anti-clockwise, pressure reduces.
Pressure control valve for paving stop with relieving
This is used to set the pressure for "Screed control with paver finisher stop –
floating stop with relieving".
- Actuation: refer to screed charging / relieving (Sections "Operating panel" and
"Operation").
- For pressure indication, see manometer (2).
Manometer for screed charging/relieving
The manometer (2) indicates the pressure for:
- Screed charging/relieving when the drive lever is in the third position (pressure
setting by valve (1)).
