Rubber pads(2)
Always use new bolts and nuts when
installing new rubber pads！
- After removing the worn rubber
pads, the adhesions must be
cleaned from the contact surfaces
of the chain links and the nut
seats.

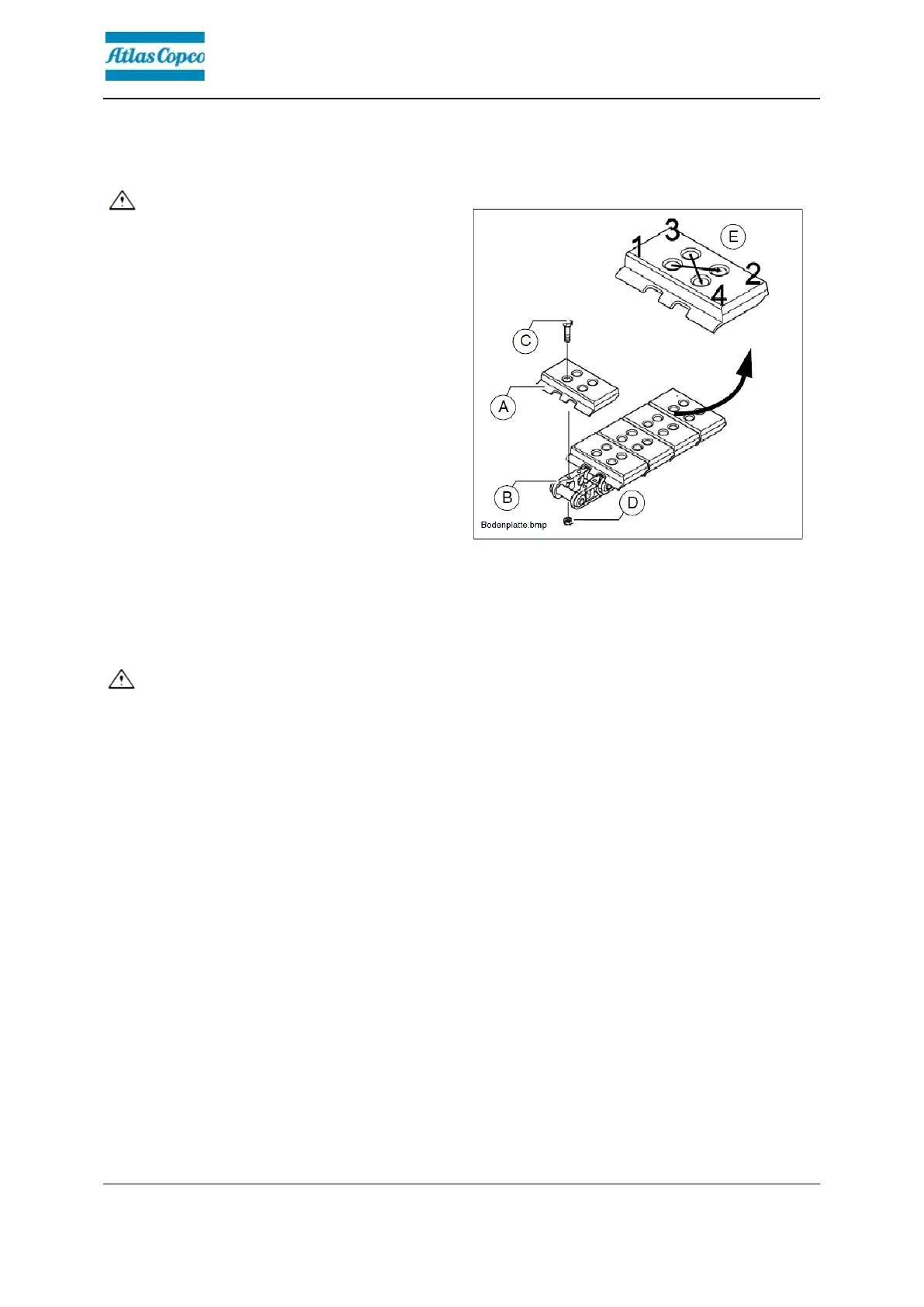

- Place the rubber pad with the front
edge (A) over the chain links’ bolt
eye (B).
- Lubricate the threads and the
contact surfaces benesth the bolt
heads with a thin film of oil grease.
- Insert the bolts (C) into the holes and screw them into the nuts (D) a few turns.
- Tighten the bolts without applying significant torque.
- Tighten the bolts diagonally to the required torque 86Nm.
Check that each bolt has attained the full tightening torque！
