Mounting the distributor box
The distributor box should be
mounted in such a way that
simple wiring to the controller
and the sensors is possible.
The connections for the sensors
should always point down to
prevent water from entering the
distributor box. Inlets which are
not required must be sealed with
dust caps.

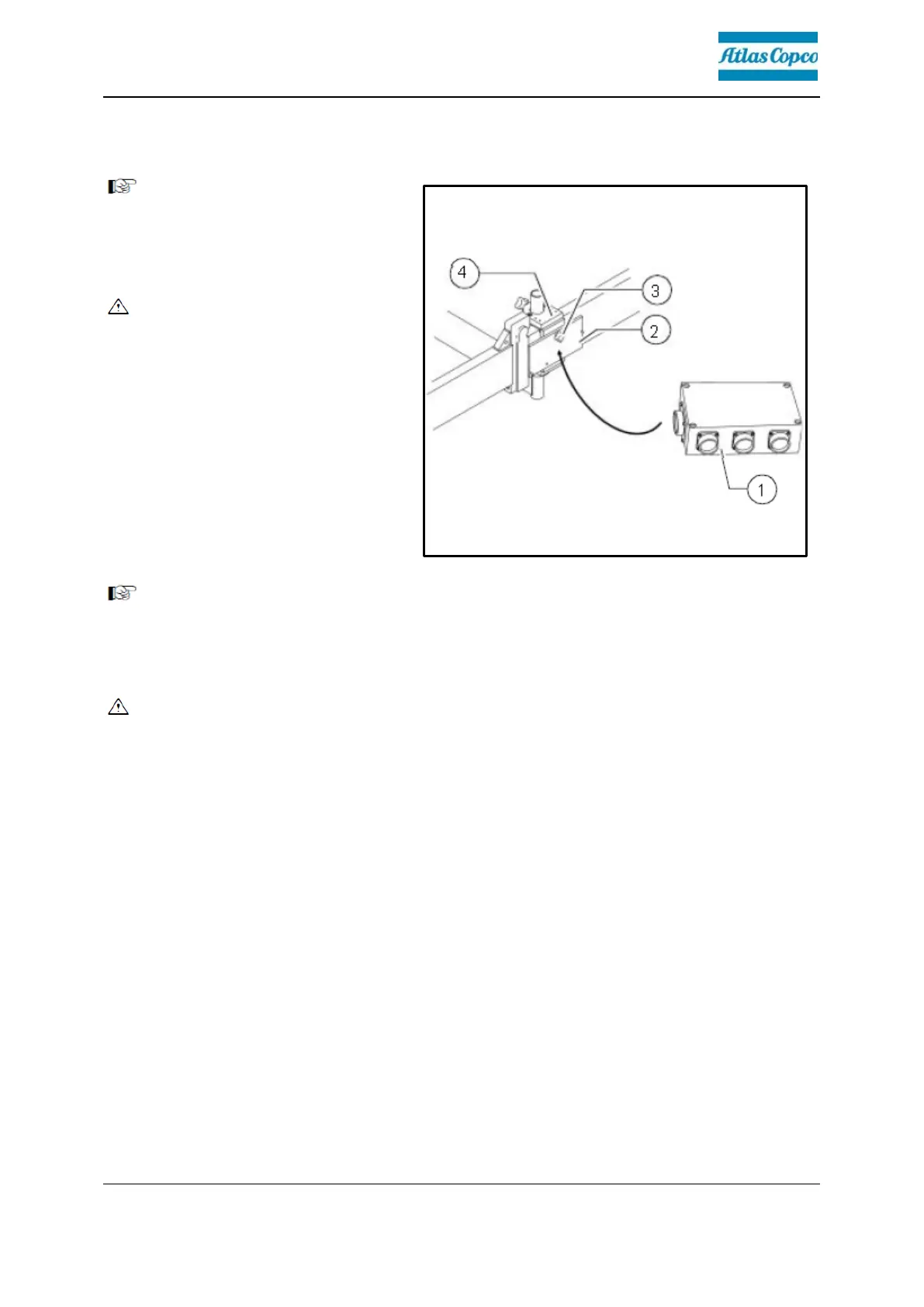

- Allen head bolts are used to
initially mount the distributor
box (1) on the mounting plate
(2).
The input connector always points in the direction of travel.
- Then mount the mounting plate on one of the two sliding brackets (4) on the
centre element using a star handle bolt (3).
Mounting the big ski on the right-hand side of the vehicle:
To meet the requirement that the input connector always points in the direction of
travel, the sliding bracket, on which the distributor box is to be mounted, must be
pushed onto the big ski from the inside to the outside here.
