D30 16
Conveyor limit switches - conventional
version

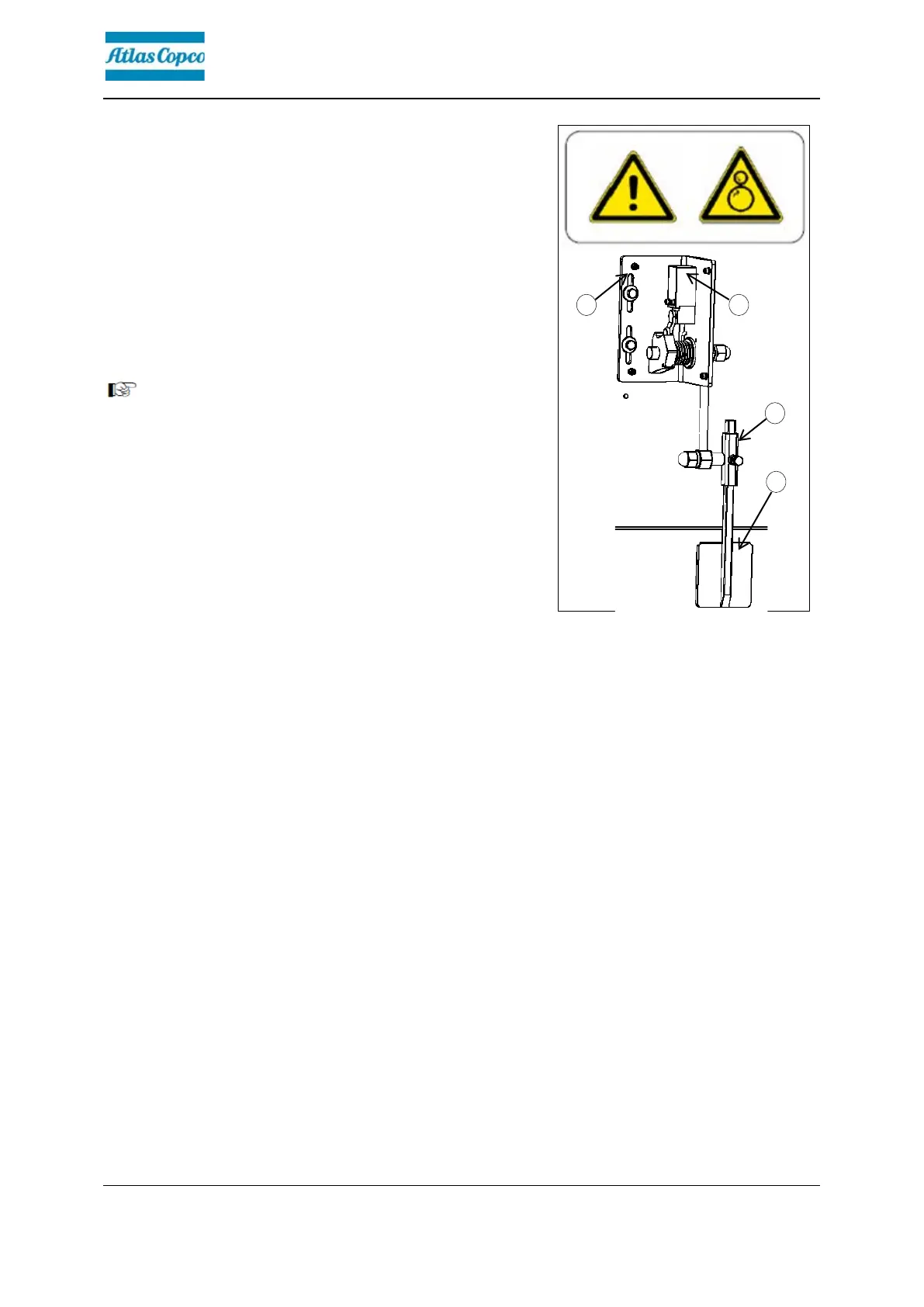

The mechanical conveyor limit switches (1)
control the material flow on the relevant half of
the conveyor.
The conveyors should stop when the material
has roughly reached the area below the auger
tube.
This requires that the auger height has been
adjusted correctly.
- To set the deactivation point, release the two
mounting bolts (2) and set the switch to the
required height.
- Loose bolt (3) and set the height of swing arm
(4).
- After adjusting, retighten all mounting parts
properly.
