The thermistors must be wired in series. The thermistor circuit should be run in
screened cable and must be electrically isolated from earth and all other power and
control circuits.
NOTE
The thermistor input is disabled by default, but activates automatically
when a thermistor is detected. If thermistors have previously been
connected to the EMX4i but are no longer required, use the Thermistor
Reset function to disable the thermistor. Thermistor Reset is accessed via
the Setup Tools.
Reset/Starter Disable
The reset input (10, 11) is normally closed by default. The EMX4i will not perform a
start if the reset input is open. The display will show "Not Ready".
If the reset input opens while the EMX4i is running, the starter will remove power
and allow the motor to coast to stop.
NOTE
The reset input can be configured for normally open or normally closed
operation. Use parameter 7I
Reset/Enable Logic .
Start/Stop
The EMX4 requires two-wire control.

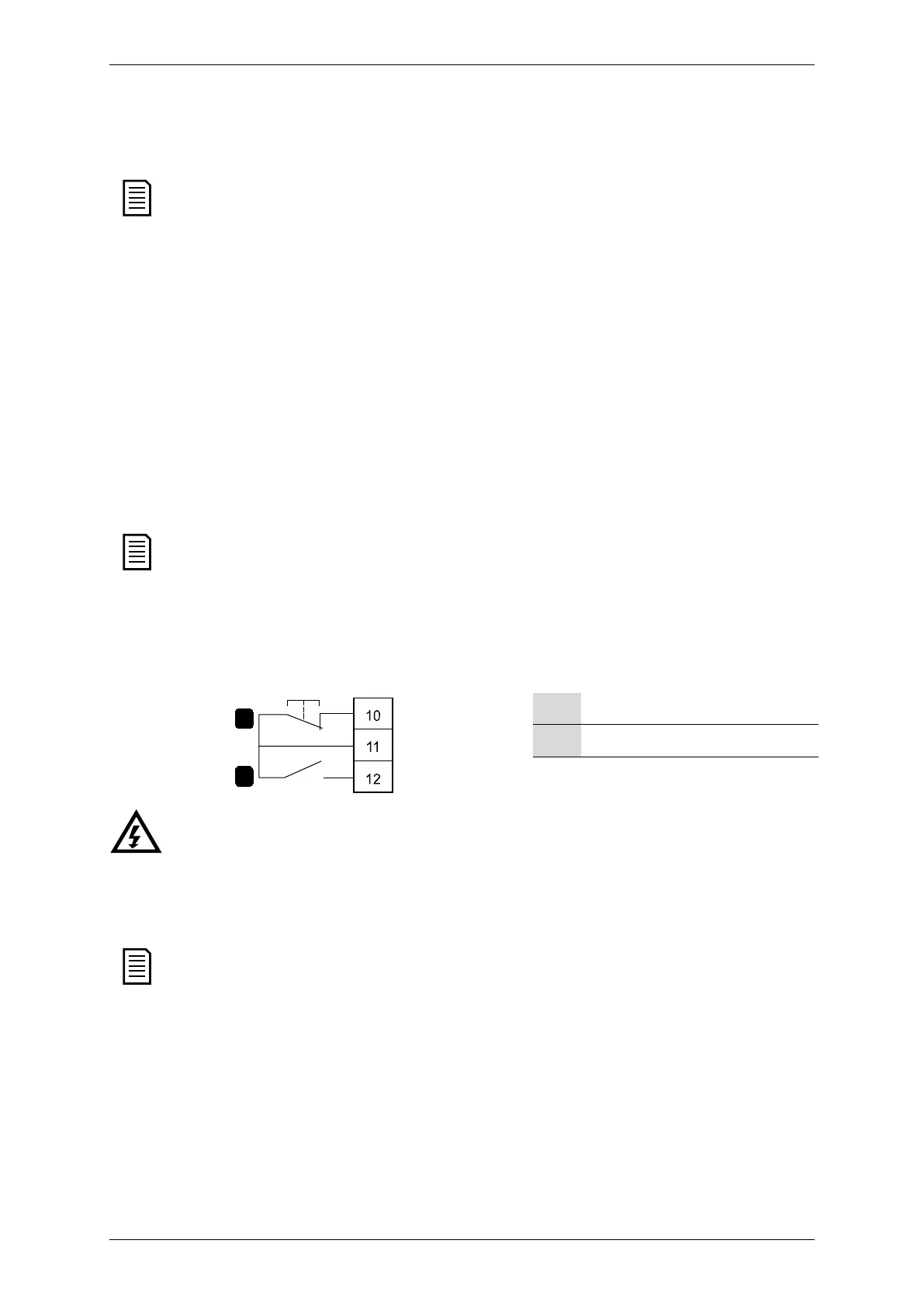

A
B
17622.A
A
Reset
B
Start/Stop
WARNING
If the start input is closed when control voltage is applied, the starter will
attempt to start.
Check that the start/stop input is open before applying control voltage.
NOTE
The EMX4i will only accept commands from the control inputs if parameter
1A
Command Source is set to Digital Input.
Programmable Inputs
The programmable inputs (13, 14 and 13, 15) allow external equipment to control
the starter.
The operation of the programmable inputs is controlled by parameters 7A~7H.
