AuCom EMX4i - 4.3 Inputs

INSTALLATION
710-14888-00C EMX4i User Manual 25
4.3 Inputs
CAUTION
The control inputs are powered by the soft starter. Do not apply external
voltage to the control input terminals.
NOTE
Cables to the control inputs must be segregated from mains voltage and
motor cabling.

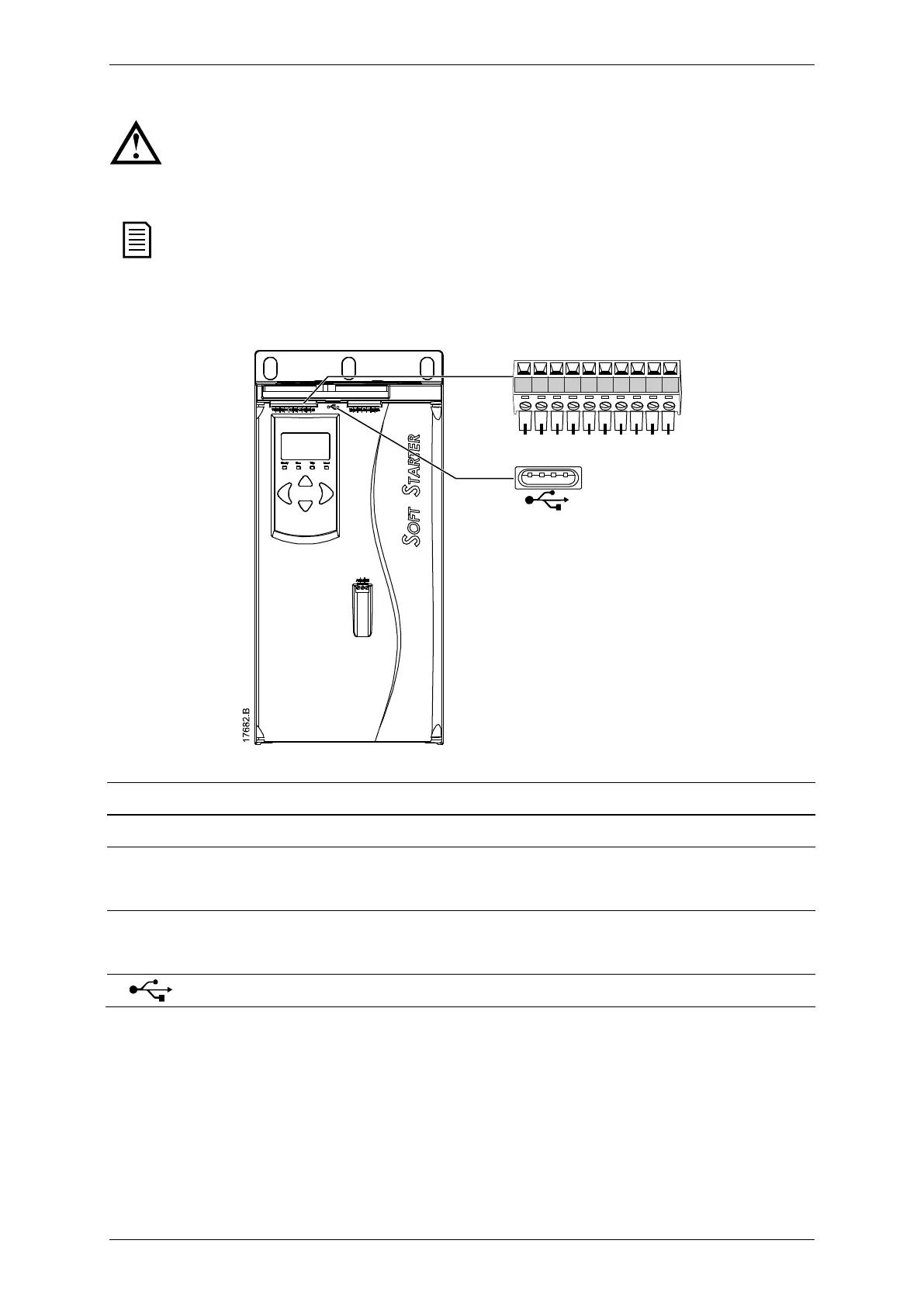

Input Terminals
B4 B5 10 11 12 13 14 15 21 22
B4, B5
Motor thermistor input
10, 11 Reset input
11, 12 Start/stop input
13, 14 Programmable input A
(default = Input Trip (N/O))
13, 15 Programmable input B
(default = Input Trip (N/O))
USB port
Motor Thermistor
Motor thermistors can be connected directly to the EMX4i. The soft starter will trip
when the resistance of the thermistor circuit exceeds approximately 3.6 kΩ or falls
below 20 Ω.
