AUDAC M2 User Manual

10

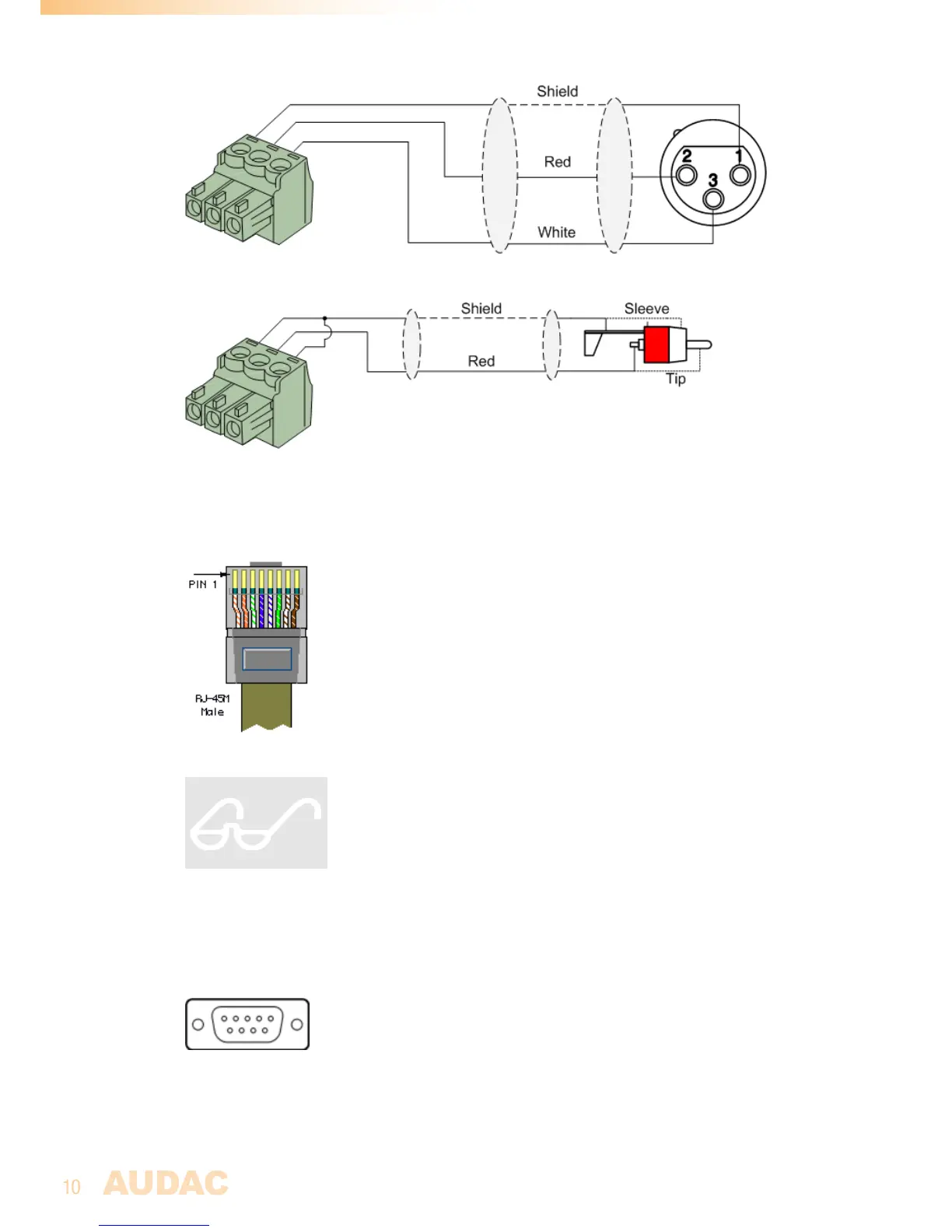

Forbalancedlineoutputconnections:

Forunbalancedlinein&outputconnections:
RJ45 (RS485, Digital audio, +24V DC):
ForconnectiontoWallPanels&PagingConsoles
Pin 1 White-Orange  AUDIOTXA
Pin 2 Orange  AUDIOTXB
Pin 3 White-Green  +24VDC
Pin 4 Blue   RS485A
Pin 5 White-Blue  RS485B
Pin 6 Green   GND
Pin 7 White-Brown  AUDIORXA
Pin 8 Brown   AUDIORXB
ATTENTION
Thetwistedpaircablingmustalwaysbe‘straight’.Incaseof
self-madecablingitmustbewiredasdescribedabove,toensure
properfunctioningofthesystem.
RS232 (serial connection interface):
Forconnectionwithhomeautomationsystems,orotherremotecontrolequipment
Connection StandardRS232
PIN 2 M2TX
PIN 3 M2RX
PIN 5 GND
   Settings  19200Baud
      8Bit
      1Stopbit
      Noparity
      NoHandshaking

AUDAC M2 Specifications

General

Monitor out	1
Number of Euroblock input connectors	20
Number of Euroblock output connectors	24
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	20 W
DJ mixer	No
Rack capacity	19U
Rack mounting	Yes
Channels quantity	- channels
Digital sound processing	- bit
Equalizer bands quantity	5

Weight and Dimensions

Depth	350 mm
Width	482 mm
Height	132 mm
Weight	8850 g
