AUDAC M2 User Manual

31
3/7 Band parametric EQ
Anindividualconfigurablethreeorsevenbandsparametricequalizercanbeappliedtoanyof
thein-andoutputs.Theequalizersettingscanbefoundinthein-andoutputsconfiguration
menu,andcanequalisethesoundin3bandswithafixedfrequencyandbandwidthor7
bandswithanadjustablefrequencyandbandwidth.
Ashortcuttotheinputequalizersisprovidedinthe‘Outputsettings’screenbypressingthe
‘EQ’buttonsbelowtheinputfaders.
3 Band Equalizer
Athree-bandequalizerwithaQfactorof0.4andcenterfrequenciesof90Hzforthe
LOW,1.2kHzfortheMIDand12kHzfortheHIGHbandsisstandardenabledfortheM2.
Theamplificationandattenuationofeachbandcanbeadjustedwithinarangeof+12dB
to-12dB.

Atthebottomofthewindow,isabutton“7bandEQ”provided.Whenpressed,a7band
equalizerwithadjustablefrequencyandQ-factorwillemerge.

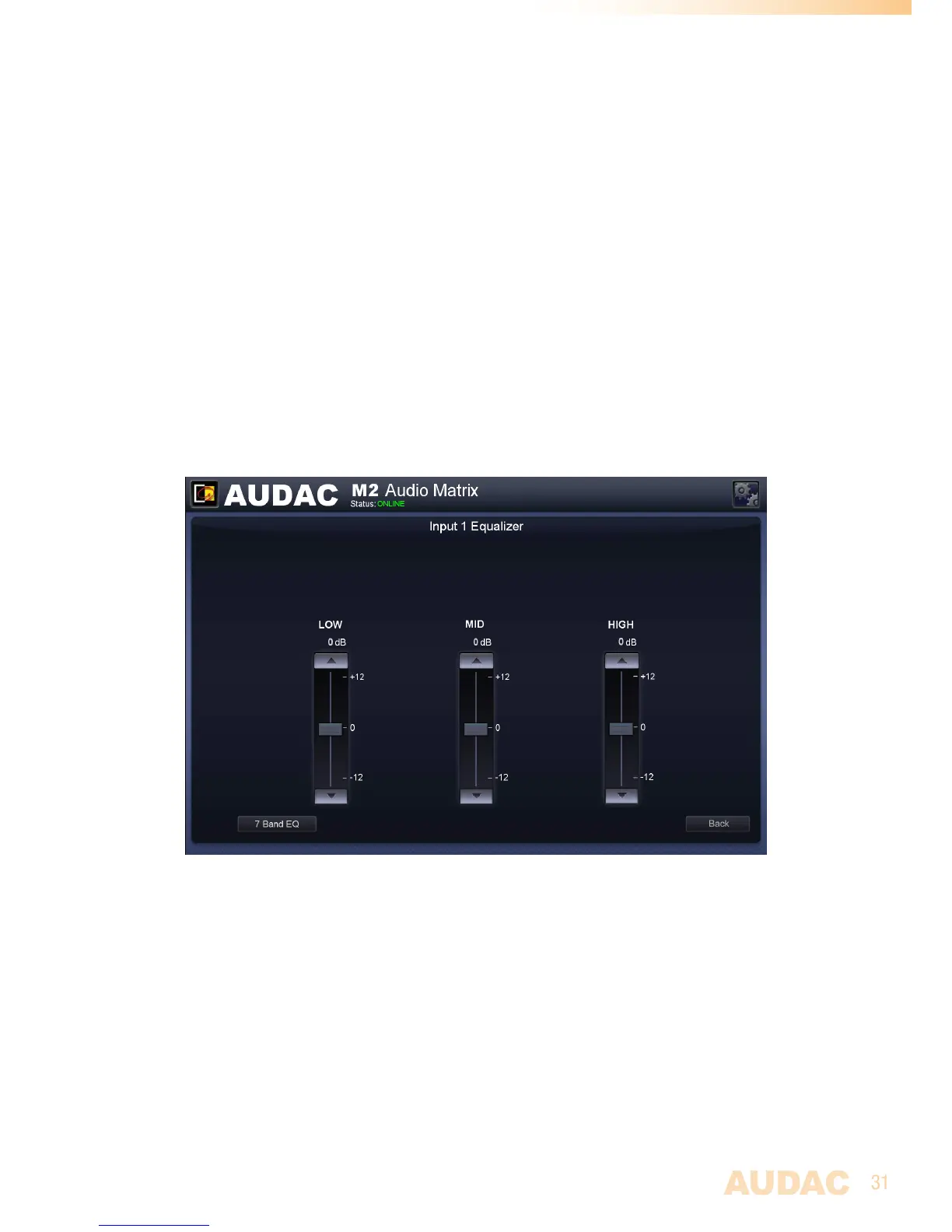

M2 Three band equalizer
7 Band Equalizer
Theseven-bandequalizerfrequenciesareinfinitelyadjustablewithinarangeof0Hz
to20kHz,whiletheQ-factor(bandwidth)isadjustablewithinarangeof0.1to15.The
amplificationorattenuationofeachbandcanbeadjustedwithinarangeof+12dBto-12
dB.
ByadjustingtheQ-factorandFrequencyparametersofeachbandthepartoftheaudio
spectrumintendedtobeprocessedcanbedefinedaccurately.

AUDAC M2 Specifications

General

Monitor out	1
Number of Euroblock input connectors	20
Number of Euroblock output connectors	24
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	20 W
DJ mixer	No
Rack capacity	19U
Rack mounting	Yes
Channels quantity	- channels
Digital sound processing	- bit
Equalizer bands quantity	5

Weight and Dimensions

Depth	350 mm
Width	482 mm
Height	132 mm
Weight	8850 g
