Chapter 2
Front & rear panel
ThefrontpaneloftheM2onlycontainsapowerbuttonwithLEDpowerindicator,twoUSB
connectionports,anSD/MMCmemorycardslotandanareatoinstallanoptionaltouch-
screeninterface.
Afterpressingthepowerbutton,thesystemstart-upprocedure(whichonlytakesafew
seconds)willtakeplace.Duringthestart-upprocedure,thepowerLEDwillblink.Afterthe
blinking,theLEDwillconstantlyilluminateandthesystemisfullyreadyforoperation.
TheprovidedUSBportsarebothA&Btypeports.UsingtheB-typeport,thesystemcan
beconnectedtoacomputerforperformingupdatestothesystemfirmware.TheSD/MMC
memorycardslotcanbeusedforthesamepurposeandalsoprovidesthepossibilitytoload
andsavespecificsystemconfigurationfiles.Audiofilesstoredonthememorycardcanbe
retrievedatpredefinedmomentsorexternallytriggered.
Theprovidedrectangularareacanbeusedtoinstalltheoptionaltouchscreendisplaykit
(M2DIS)whichcanbeusedtocontrolandconfiguringallM2functions.Theoptionalmodule
existsofa7’touchcreenwitha16/9widescreenaspectratioandaresolutionof800x480
pixels.Anintegratedprocessorhandlesthecommunicationwiththemainsystemprocessor.

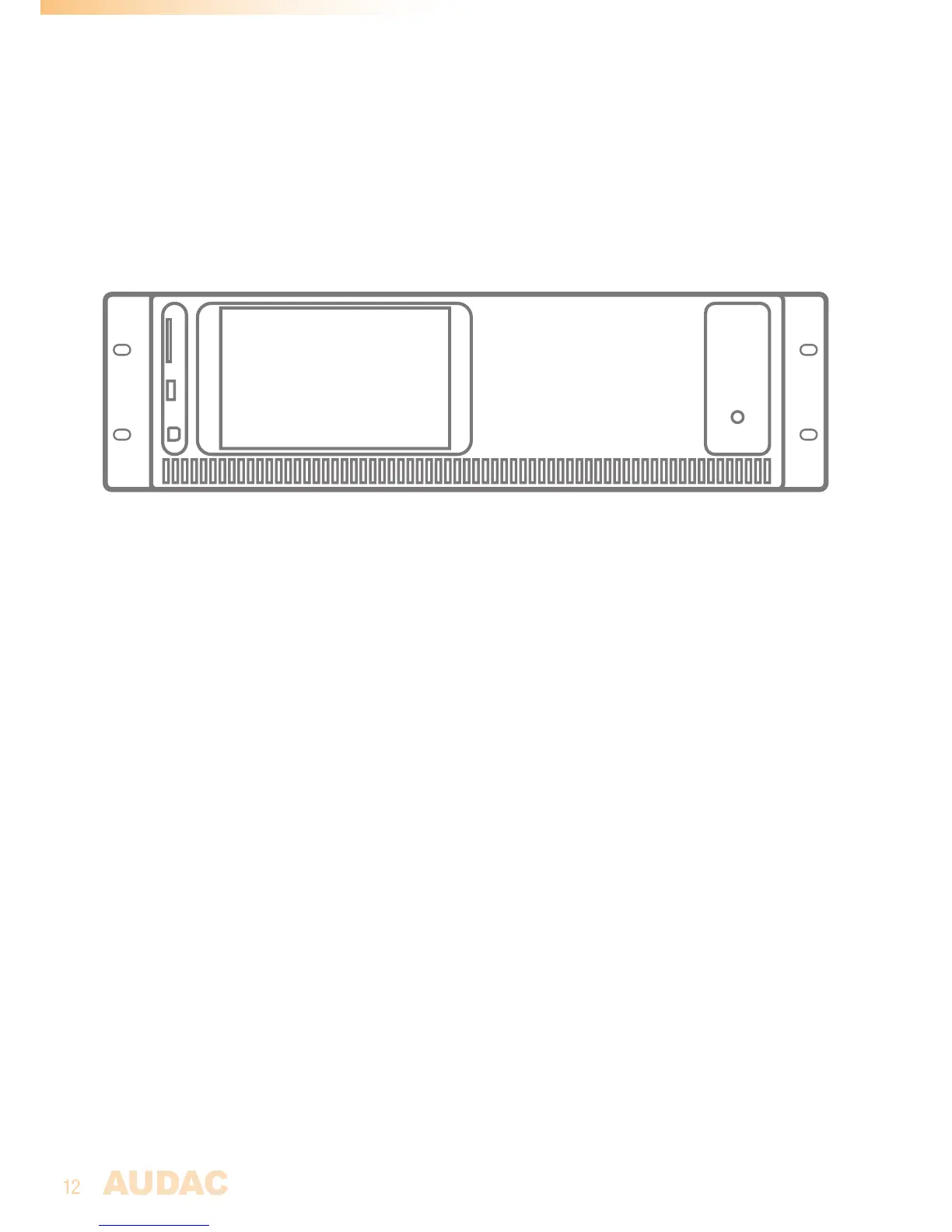

Front Panel overview
M2

AUDAC M2 Specifications

General

Monitor out	1
Number of Euroblock input connectors	20
Number of Euroblock output connectors	24
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	20 W
DJ mixer	No
Rack capacity	19U
Rack mounting	Yes
Channels quantity	- channels
Digital sound processing	- bit
Equalizer bands quantity	5

Weight and Dimensions

Depth	350 mm
Width	482 mm
Height	132 mm
Weight	8850 g
