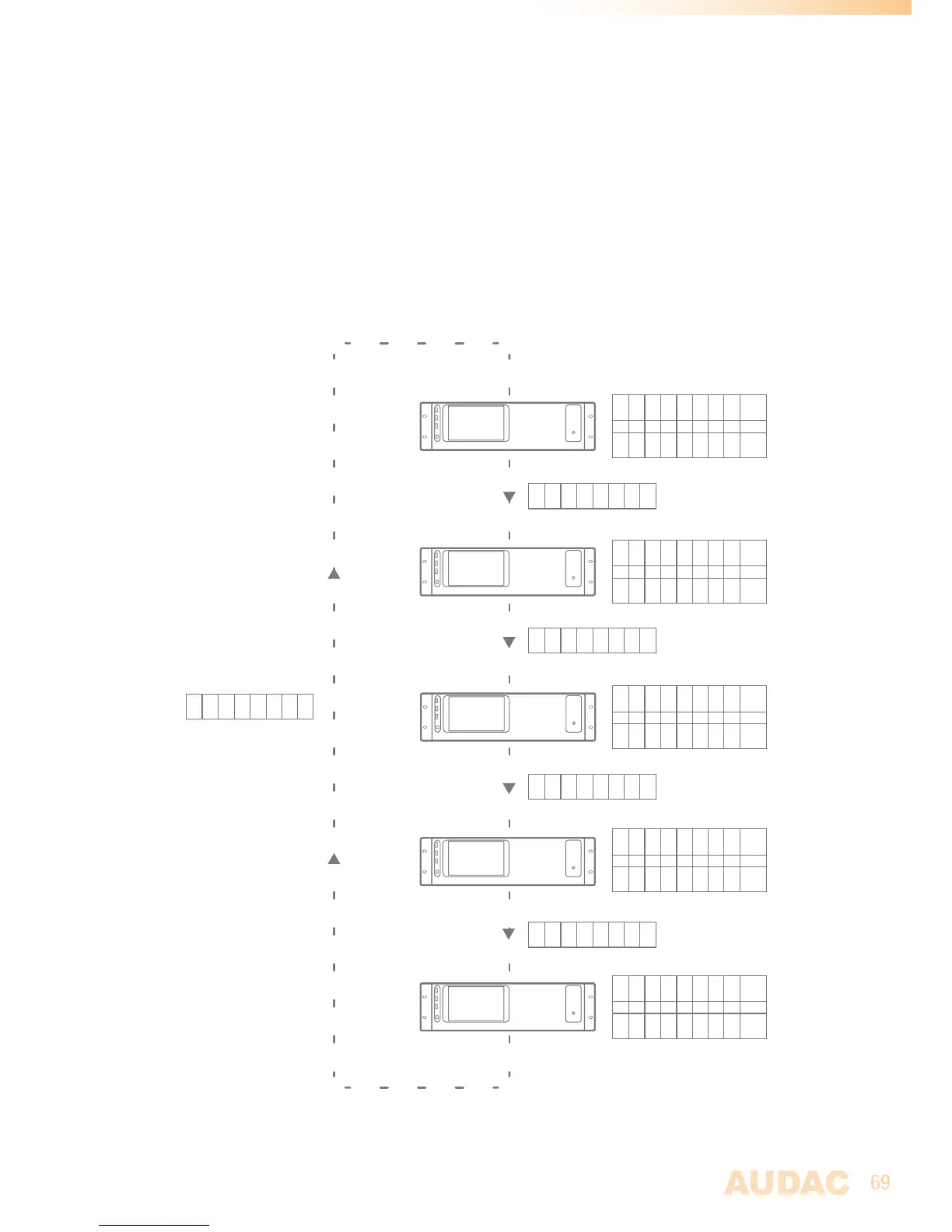

Fiber audio flow
Thediagramshownbelowshowsanaudioflowofanexampleprojectwith5devicescascaded
throughthefiberinterconnectioninterfacewhereeverydevicehasauniqueaddress.Nextto
everydeviceisshownwhichsignalsarereceivedandtransmittedoverthefiber,whilenext
totheconnectionlineisshownwhichsignalsthefiberiscarryingatthispoint.
Paging
R005(1) R005(2) R001(1) R003(1) R004(1) R005(4) R005(3)
In
Fb 1 Fb 2 Fb 3 Fb 4 Fb 5 Fb 6 Fb 7 Fb 8 Channel
Paging
R005(1) R005(1) R001(1) R003(1) R004(1) R001(2) R005(3)
Out
R2
R2
R2
R2
R2
M001
M002
M003
M004
M005
Paging
R005(1) R005(2) R001(1) R003(1) R004(1) R001(2) R005(3)
In
Fb 1 Fb 2 Fb 3 Fb 4 Fb 5 Fb 6 Fb 7 Fb 8 Channel
Paging
R005(1) R005(1) R001(1) R003(1) R002(1) R002(2) R005(3)
Out
Paging
R005(1) R005(2) R001(1) R003(1) R002(1) R002(2) R005(3)
In
Fb 1 Fb 2 Fb 3 Fb 4 Fb 5 Fb 6 Fb 7 Fb 8 Channel
Paging
R005(1) R005(1) R001(1) R003(1) R002(1) R003(2) R005(3)
Out
Paging
R005(1) R005(2) R001(1) R003(1) R002(1) R003(2) R005(3)
In
Fb 1 Fb 2 Fb 3 Fb 4 Fb 5 Fb 6 Fb 7 Fb 8 Channel
Paging
R005(1) R005(1) R001(1) R003(1) R004(1) R004(2) R005(3)
Out
Paging
R005(1) R005(2) R001(1) R003(1) R004(1) R004(2) R005(3)
In
Fb 1 Fb 2 Fb 3 Fb 4 Fb 5 Fb 6 Fb 7 Fb 8 Channel
Paging
R005(1) R005(1) R001(1) R003(1) R004(1) R005(4) R005(3)
Out
Paging
R005(1) R005(1) R001(1) R003(1) R004(1) R001(2) R005(3)
Paging
R005(1) R005(1) R001(1) R003(1) R002(1) R002(2) R005(3)
Paging
R005(1) R005(1) R001(1) R003(1) R002(1) R003(2) R005(3)
Paging
R005(1) R005(1) R001(1) R003(1) R004(1) R004(2) R005(3)
Paging
R005(1) R005(1) R001(1) R003(1) R004(1) R005(4) R005(3)
Diagram
Fiber audio flow

AUDAC M2 Specifications

General

Monitor out	1
Number of Euroblock input connectors	20
Number of Euroblock output connectors	24
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	20 W
DJ mixer	No
Rack capacity	19U
Rack mounting	Yes
Channels quantity	- channels
Digital sound processing	- bit
Equalizer bands quantity	5

Weight and Dimensions

Depth	350 mm
Width	482 mm
Height	132 mm
Weight	8850 g
