AUDAC M2 User Manual

39
Toremoveevents,clickonthecorrespondingeventinthe‘ACTIONS’windowandmake
suretheactionyouwanttoremoveishighlighted.Subsequently,the‘Remove’buttoncan
bepressedandtheactionwillberemoved.
Settings >> Paging Volume
InthePagingVolumewindow,thepagingvolumeforeachindividualoutputcanbeset
usingthedropdownlistsdisplayednexttotheoutputnames.Thepagingvolumecanbe
setinstepsof-1dB,startingwith0dB,goingto-∞.Whenthevolumeissetto0dB,
announcementsforthecorrespondingoutputswillbemadeonmaximumvolume.

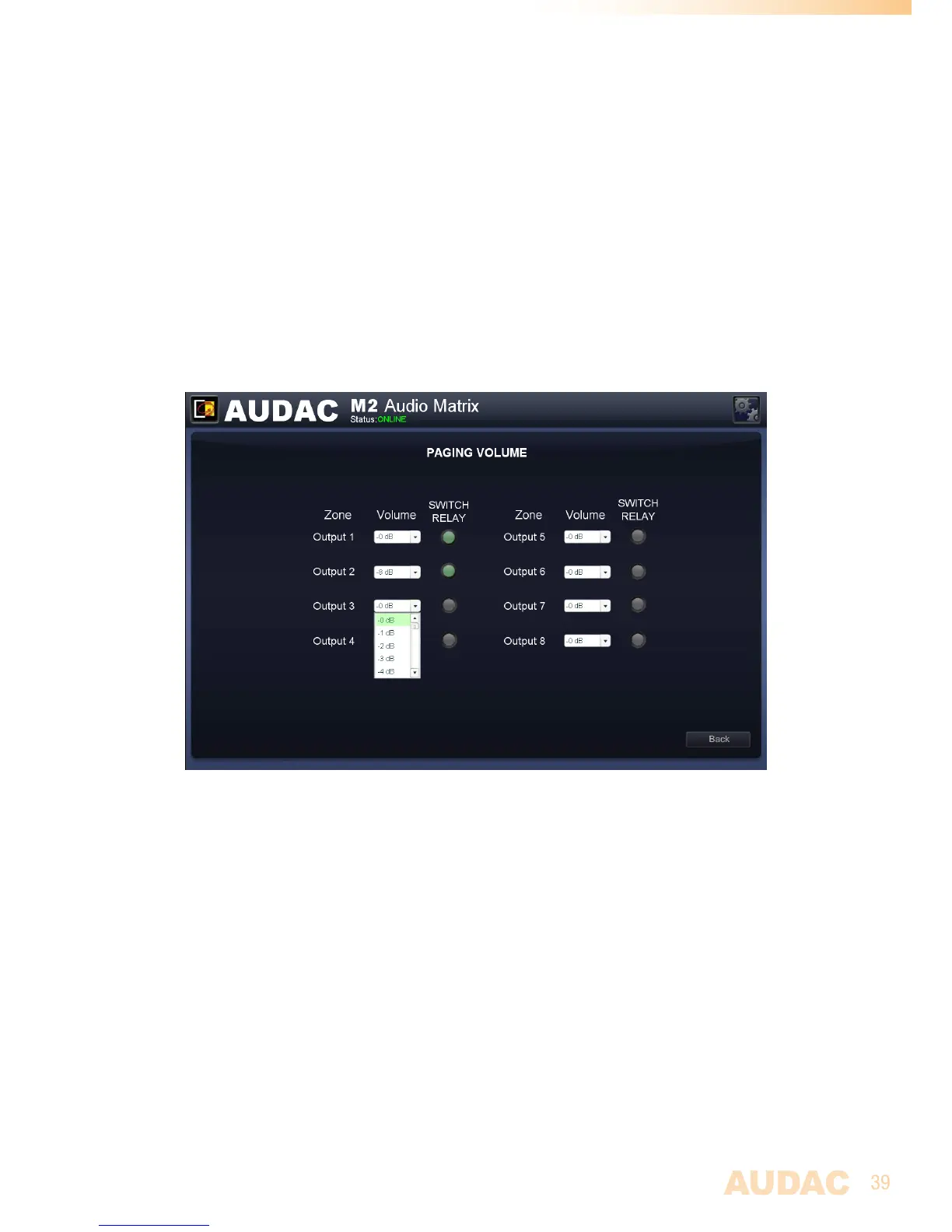

M2 Paging Volume
Switch relay
Besidesthepagingvolumeselection,thiswindowalsocontainsa‘SwitchRelay’button
foreveryoutput.Thisbuttondetermineswhetherornottherelayforthecorresponding
outputshouldbeswitchedautomaticallyincaseapagingannouncementismadeonthis
output.Thiscanbeusefulforbypassingexternal100Vvolumecontrollers,activating
emergencylights,...
Settings >> Priority settings
Theprioritysettingsmenumakesitpossibletoconfiguretheprioritychannels.Onthetop
ofthiswindow,allpriorityinputsaredisplayedgoingfromPriority1toPriority4.
Priority input selection
Theprioritychannelscanbeselectedbythebuttonsonthetopofthewindowandcanbe
enabledbyclickingthe‘Enabled’button.

AUDAC M2 Specifications

General

Monitor out	1
Number of Euroblock input connectors	20
Number of Euroblock output connectors	24
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	20 W
DJ mixer	No
Rack capacity	19U
Rack mounting	Yes
Channels quantity	- channels
Digital sound processing	- bit
Equalizer bands quantity	5

Weight and Dimensions

Depth	350 mm
Width	482 mm
Height	132 mm
Weight	8850 g
