Incasethevolumeofthe‘Slave’outputshouldbehigherthanthevolumeofthe‘Master’
zone,thefadershouldbemovedupwards(positive)whilethefadershouldbemoved
downwards(negative)incasethevolumeofthe‘Slave’outputshouldbelowerthanthe
volumeofthe‘Master’output.Incasethefaderisincentralposition(zero)thevolumeof
theMasterandSlavezonewillbeequal.
Settings >> Global scenes configuration
Besidestheseparatescenesmakingitpossibletorecallallmixingpresetsforonesingle
output,there’salsothepossibilitytogroupmultiplepresets(foralloutputs)into‘Global
Scenes’.Usingthe‘GlobalScenes’,Mixingpresetsforalloutputscanberecalledbyone
singleclickoraction.TheM2providesthepossibilityforcreatingupto8globalscenes.
Globalscenescanbetriggeredbyexternalsignalssuchasoneofthevariouscontact
inputs,atthepresenceofanaudiosignalononeofthemanyaudioinputs,whenmanually
triggeredbyacommandorwhenselectedinthedropdownlistintheuserinterface.

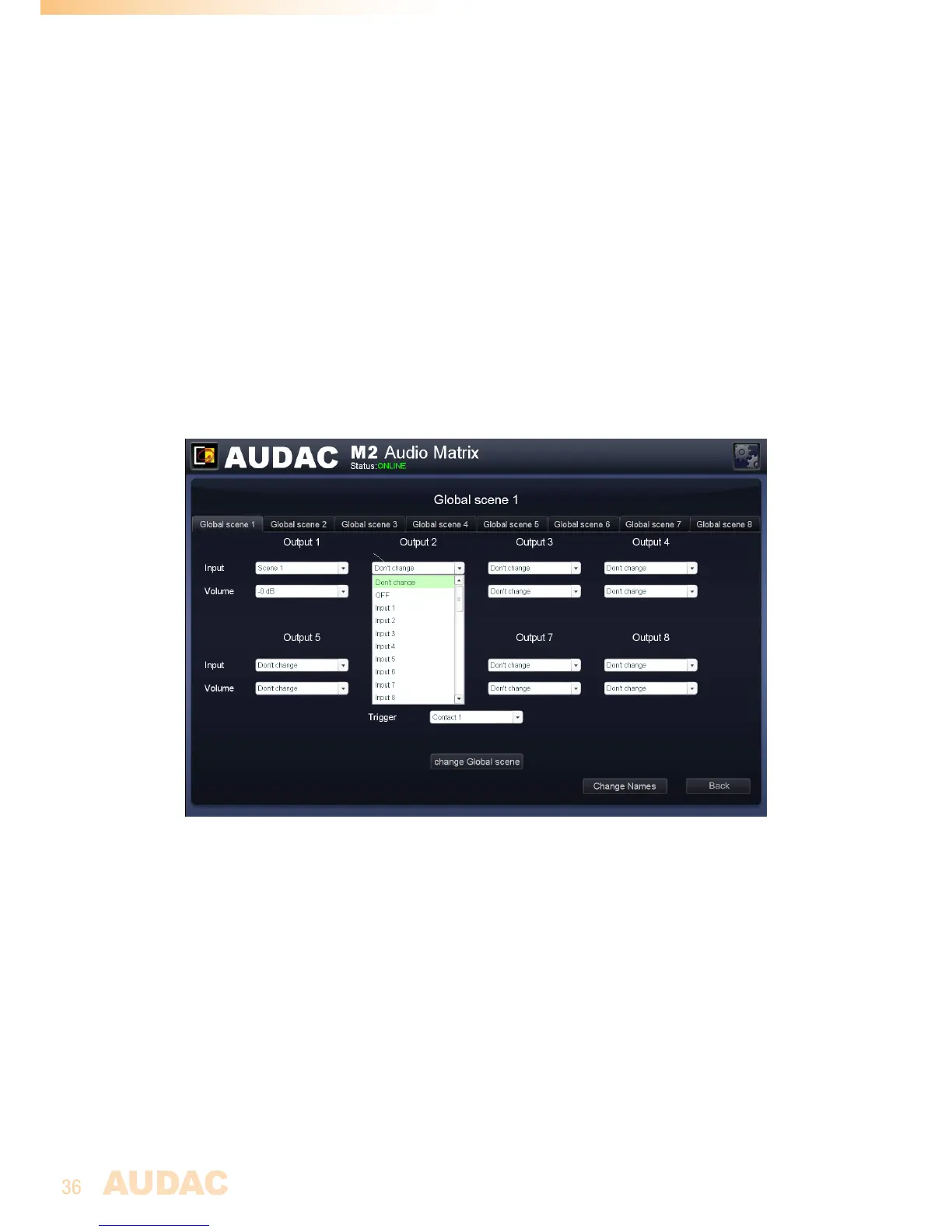

M2 Global scenes
Configuration
Foreachscene(GlobalScene1to8)aselectiontabisprovidedonthetopofthis
window.Eachtabcontains8sections,oneforeveryoutput,containingtwodropdownlists
(InputandVolume).
Input
Usingthe‘Input’dropdownlist,thedesiredsignaluponsceneactivationcanbeselected
forthecorrespondingoutput.Thestandardvalueissetto‘Don’tchange’meaningthe
signalforthecorrespondingoutputwon’tchangeuponsceneactivation.Incase‘Off’
isselected,theoutputwillbeswitchedoff.Incaseoneoftheaudioinputs(Direct,Wall
panelorFiber)willbeselected,theselectedsignalwillbepresentattheoutput.Thelast8
selectableoptionsarethescenes,whicharethemixingpresetswhichcanbeindividually
definedforeachseparateoutputandcanberecalledusing‘Globalscenes’.

AUDAC M2 Specifications

General

Monitor out	1
Number of Euroblock input connectors	20
Number of Euroblock output connectors	24
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	20 W
DJ mixer	No
Rack capacity	19U
Rack mounting	Yes
Channels quantity	- channels
Digital sound processing	- bit
Equalizer bands quantity	5

Weight and Dimensions

Depth	350 mm
Width	482 mm
Height	132 mm
Weight	8850 g
