AUDAC M2 User Manual

42
Settings >> System Configuration
Inthiswindow,anoverviewforseveralstandardconfigurationfunctionssuchasNetwork
settings,Passwordsettings,TimeSettings,AddressSettingsandFactorySettingsis
shown.

Simplyclickthebuttontoproceedtothecorrespondingconfigurationfunctions.

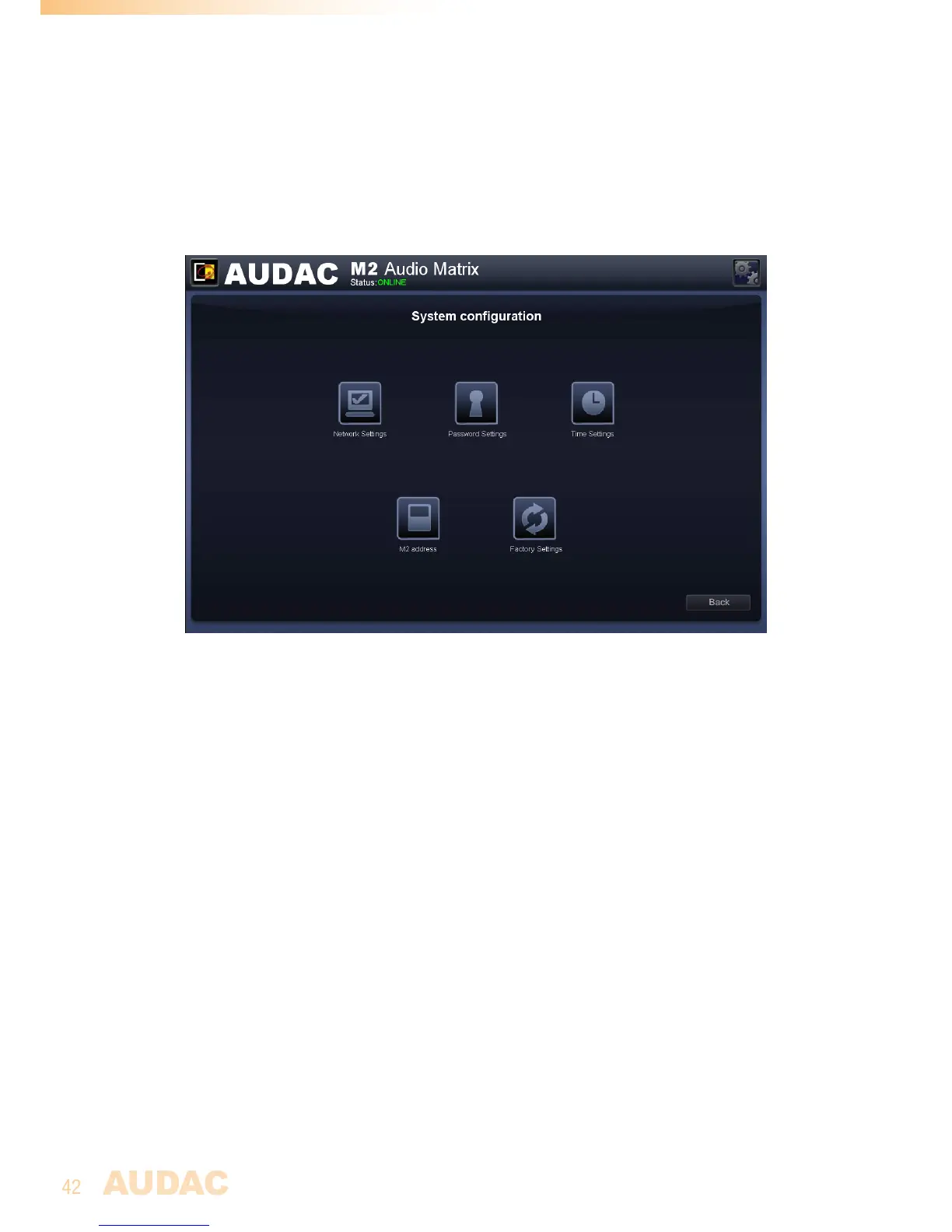

M2 System configuration
Settings >> System >> Network
Inthiswindow,thenetworksettingsoftheM2canbeadjusted.TheIPaddresscanbeset
manuallyorcanbeautomaticallyassignedbyaDHCPserver.
TheIPaddressisstandardsetto192.168.0.190andthesubnetmaskisstandardsetto
255.255.255.0.
TheIPaddresscansimplybechangedbychangingthevalueinthecorrespondingfield.
AftertheIPaddressischanged,youwillautomaticallyberedirectedtothenewlychanged
IPAddress.
TheDHCPfunctioncanbeactivatedbyclickingthecorrespondingbutton,whichwillbe
showninGreenwhenenabled.TheenteredIPaddresswillhavenoinfluencewhenthe
DHCPfunctionisenabled.
Clickthe‘OKbutton’toconfirmthenetworksettings.

AUDAC M2 Specifications

General

Monitor out	1
Number of Euroblock input connectors	20
Number of Euroblock output connectors	24
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	20 W
DJ mixer	No
Rack capacity	19U
Rack mounting	Yes
Channels quantity	- channels
Digital sound processing	- bit
Equalizer bands quantity	5

Weight and Dimensions

Depth	350 mm
Width	482 mm
Height	132 mm
Weight	8850 g
