Chapter 4
User interface & configuration
Togainaccesstothecontrolandconfigurationsettings,theM2shouldbeconnectedtoa
computeroranEthernetLANnetwork.Formoreinformationaboutnetworkconnections
andsettingsseeIPbasicsinchapter9.
Thestandard(factorydefault)IPaddressoftheM2is192.168.0.190,makesurethis
addressiswithintheIPrangeoftheconnectedEthernetLANnetwork(subnetmask
255.255.255.0).IfthedefaultnetworkaddressisnotwithinrangeofyourLANnetwork,
contactyournetworkspecialist.ThenetworkaddresscanbechangedwiththeStandard
WebBasedUserInterfacebutthereforeanetworkconnectionhastobemadefirst!
Anydevice(PC,Laptop,...)withawebbrowserandtheAdobeFlashPlayer9.0(or
higher)canbeusedtocontroltheM2webbaseduserinterface.
Theflashplayercanbedownloadedfromhttp://get.adobe.com/flashplayer/
Formobiledevices,suchasPDA’s,smartphonesoreveniPhonesoriPads,special
applicationsaredevelopedtocontrolthestandardfunctionsoftheM2Mixer.
Open the user interface
Start your default web browser and enter the IP address in the IP address bar of the embedded
web server of the M2. (The factory default IP address is http://192.168.0.190).
Login screen
Firsttheloginscreenwillbedisplayed.
ApasswordshouldbeenteredtogainaccesstothewebinterfaceoftheM2mixer.
Therearetwodifferentaccesslevels,administratorlevelanduserlevel.

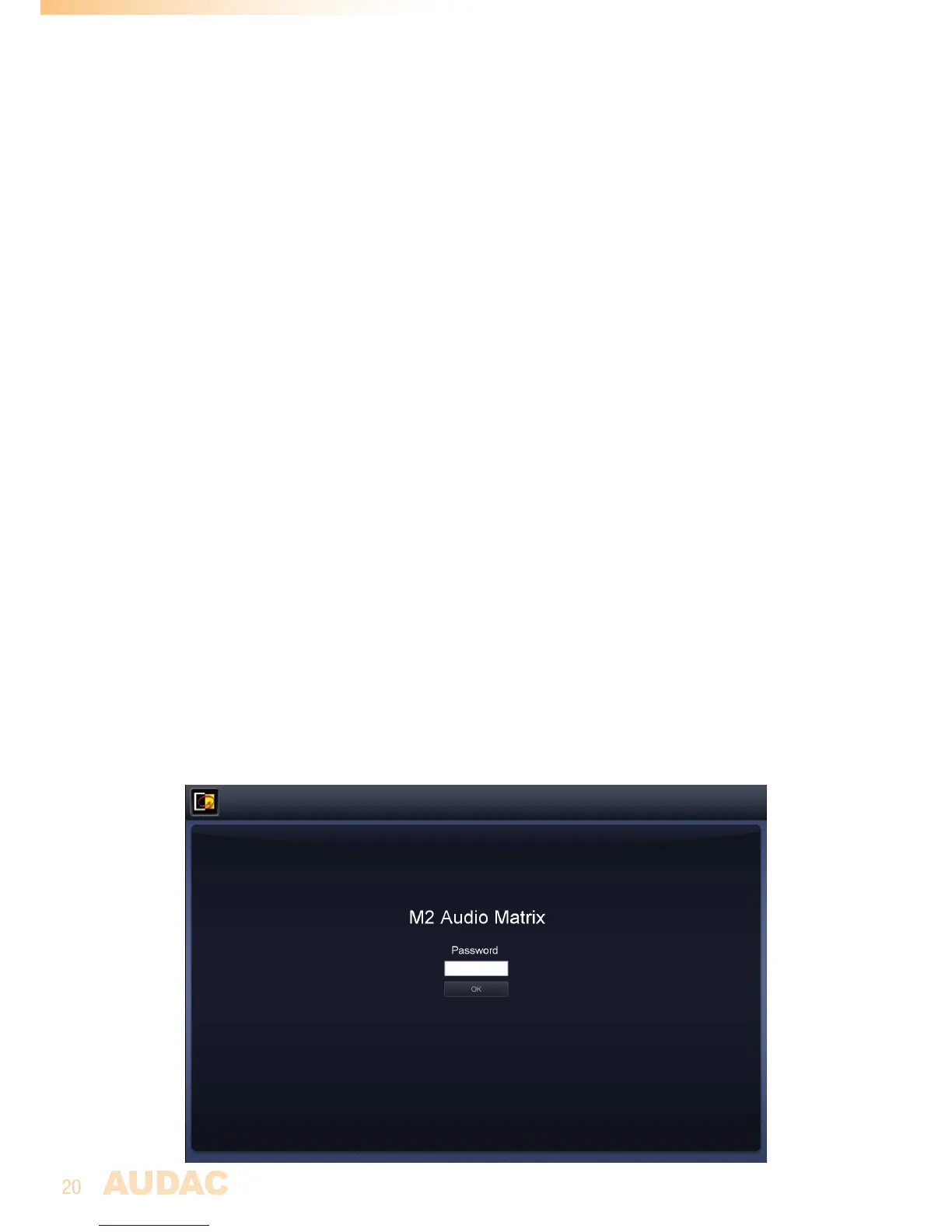

M2 Login

AUDAC M2 Specifications

General

Monitor out	1
Number of Euroblock input connectors	20
Number of Euroblock output connectors	24
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	20 W
DJ mixer	No
Rack capacity	19U
Rack mounting	Yes
Channels quantity	- channels
Digital sound processing	- bit
Equalizer bands quantity	5

Weight and Dimensions

Depth	350 mm
Width	482 mm
Height	132 mm
Weight	8850 g
