AUDAC M2 User Manual

23
Output settings
Afterclickingthe‘Settings’buttondisplayedbelowacertainzonename,thesettings
menuforthecorrespondingoutputwillbeshown.Thiswindowgivesanoverviewofall
thesettingswhichcanbeappliedtoonespecificoutput.

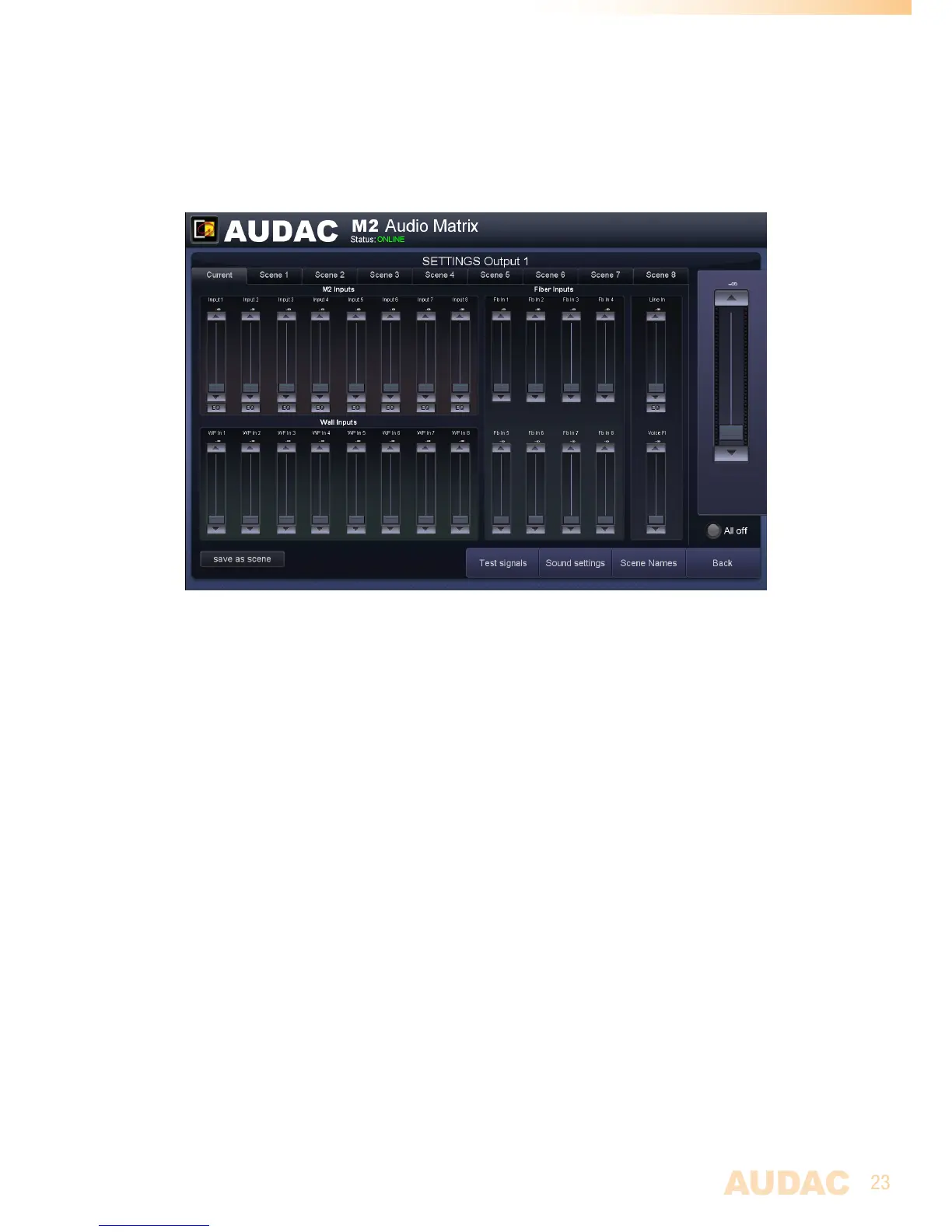

M2 Output Settings
Input mixing
AlltheinputsavailableontheM2aredisplayedinthiswindow.Everyinputisprovided
withafaderthatallowsyoutoadjustthemixingforalltheseinputs.Theadjustingisdone
bymovingthecorrespondingfadersupanddownorbyclickingthearrowbuttonsontop
andbottomofeveryfader(loweringorraisingthecurrentvaluewith1dB).
Direct inputs
Thefirsteightfadersshownundertheheader‘M2Inputs’arethedirectinputsavailable
onthebacksideoftheM2,whichareperformedusingTerminalBlockconnectors.An
EQbuttonisprovidedatthebottomofthesefaders.Byclickingthisbutton,theequalizer
settingswindowforthecorrespondinginputwillbeshown.Furtherdetailsaboutthe
equalizerfunctionaredescribedinalaterchapterofthismanual.

Wall panel inputs
BelowtheDirectinputs,eightfadersareshownundertheheader‘WallInputs’.These
faderscanbeusedtomixtheaudiosignalscomingfromthe(optional)wallinputunits,
whichmaybeconnectedbyRJ45connectorstothePeripheralInputsconnectorsatthe
backsideoftheM2.
Fiber inputs
Besidesthe‘DirectInputs’andthe‘WallInputs’,eightfadersaredisplayedunderthe
header‘FiberInputs’.Thesefaderscanbeusedtomixtheaudiosignalsconnectedto
theM2throughthe(optional)FiberInterconnectionModule(OPT2).Thiscanbeused
whenmultipleMatrixesand/orMixersarelinkedtogether,andinputsignalscomingfrom
differentunitshavetobemixed.

AUDAC M2 Specifications

General

Monitor out	1
Number of Euroblock input connectors	20
Number of Euroblock output connectors	24
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	20 W
DJ mixer	No
Rack capacity	19U
Rack mounting	Yes
Channels quantity	- channels
Digital sound processing	- bit
Equalizer bands quantity	5

Weight and Dimensions

Depth	350 mm
Width	482 mm
Height	132 mm
Weight	8850 g
