AUDAC M2 User Manual

57

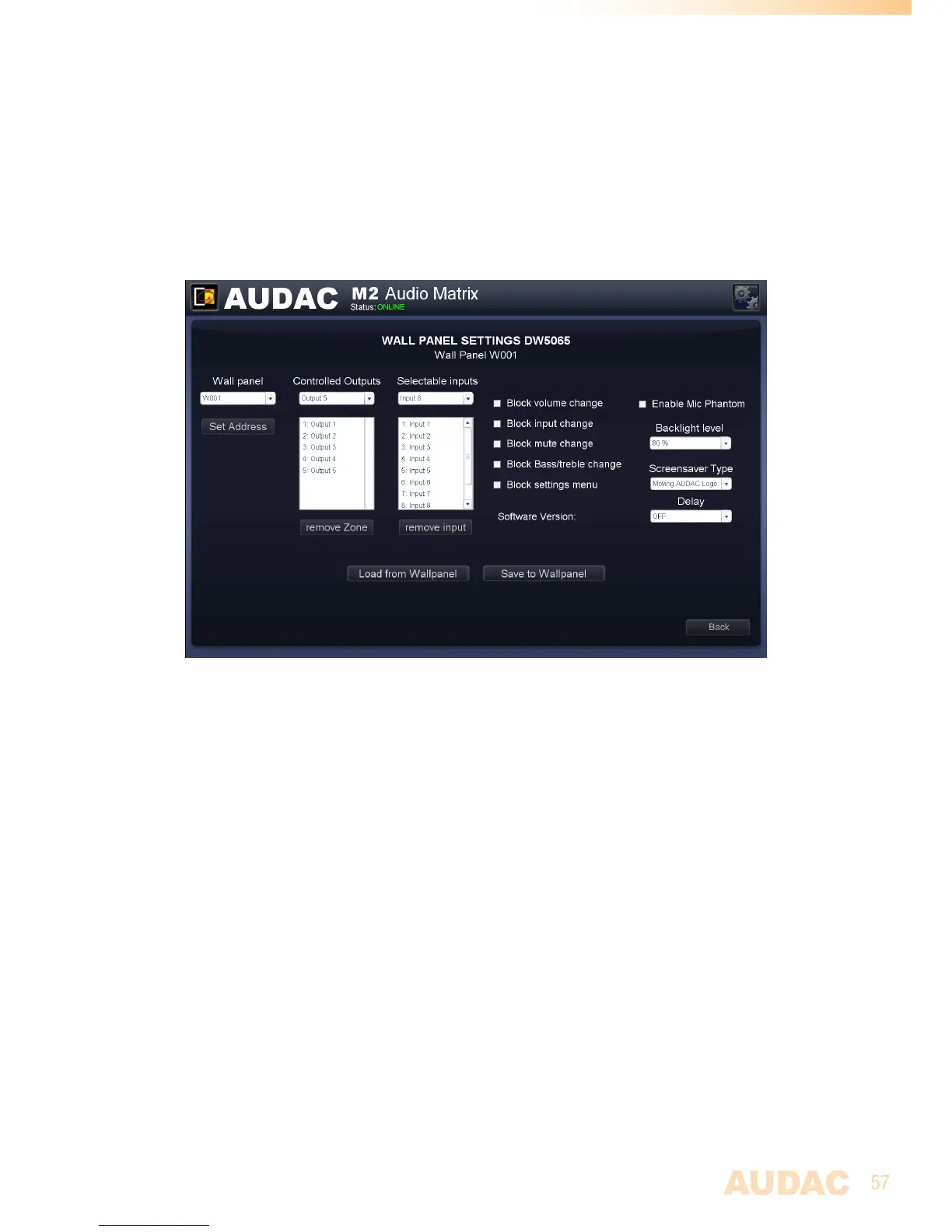

6)TheBacklightlevel,screensaverandscreensaverdelaycanbesetbymeansofthree
dropdownlists.ThissettingcanalsobechangedintheDW5065settingsmenu.(If‘Block
settingsmenu’isnotchecked)
7)Whenthesettingsaremade,pressthe‘SavetoWallpanel’buttonandthesettingswill
besendtotheselectedDW5065wallpanel.
Previouslymadesettingscanberetrievedfromthewallpanelbyclickingthe‘Loadfrom
Wallpanel’button.Bydoingsothesettingswhicharestoredinthewallpanelwillbe
displayedinthiswindow,makingitpossibletomakeanychangestothecurrentsettings.
DW5065 Settings
Maximum cable length for DW5065
ThemaximumcablelengthfortheDW5065wallpanelis300meters.Incasealonger
cablelengthisdesirable,themaximumcablelengthcanbeincreased(upto600meters)
byusingCP43/45ARPRepeaters.

AUDAC M2 Specifications

General

Monitor out	1
Number of Euroblock input connectors	20
Number of Euroblock output connectors	24
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	20 W
DJ mixer	No
Rack capacity	19U
Rack mounting	Yes
Channels quantity	- channels
Digital sound processing	- bit
Equalizer bands quantity	5

Weight and Dimensions

Depth	350 mm
Width	482 mm
Height	132 mm
Weight	8850 g
