If you press the PRINT button within the Sweep Panel, the display will
change to look something like this:
This panel allows you to print the sweep data four different ways:
.
Pressing the lower left soft key will print a high-resolution graph
of the sweep data.
.
Pressing the lower center soft key will print a screen dump of the
Sweep Panel, as it appeared before PRINT was pressed.
.
Pressing the lower right soft key will print the sweep data in
numerical, tabular form.
.
Pressing the PRINT button again will print both the
high-resolution graph and the tabular printout.
After pressing any of these buttons, you will be returned to the Sweep
Panel with the normal menu items.
Following are examples of the three types of printouts:

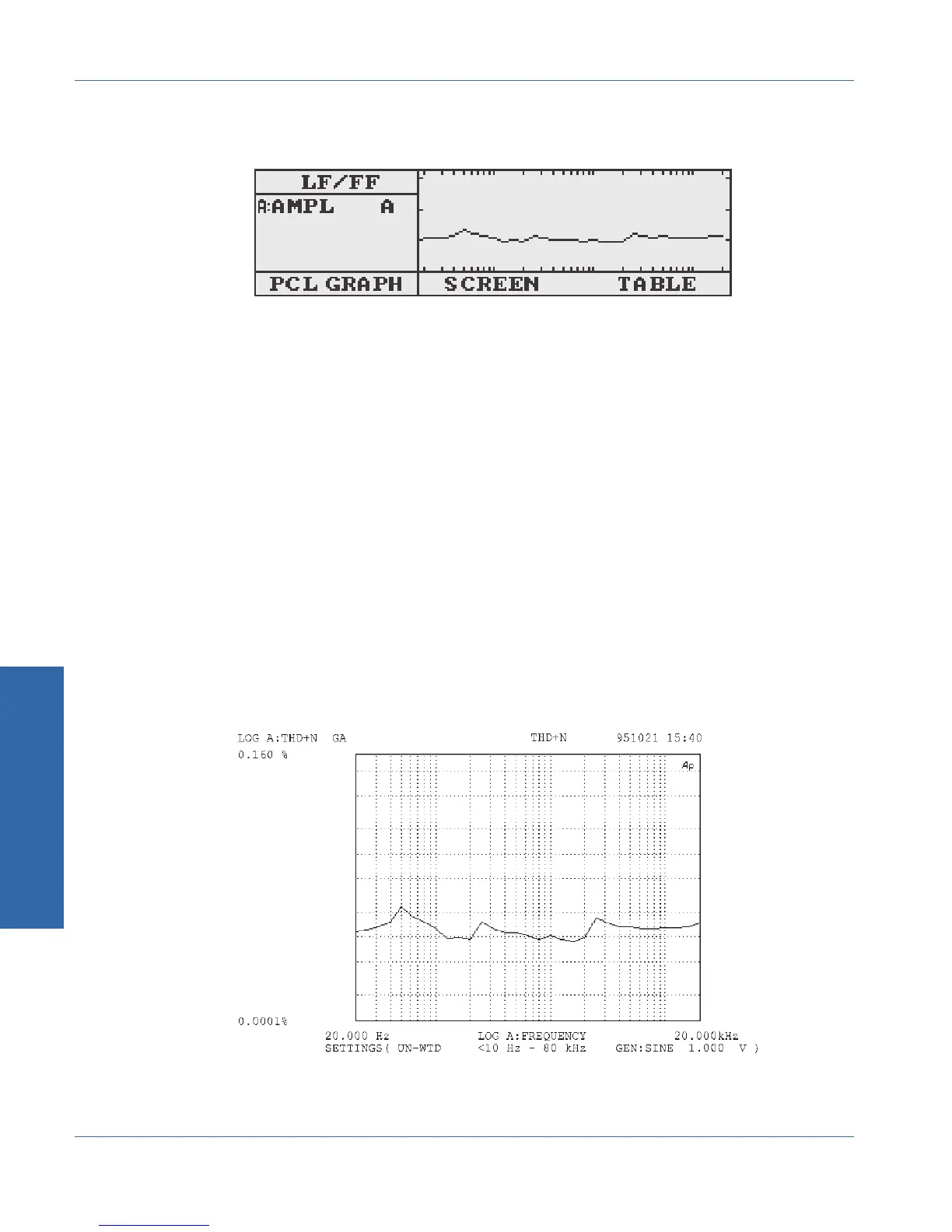

Figure 4-41. Print panel
Figure 4-42. High-resolution graph printoout
